Yamaha Outboard Parts - エレクトリカル 3 - F20BEHP (2010) | Flood Marine

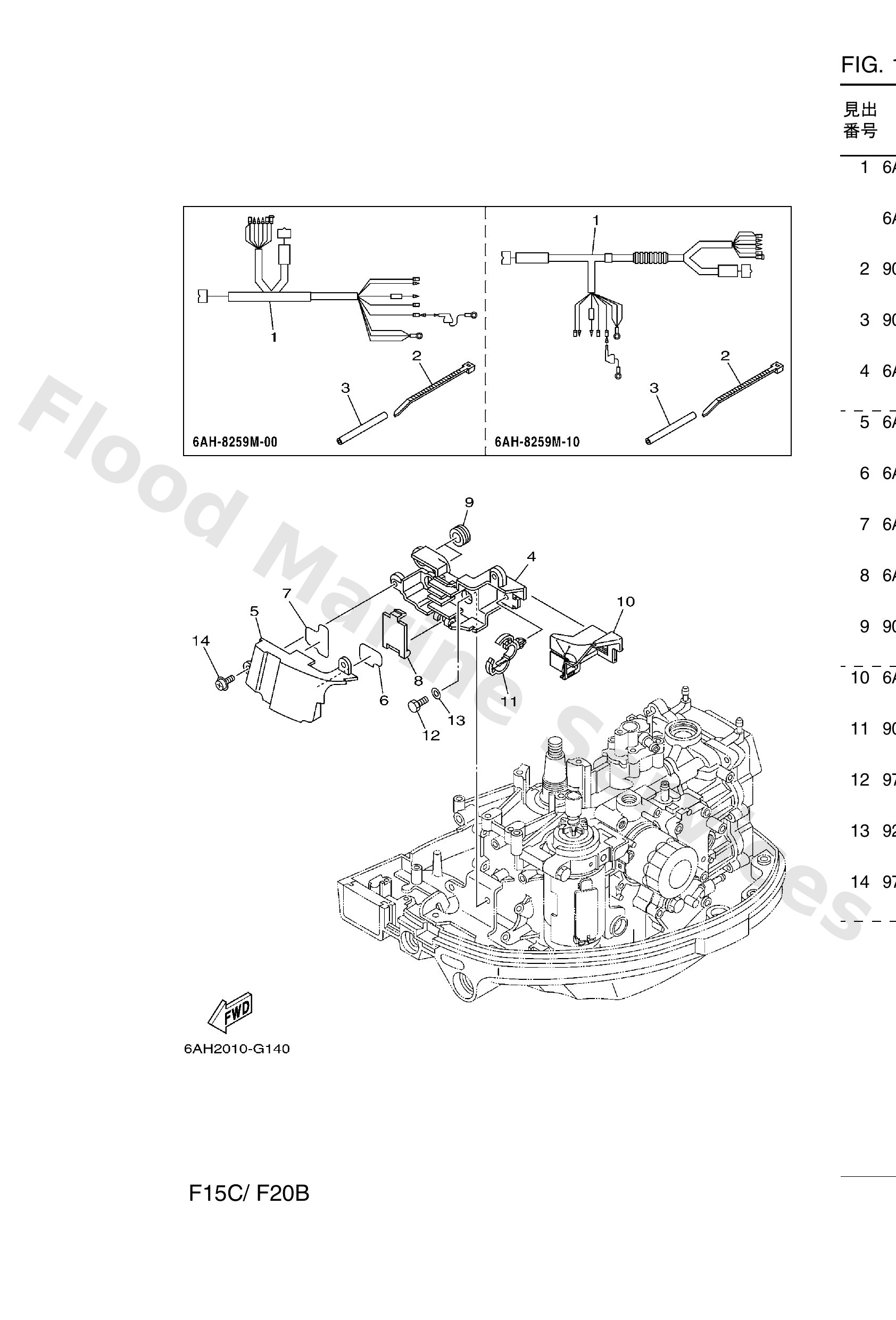

Diagram: エレクトリカル 3

Diagram

Parts List

Reference
Description
Price


1
6AH8259M10
Wire harness & extension wire
Loading…

↗
1
6AH8259M00
Wire harness & extension wire
Loading…

↗
2
9046513M18
Clamp
Loading…

↗
3
9044508029
Hose
Loading…

↗
4
6AH8552A00
Housing
Loading…

↗
5
6AH8552E00
Cover, case
Loading…

↗
6
6AH4273530
Protector
Loading…

↗
7
6AH4273540
Protector
Loading…

↗
8
6AH8553700
Cover
Loading…

↗
9
9048019368
Grommet(75v)
Loading…

↗
10
6AH8554700
Damper
Loading…

↗
11
9046420181
Clamp(4ap)
Loading…

↗
12
9709506014
Bolt(gj3)
Loading…

↗
13
9299506600
Washer, plain (646)
Loading…

↗
14
9798506214
Screw, with washer
Loading…

↗
