ME372STIP1 (2007)
A.C. GENERATOR ASSY

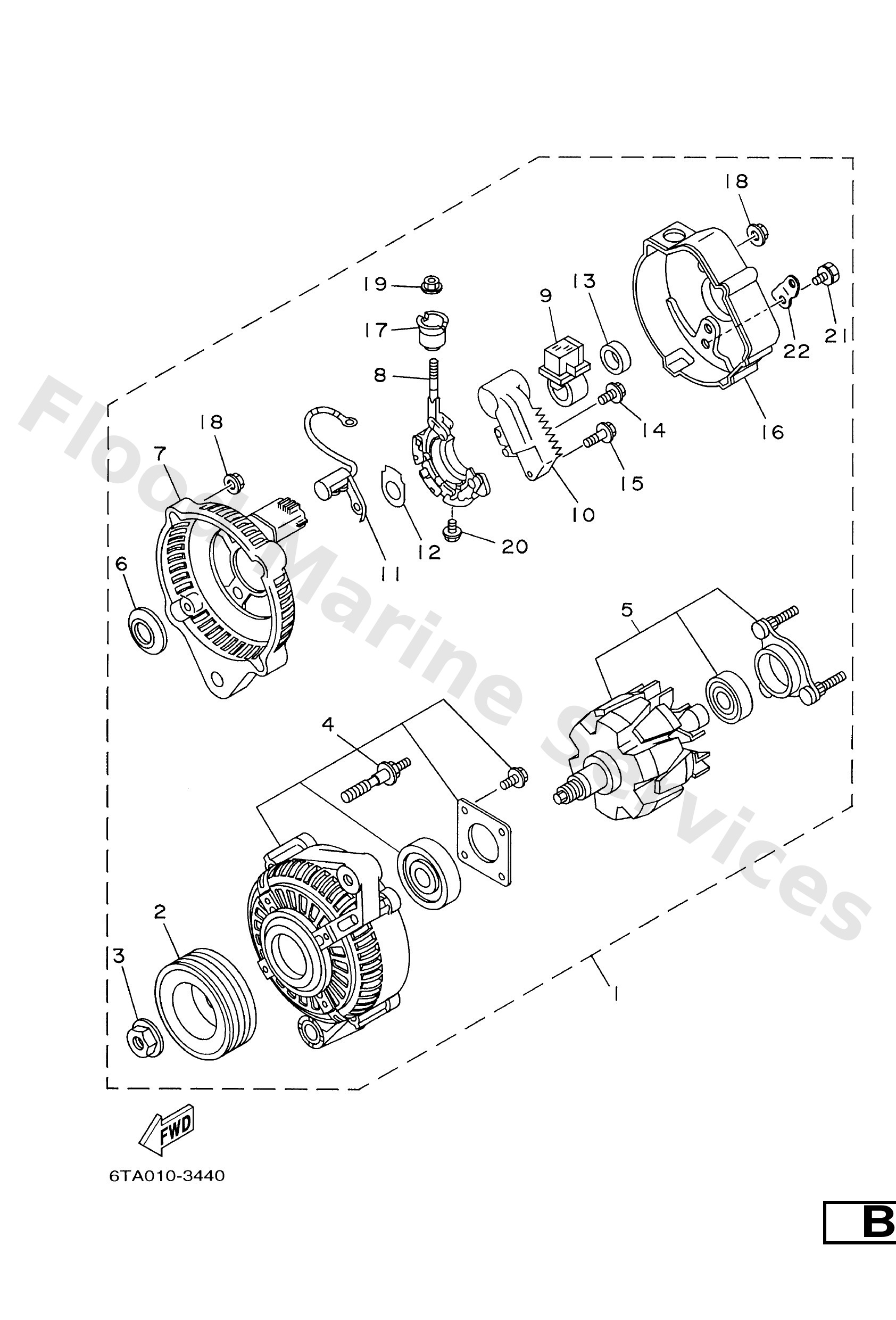

Diagram: A.C. GENERATOR ASSY
Parts List
Reference
Description
Price
1
6TC8160001
SEE FIG.38-1
A.c. generator assembly
Loading…
↗
2
6TC8160500
(021200-7320)
Pulley assembly.
Loading…
↗
3
6TA8160800
(949056-2520)
Pulley nut assembly.
Loading…
↗
4
6TA8163500
(021400-6030)
Flame, drive end
Loading…
↗
5
6TA8165000
(021200-5000)
Rotor assembly
Loading…
↗
6
6TA8167500
(021542-0160)
Washer, special
Loading…
↗
7
6TA8163600
(021501-6550)
Flame end, rear
Loading…
↗
8
6TA8160600
(021580-4510)
Holder assembly.
Loading…
↗
9
6TA8161300
(021620-2720)
Holder, brush
Loading…
↗
10
6TA8191000
(126000-1670)
Voltage regulator assembly
Loading…
↗
11
6TA8162G00
(021605-1970)
Bush, terminal 1
Loading…
↗
12
6TA8164200
(021626-0190)
O-ring
Loading…
↗
13
6TA8163800
(021626-0250)
Oil seal
Loading…
↗
14
3FV8164500
(949006-5460)
Screw
Loading…
↗
15
6TA8164600
(949007-5110)
Screw 2
Loading…
↗
16
6TA8160400
(021551-2260)
Cover assembly
Loading…
↗
17
6TA8162H00
(021605-2070)
Bush, terminal 2
Loading…
↗
18
6TA8165700
(949056-2481)
Nut, generator
Loading…
↗
19
6TA8162K00
(949056-3080)
Nut, terminal
Loading…
↗
20
6TA8164700
(949007-6280)
Screw 3
Loading…
↗
21
6TA8164800
(949006-6401)
Screw 4
Loading…
↗
22
6TA8165G00
(021602-5230)
Plte, terminal
Loading…
↗
