L250AETO (1994)
Allumage Electronique

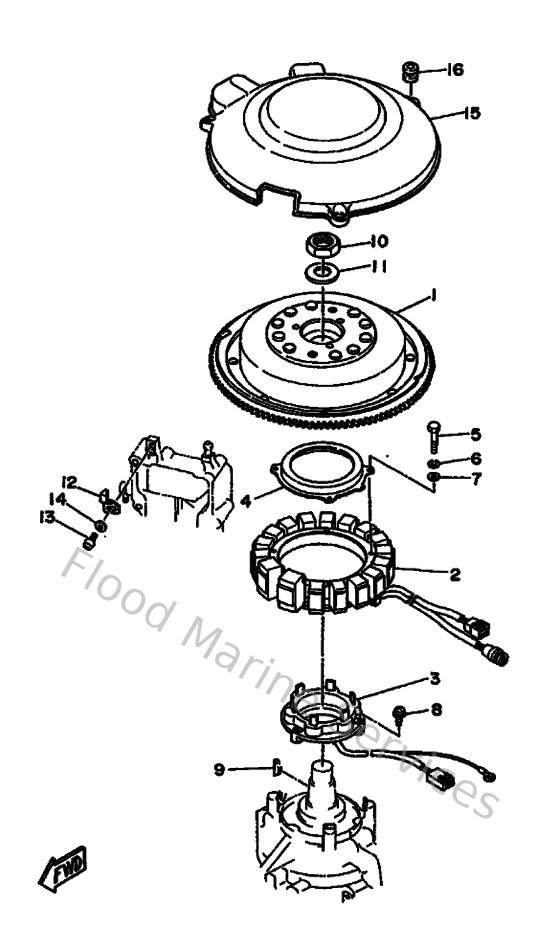

Diagram: Allumage Electronique
Parts List
Reference
Description
Price
1
61A855500000
Rotor assembly
Loading…
↗
2
61A855100200
Stator assembly
Loading…
↗
3
61A855800000
Coil, pulser
Loading…
↗
4
61A837210000
Cover
Loading…
↗
5
970140603500
Bolt(3rv)
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
979850533000
Screw, with washer(61b)
Loading…
↗
9
902800504900
Key, woodruff (12r)
Loading…
↗
10
9017024M2200
Nut(61a)
Loading…
↗
11
9020125M0200
Washer, plate(61a)
Loading…
↗
12
6E5813320000
Plate, timing
Loading…
↗
