Yamaha Outboard Parts - Alternate 1 - 20DEM (1993) | Flood Marine

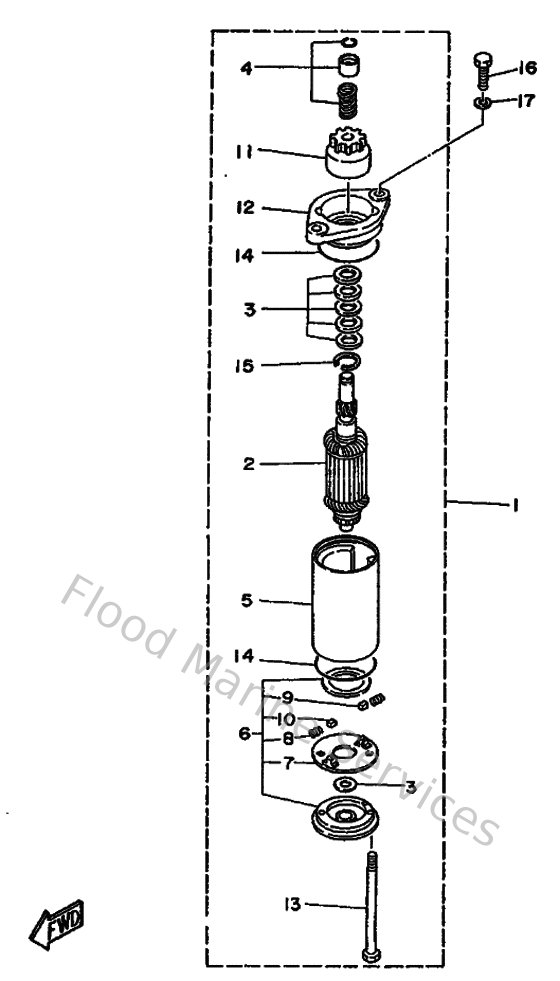

Diagram: Alternate 1

Diagram

Parts List

Reference
Description
Price


1
6L2818001100
Starting motor assembly
Loading…

↗
2
6L2818501100
Armature assembly
Loading…

↗
3
682818091000
Washer kit
Loading…

↗
4
6L2818331000
Ring, stop
Loading…

↗
6
6L2818201000
Rear bracket assembly
Loading…

↗
7
6L2818401000
Brush holder assembly
Loading…

↗
8
682818131000
Spring, brush
Loading…

↗
9
6L2818111000
Brush 1
Loading…

↗
10
6L2818121000
Brush 2
Loading…

↗
11
682818321000
Pinion assembly
Loading…

↗
13
682818261000
Bolt
Loading…

↗
14
682818471000
O-ring
Loading…

↗
15
682818341000
Ring
Loading…

↗
16
970130802500
Bolt (682)
Loading…

↗
17
929900860000
Washer, plain (663)
Loading…

↗
