250AETOXLX (1996)
Alternate 1

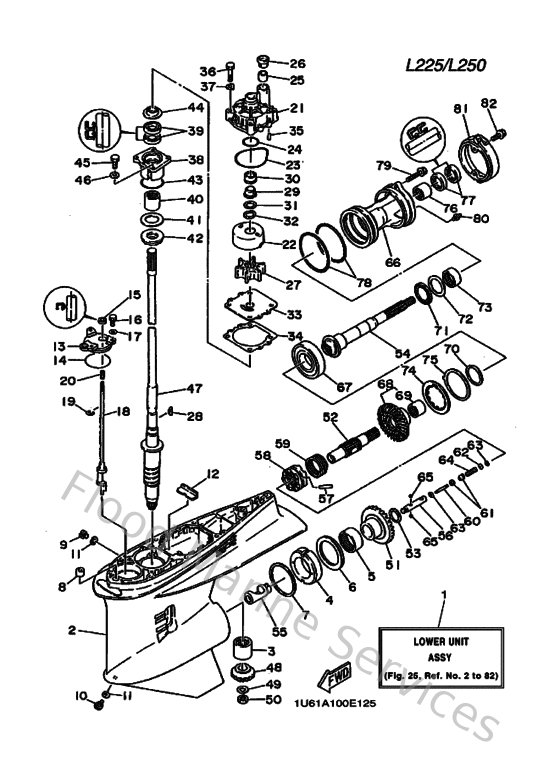

Diagram: Alternate 1
Parts List
Reference
Description
Price
3
93311832V200
Ball bearing
Loading…
↗
4
61B455380100
Spacer 1
Loading…
↗
5
93315660W300
Bearing, cylindrical(61b)
Loading…
↗
6
93341670V000
Bearing, thrust (61b)
Loading…
↗
7
61A455670030
Shim (t:0.30mm)
Loading…
↗
8
663443660000
Damper, water seal 2
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
688453410000
Plug, drain
Loading…
↗
11
904300802000
Gasket
Loading…
↗
12
61A453760094
Guide, seal damper
Loading…
↗
13
61A453210100
Plate
Loading…
↗
14
932106575200
O-ring(2hj)
Loading…
↗
15
931060901400
Oil seal
Loading…
↗
16
970950602000
Bolt(7u8)
Loading…
↗
17
9020906M0400
Washer
Loading…
↗
19
990010860000
Circlip(2r6)
Loading…
↗
20
9050111M1000
Spring, compression (663)
Loading…
↗
21
61A443110000
Housing, water pump
Loading…
↗
22
61A443220000
Insert, cartridge
Loading…
↗
23
9321086M3800
O-ring (6e5)
Loading…
↗
24
9321037M6700
O-ring (6g8)
Loading…
↗
25
6E5443650000
Damper, water seal 1
Loading…
↗
26
6E5443120000
Cover, water pump housing
Loading…
↗
27
6E5443520100
Impeller
Loading…
↗
28
9028004M0500
Key, woodruff (6e5)
Loading…
↗
29
61A455380000
Spacer, 1
Loading…
↗
30
61A455270000
Collar, drive shaft
Loading…
↗
31
9020122M0100
Washer, plate(61a)
Loading…
↗
32
9020622M1900
Washer, wave(61a)
Loading…
↗
33
6G5443230000
Outer plate, cartridge
Loading…
↗
34
6E544315A000
Gasket,water pump
Loading…
↗
35
936061201900
Pin, dowel (614)
Loading…
↗
36
973950804500
Bolt, hexagon
Loading…
↗
37
9020908M0200
Washer, plate (688)
Loading…
↗
38
61A45331009S
Housing, bearing
Loading…
↗
39
9310128M1600
Oil seal (6e5)
Loading…
↗
40
93315430V500
Bearing, cylindrical(6k0)
Loading…
↗
41
61A455870030
Shim (t:0.30mm)
Loading…
↗
42
933419302000
Bearing
Loading…
↗
43
932105453400
O-ring (70e)
Loading…
↗
44
6E5453440000
Cover, oil seal
Loading…
↗
45
970950802500
Bolt (62g)
Loading…
↗
46
929900860000
Washer, plain (663)
Loading…
↗
47
61A455012000
Drive shaft comp.
Loading…
↗
48
61A455510300
Pinion
Loading…
↗
49
9020116M0000
Washer, plate(6t5)
Loading…
↗
50
9017016M1900
Nut(6t5)
Loading…
↗
53
9020129M0100
Washer, plate(61b)
Loading…
↗
54
61B456112000
Shaft, propeller
Loading…
↗
55
61B456410100
Shifter
Loading…
↗
56
61A456340100
Slide, shift
Loading…
↗
57
61A456320000
Pin, cross
Loading…
↗
58
61A456310200
Clutch, dog
Loading…
↗
59
61A456330000
Ring, cross pin
Loading…
↗
60
6H1456680000
Shaft, free 1
Loading…
↗
61
61A456350000
Plunger, shift
Loading…
↗
62
9020102M0000
Washer, plate(61a)
Loading…
↗
63
9018302M0300
Nut, spring (6h1)
Loading…
↗
64
9050110M7700
Spring, compression(61a)
Loading…
↗
65
935010401100
Ball
Loading…
↗
66
61B453320194
Housing, bearing
Loading…
↗
67
93332000W200
Bearing(61b)
Loading…
↗
68
61B455700300
Gear
Loading…
↗
69
93315430U800
Bearing
Loading…
↗
70
61A455770030
Shim (t:0.30mm)
Loading…
↗
71
93341440U500
Bearing, thrust (6k0)
Loading…
↗
72
6K1455786000
Shim (t:0.50mm)
Loading…
↗
73
93315440V600
Bearing, cylindrical(6k0)
Loading…
↗
75
61B453830000
Washer, claw
Loading…
↗
76
933154306100
Bearing
Loading…
↗
77
9310130M1700
Oil seal (6e5)
Loading…
↗
78
932110438400
O-ring (705)
Loading…
↗
79
9010508M4800
Bolt, Flange
Loading…
↗
80
9370009M0000
Nipple, grease(6t4)
Loading…
↗
81
61A45361015B
Cap, lower casing
Loading…
↗
82
975950852000
Bolt(6td)
Loading…
↗
