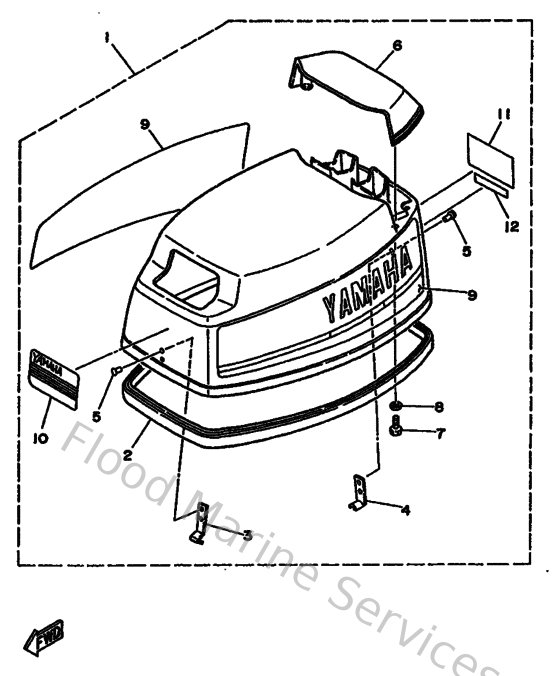

Diagram: Alternate 1

Diagram

Parts List

Reference
Description
Price


2
6L2426150000
Seal
Loading…

↗
3
6G1426517000
Hook
Loading…

↗
4
6G1426470000
Holder, clamp band
Loading…

↗
5
9026604M0000
Rivet 2 (662)
Loading…

↗
7
973130601600
Bolt, hexagon deep recess
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
10
689426770100
Graphic, Front
Loading…

↗
