Yamaha Outboard Parts - Alternate 1 - 9.9DMH (1992) | Flood Marine

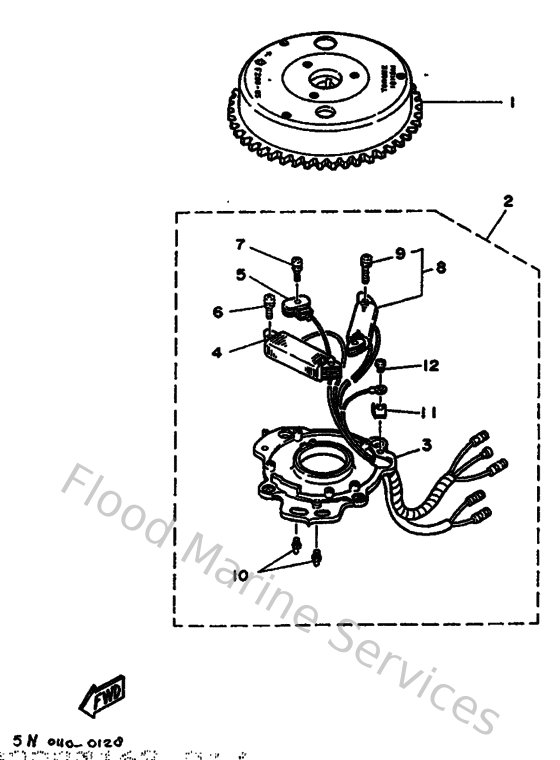

Diagram: Alternate 1

Diagram

Parts List

Reference
Description
Price


1
6E785550A000
Rotor assembly
Loading…

↗
3
6E7855097000
Base, Magneto
Loading…

↗
4
6E7855207000
Coil assembly
Loading…

↗
5
6E7855807000
Pulser coil ass'y
Loading…

↗
6
901590503900
Screw panhead (695)
Loading…

↗
7
985070501600
Screw, pan head(jj6)
Loading…

↗
8
6E781303A000
Lighting coil ass'y
Loading…

↗
10
663855180000
Joint, ball
Loading…

↗
12
985010400600
Screw, pan head
Loading…

↗
