F9.9BMH (1996)
Alternate 1 (FOR CANADA)

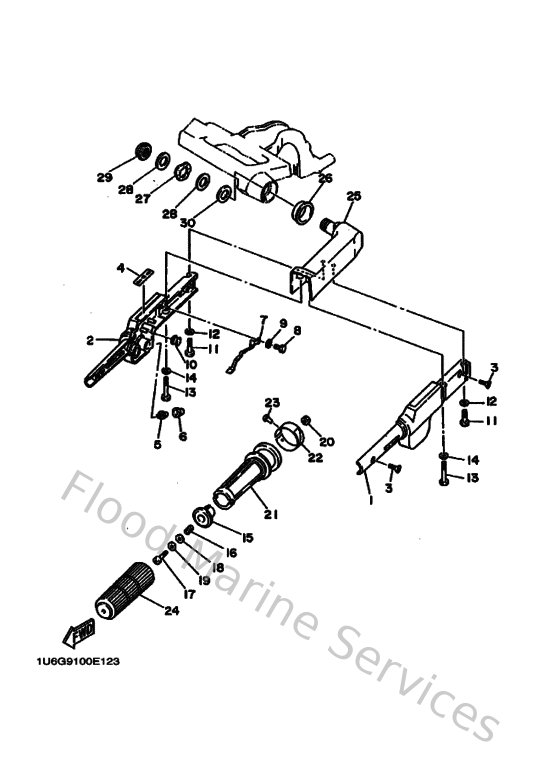

Diagram: Alternate 1 (FOR CANADA)
Parts List
Reference
Description
Price
2
6G842112024D
Handle Steering
Loading…
↗
3
987800501600
Ybs53-516 screw,flat head
Loading…
↗
5
9370006M0300
Nipple, grease(6a1)
Loading…
↗
6
663451190000
Cap, grease nipple
Loading…
↗
8
970950501200
Bolt, hexagon
Loading…
↗
9
929900560000
Washer, plain (646)
Loading…
↗
10
6H4427250000
Grommet 2
Loading…
↗
11
9010106M2700
Bolt
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
970950604000
Bolt (682)
Loading…
↗
15
6G8421260194
Friction, steering handle grip
Loading…
↗
16
9050123M4200
Spring, compression (6g8)
Loading…
↗
17
978850603000
Screw, pan head(6e0)
Loading…
↗
18
902010604900
Washer, plate(j41)
Loading…
↗
19
902020600700
Washer plate 626441880000
Loading…
↗
20
953800670000
Nut
Loading…
↗
21
6G8421190000
Grip, steering handle
Loading…
↗
23
9026902M0900
Rivet(6l5)
Loading…
↗
24
6G8421770000
Rubber, handle
Loading…
↗
25
6G842113028D
Handle, steering 3
Loading…
↗
26
9038633M5600
Bushing (6g8)
Loading…
↗
27
9020620M1400
Washer, wave (6g8)
Loading…
↗
28
9020120M0000
Washer, plate(6g8)
Loading…
↗
29
9018520M0300
Nut, self-locking(6g8)
Loading…
↗
30
9020220M3300
Washer (6g8)
Loading…
↗
