Yamaha Outboard Parts - Alternate 10 - 40HM (1992) | Flood Marine

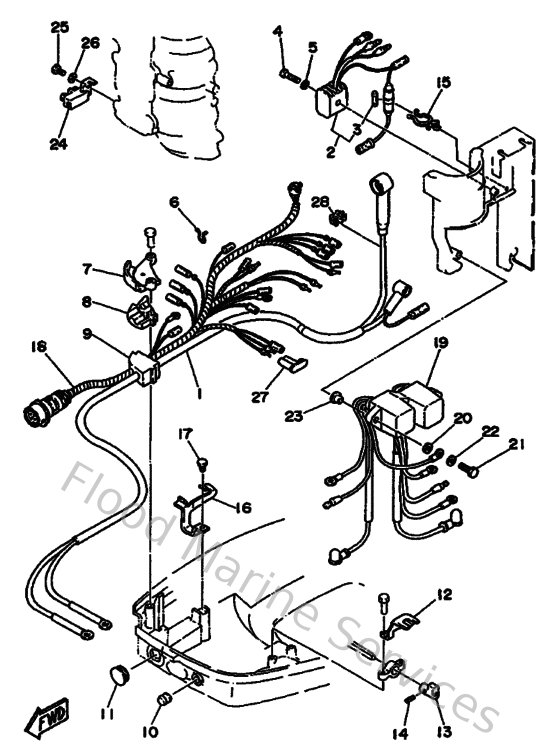

Diagram: Alternate 10

Diagram

Parts List

Reference
Description
Price


1
6H4821050100
Battery cable
Loading…

↗
2
6G1819706100
Rectifier assembly
Loading…

↗
3
1E6821510000
Fuse (10a)
Loading…

↗
4
985030502500
Screw, panhead (a93)
Loading…

↗
5
929900560000
Washer, plain (646)
Loading…

↗
6
904651814700
Clamp
Loading…

↗
7
6H4485311094
Bracket, remote control 1
Loading…

↗
8
6H4485321194
Bracket, remote control 2
Loading…

↗
9
6H4427242000
Grommet
Loading…

↗
10
6H4427250000
Grommet 2
Loading…

↗
11
676427260000
Grommet 3
Loading…

↗
12
6H4825540000
Stay, Neutral Switch
Loading…

↗
13
6H4441730100
Lever Shift Control
Loading…

↗
14
916903002000
Pin, spring (6h4)
Loading…

↗
15
9046415M2700
Clamp(6h4)
Loading…

↗
16
6H4825880000
Plate
Loading…

↗
17
970130601200
Bolt(gh1)
Loading…

↗
18
6H4825902200
Wire harness assembly
Loading…

↗
19
6H5819500000
Relay Assembly
Loading…

↗
20
929900620000
Ybs66-6 washer, plain
Loading…

↗
21
9010106M2700
Bolt
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
9038706M0500
Collar(6h4)
Loading…

↗
25
970800601200
Bolt(gh1)
Loading…

↗
27
6E5825820000
Cap 1
Loading…

↗
28
9046407M2000
Clamp(6h0)
Loading…

↗
