Yamaha Outboard Parts - Alternate 10 - 50DEMTO (1993) | Flood Marine

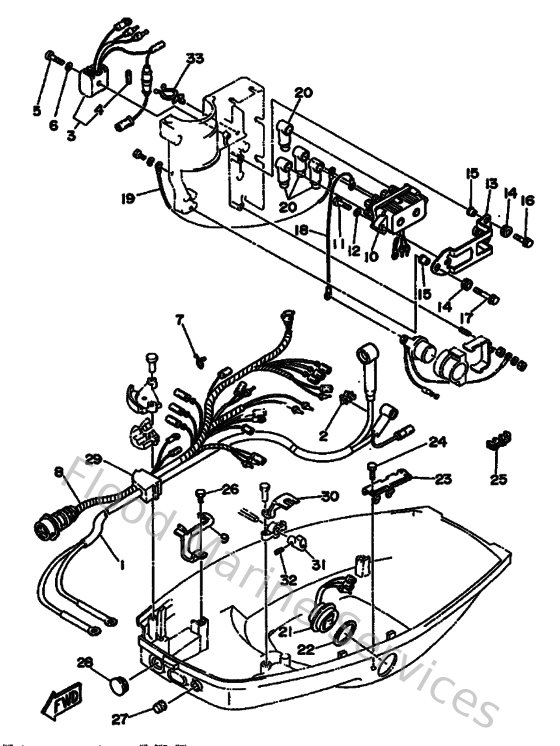

Diagram: Alternate 10

Diagram

Parts List

Reference
Description
Price


1
6H4821050100
Battery cable
Loading…

↗
2
9046407M2000
Clamp(6h0)
Loading…

↗
3
6G1819706200
Rectifier assembly
Loading…

↗
4
6G1821510000
Fuse (10a)
Loading…

↗
5
985030502500
Screw, panhead (a93)
Loading…

↗
6
929900560000
Washer, plain (646)
Loading…

↗
7
904651814700
Clamp
Loading…

↗
8
6H4825902200
Wire harness assembly
Loading…

↗
9
6H4825880000
Plate
Loading…

↗
10
6H1819500000
Relay aasy
Loading…

↗
11
9010106M2700
Bolt
Loading…

↗
12
929900660000
Washer, plain (646)
Loading…

↗
13
6H4819452000
Plate, switch fitting
Loading…

↗
14
9048013M2400
Grommet (6e9)
Loading…

↗
15
9038706M0500
Collar(6h4)
Loading…

↗
16
9010506M1500
Bolt (6e0)
Loading…

↗
17
9010506M1600
Bolt (6e0)
Loading…

↗
18
6H5819490000
Wire, lead
Loading…

↗
19
61A819490000
Wire, lead
Loading…

↗
20
6G5821191000
Cover, lead wire
Loading…

↗
21
6H1825630000
Trim & tilt switch assembly
Loading…

↗
22
6E5825870000
Gasket
Loading…

↗
23
6E5836140100
Bracket
Loading…

↗
24
970950601600
Bolt, hexagon deep recess
Loading…

↗
25
9046407M0500
Clamp (6g5)
Loading…

↗
26
970130601200
Bolt(gh1)
Loading…

↗
27
6H4427250000
Grommet 2
Loading…

↗
28
676427260000
Grommet 3
Loading…

↗
29
6H4427242000
Grommet
Loading…

↗
30
6H4825540000
Stay, Neutral Switch
Loading…

↗
31
6H4441730100
Lever Shift Control
Loading…

↗
32
916903002000
Pin, spring (6h4)
Loading…

↗
33
9046415M2700
Clamp(6h4)
Loading…

↗
