Yamaha Outboard Parts - Alternate 2 - 25JETO (1993) | Flood Marine

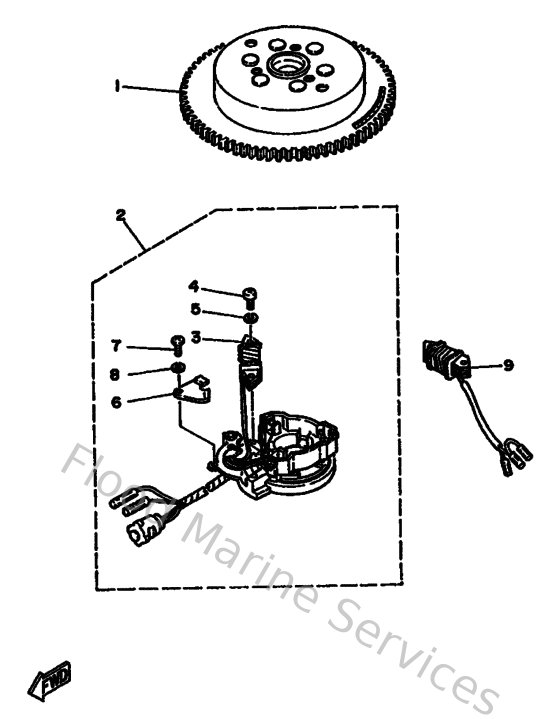

Diagram: Alternate 2

Diagram

Parts List

Reference
Description
Price


1
6J885550A000
Rotor Assembly
Loading…

↗
2
6J885510A000
Stator Assembly
Loading…

↗
3
6J8855200000
Coil Charge
Loading…

↗
4
978020602000
Screw pan head
Loading…

↗
5
929950610000
Washer(6a1)
Loading…

↗
6
6H4855480000
Clamp, cord
Loading…

↗
7
985010500800
Screw, pan head (7g3)
Loading…

↗
8
929900510000
Ybs67-5 washer, spring
Loading…

↗
9
6H485533A000
Coil, Lighting
Loading…

↗
