40HM (1989)
Alternate 2

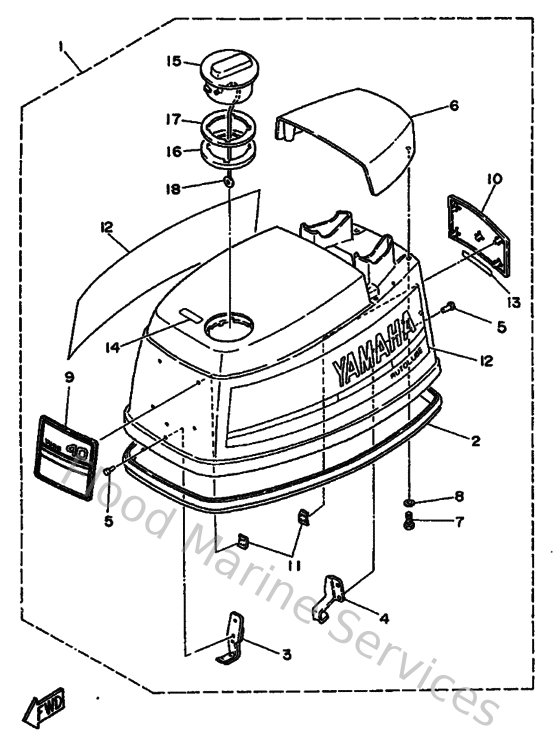

Diagram: Alternate 2
Parts List
Reference
Description
Price
2
6H4426150000
Seal
Loading…
↗
3
6H4426510000
Hook 1
Loading…
↗
4
6H4426520000
Hook 2
Loading…
↗
5
9026604M0100
Rivet (689)
Loading…
↗
7
973130601600
Bolt, hexagon deep recess
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
10
6H4426870000
Emblem, Rear
Loading…
↗
11
9018305M0100
Nut, spring (6a0)
Loading…
↗
15
6H12177H0000
Disk cap 2
Loading…
↗
16
6H3217320000
Seal 1
Loading…
↗
17
6H3217350000
Seal 2
Loading…
↗
18
6H1426940000
Band
Loading…
↗
