40HM (1993)
Alternate 2

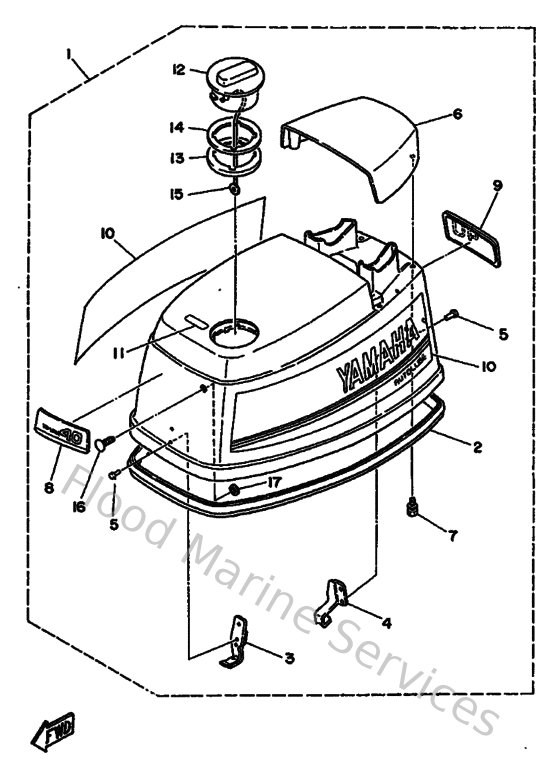

Diagram: Alternate 2
Parts List
Reference
Description
Price
2
6H4426150000
Seal
Loading…
↗
3
6H4426510000
Hook 1
Loading…
↗
4
6H4426520000
Hook 2
Loading…
↗
5
9026604M0100
Rivet (689)
Loading…
↗
7
9011906M9900
Bolt, with washer(6h4)
Loading…
↗
9
6H4426871000
Emblem, Rear
Loading…
↗
12
6H12177H0200
Disk cap 2
Loading…
↗
13
6H3217320000
Seal 1
Loading…
↗
14
6H3217350000
Seal 2
Loading…
↗
15
6H1426940000
Band
Loading…
↗
16
9033805M1200
Plug(6h4)
Loading…
↗
17
9018305M0600
Nut, spring(6h4)
Loading…
↗
