25NMHO (1996)
Alternate 2 (20DE(R)0/25NE(R)0)

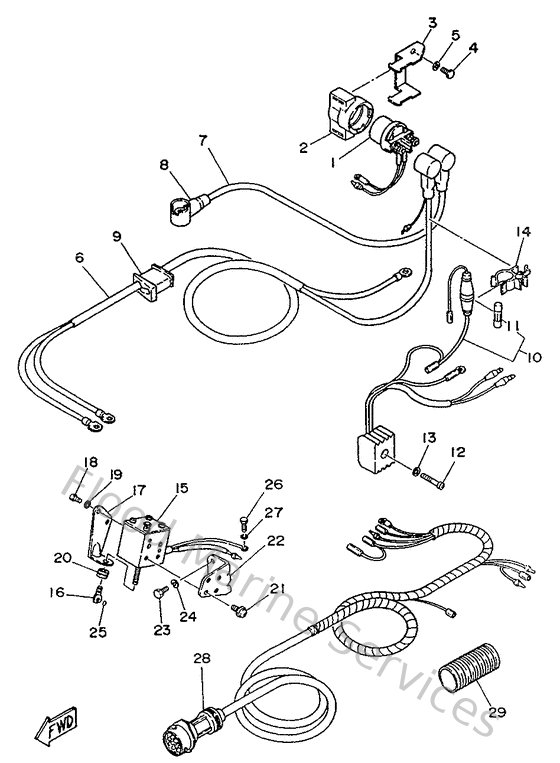

Diagram: Alternate 2 (20DE(R)0/25NE(R)0)
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6L2819450000
Plate, switch fitting
Loading…
↗
6
6G1821050100
Battery cable
Loading…
↗
7
6G1821170000
Wire, lead
Loading…
↗
8
682821190100
Cover, lead wire
Loading…
↗
9
6L2427255000
Grommet
Loading…
↗
10
6G1819706200
Rectifier assembly
Loading…
↗
11
6G1821510000
Fuse (10a)
Loading…
↗
14
6G5821520000
Holder, fuse
Loading…
↗
15
6L2861110000
Coil, solenoid
Loading…
↗
16
682861170000
Hook, wire pull
Loading…
↗
17
6L2861150000
Holder, solenoid
Loading…
↗
22
6L2861120000
Stay, solenoid
Loading…
↗
28
6L2825900000
Wire harness assembly
Loading…
↗
29
6K3835570000
Tube
Loading…
↗
