Yamaha Outboard Parts - Alternate 2 (25JEO/30DEO) - 25JETO (1996) | Flood Marine

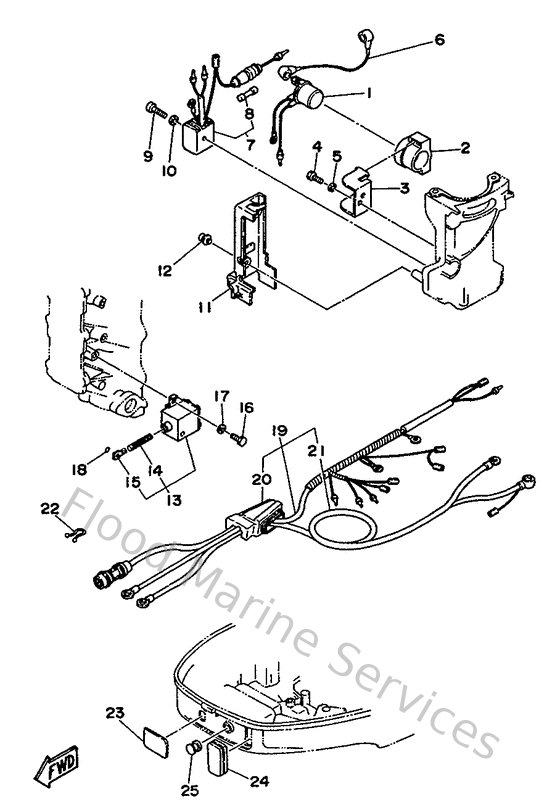

Diagram: Alternate 2 (25JEO/30DEO)

Diagram

Parts List

Reference
Description
Price


1
6G1819411000
Starter relay
Loading…

↗
2
6G1819520000
Holder, relay
Loading…

↗
3
6J8819450000
Plate, switch fitting
Loading…

↗
6
6F5821170000
Wire, lead
Loading…

↗
7
6G1819706200
Rectifier assembly
Loading…

↗
8
6G1821510000
Fuse (10a)
Loading…

↗
11
6J8819160000
Cover, Terminal
Loading…

↗
13
6J8861100000
Solenoid
Loading…

↗
14
6J8861160000
Wire, pull
Loading…

↗
15
682861170000
Hook, wire pull
Loading…

↗
19
6J8825800000
Wire harness assembly 2
Loading…

↗
20
6J8427245000
Grommet
Loading…

↗
21
689821051300
Battery cable
Loading…

↗
23
6J8427262000
Grommet
Loading…

↗
24
6J8427261000
Grommet
Loading…

↗
25
6H4427250000
Grommet 2
Loading…

↗
