30GMH (1998)
Alternate 2 (ELECTRICAL:25VWC/30GW(C))

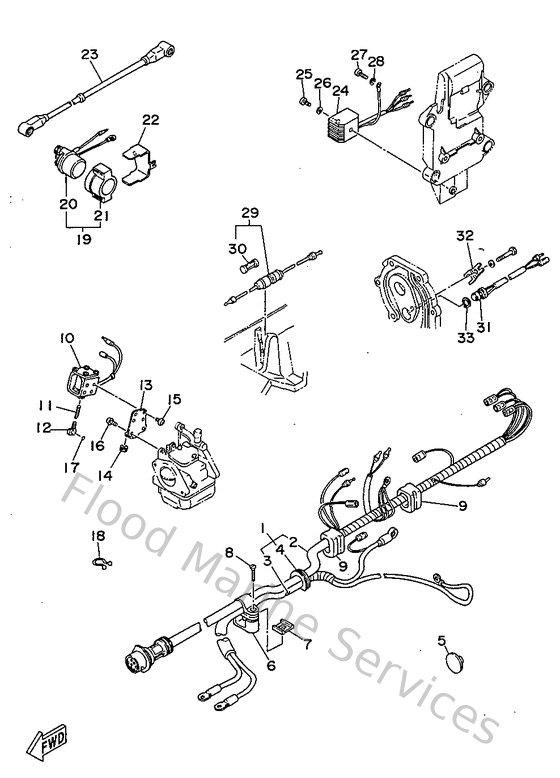

Diagram: Alternate 2 (ELECTRICAL:25VWC/30GW(C))
Parts List
Reference
Description
Price
1
61T825800000
Wire harness assembly 2
Loading…
↗
2
61T825900000
Wire harness assembly
Loading…
↗
3
695821051300
Battery cable
Loading…
↗
4
689427245000
Grommet
Loading…
↗
5
904801716500
Grommet(663)
Loading…
↗
6
689825941000
Clamp
Loading…
↗
7
682425250000
Plate, friction 1
Loading…
↗
8
9016106M0000
Screw, tapping(6e7)
Loading…
↗
9
9048017M0800
Grommet (689)
Loading…
↗
10
61T861110000
Coil, solenoid
Loading…
↗
11
682861160000
Wire, pull
Loading…
↗
12
682861170000
Hook, wire pull
Loading…
↗
13
61T861120000
Stay, solenoid
Loading…
↗
14
904801015500
Grommet(664)
Loading…
↗
15
985800400600
Screw, pan head (7h3)
Loading…
↗
16
985800501200
Screw,pan head (646)
Loading…
↗
17
932100326100
O-ring (663)
Loading…
↗
18
904651814700
Clamp
Loading…
↗
19
6G1819411000
Starter relay
Loading…
↗
21
6G1819520000
Holder, relay
Loading…
↗
22
61T819450000
Plate, Switch Fitting
Loading…
↗
23
689825310200
Wire, lead
Loading…
↗
24
664819706100
Rectifier assembly
Loading…
↗
25
978800502500
Screw, panhead (a93)
Loading…
↗
26
929900560000
Washer, plain (646)
Loading…
↗
27
970950601200
Bolt(gh1)
Loading…
↗
28
929950610000
Washer(6a1)
Loading…
↗
29
682821501000
Fuse holder assembly
Loading…
↗
30
682821510000
Fuse
Loading…
↗
31
61T825600000
Thermo switch assembly
Loading…
↗
32
61T825880000
Plate
Loading…
↗
33
990091750000
Circlip(24h)
Loading…
↗
