6CEM (1990)
Alternate 3

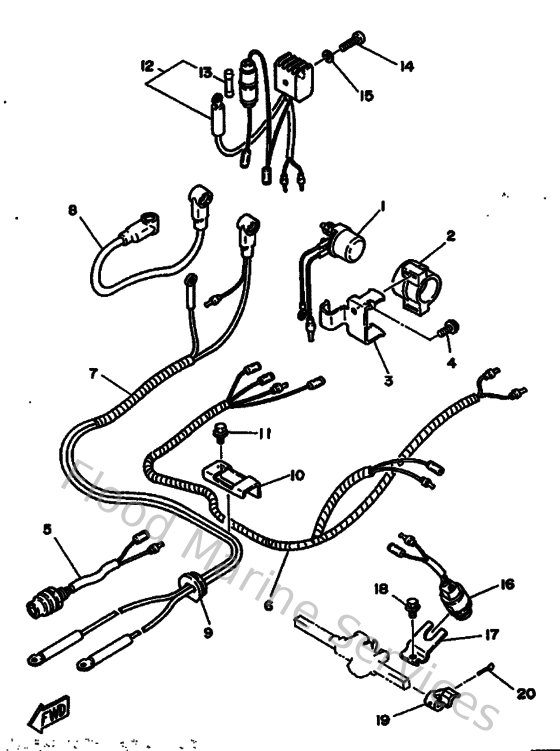

Diagram: Alternate 3
Parts List
Reference
Description
Price
1
6G1819411000
Starter relay
Loading…
↗
2
6G1819520000
Holder, relay
Loading…
↗
3
6G1819450000
Plate, Switch Fitting
Loading…
↗
4
9010506M1400
Bolt (6e0)
Loading…
↗
5
689818700000
Starting switch assembly
Loading…
↗
6
6G1825900000
Wire Harness assembly
Loading…
↗
7
6E7821051200
Battery cable
Loading…
↗
8
6G1821170000
Wire, lead
Loading…
↗
9
682427244000
Grommet 1
Loading…
↗
10
6G1823620000
Clamp Cord
Loading…
↗
11
9010506M2300
Bolt (6g1)
Loading…
↗
12
6G1819706200
Rectifier assembly
Loading…
↗
13
6G1821510000
Fuse (10a)
Loading…
↗
14
985030502500
Screw, panhead (a93)
Loading…
↗
15
929900560000
Washer, plain (646)
Loading…
↗
16
688825401200
Neutral switch assembly
Loading…
↗
17
6G1825540000
Stay Neutral Switch
Loading…
↗
19
6G1441250000
Lever Shift Rod 2
Loading…
↗
20
914902502000
Pin, cotter
