Yamaha Outboard Parts - Alternate 4 - 40HM (1990) | Flood Marine

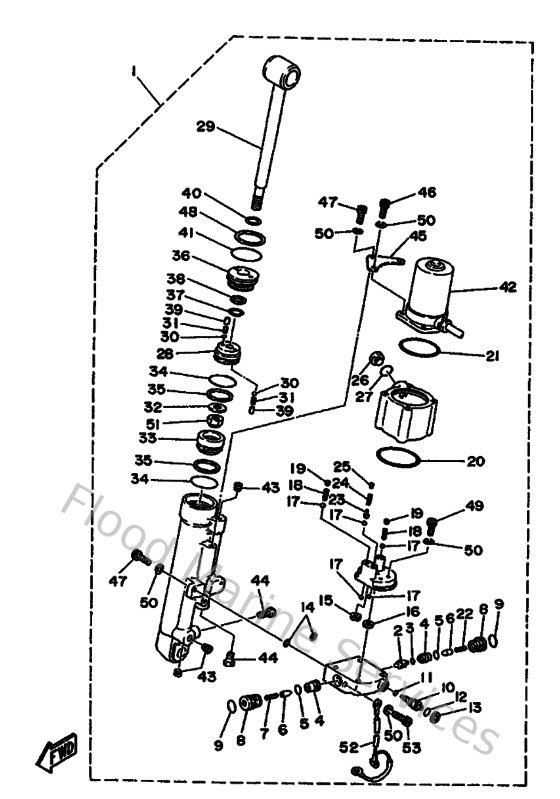

Diagram: Alternate 4

Diagram

Parts List

Reference
Description
Price


2
6H5438410000
Piston, Shuttle
Loading…

↗
3
6H5438610000
O-Ring
Loading…

↗
4
6H5438910000
Bushing 1
Loading…

↗
5
6H5438620000
O-Ring
Loading…

↗
6
6H5438490000
Pin, Valve Support
Loading…

↗
7
6H5438530000
Spring, Main Valve
Loading…

↗
9
6H5438630000
O-Ring
Loading…

↗
11
6H5438640000
O-Ring
Loading…

↗
12
6H5438650000
O-Ring
Loading…

↗
13
6H5438750000
Ring, Snap
Loading…

↗
14
6H5438660000
O-Ring
Loading…

↗
16
6H5438360000
Gear, Drive
Loading…

↗
17
6H5438581000
Ball
Loading…

↗
18
6H5438560000
Spring Down Relief
Loading…

↗
19
6H5438440000
Pin, valve support
Loading…

↗
20
6H5438670000
O-Ring
Loading…

↗
21
6H5438680000
O-ring 8
Loading…

↗
22
6H5438531000
Spring, Main Valve
Loading…

↗
23
6H5438590000
Pin, Valve Support
Loading…

↗
24
6H5438550100
Spring, Up Relief
Loading…

↗
25
6H54386F0000
Pin Straight
Loading…

↗
26
6H5438290000
Plug, Reservoir
Loading…

↗
28
6H54385A0000
Piston, Tilt
Loading…

↗
29
6H5438010000
Rod
Loading…

↗
30
6H5438580000
Ball
Loading…

↗
32
6H5438930000
Washer
Loading…

↗
34
6H5438830000
O-Ring
Loading…

↗
35
6H5438710000
Ring, Back Up
Loading…

↗
36
6H54381E0000
Bracket
Loading…

↗
37
6H5438960000
O-Ring
Loading…

↗
38
6H5438730000
Ring, Back Up
Loading…

↗
40
6H5438120000
Seal, Dust
Loading…

↗
41
6H5438970000
O-Ring
Loading…

↗
42
6H5438800000
Motor assembly
Loading…

↗
43
6H5438260000
Plug, Taper Screw
Loading…

↗
44
6H5438110000
Screw, Cylinder End
Loading…

↗
45
6H54381F0000
Bracket
Loading…

↗
46
6H5438870000
Bolt, screw
Loading…

↗
47
6H5438860000
Bolt
Loading…

↗
48
6H5438720000
Ring, Back Up
Loading…

↗
49
913160602000
Bolt,socket
Loading…

↗
50
929950610000
Washer(6a1)
Loading…

↗
51
956001210000
Nut, u (4pm)
Loading…

↗
52
6G1821270000
Wire, Lead 2
Loading…

↗
53
6H54388A0000
Bolt
Loading…

↗
