Yamaha Outboard Parts - Alternate 5 - 50DEMTO (1992) | Flood Marine

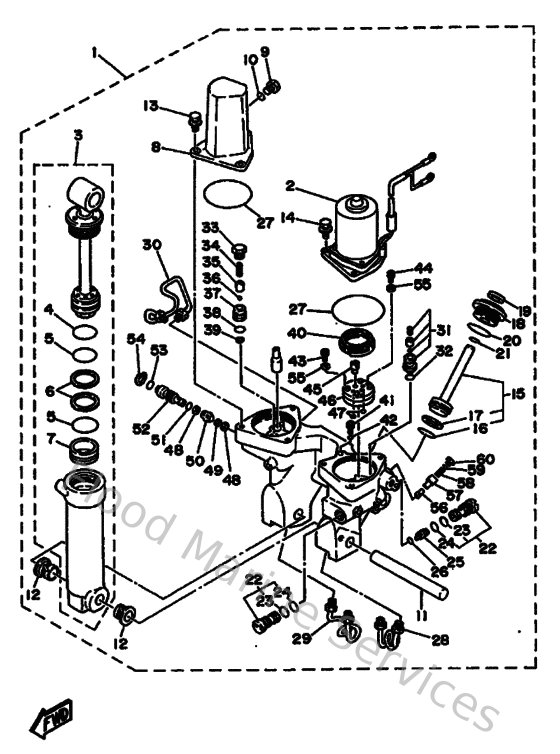

Diagram: Alternate 5

Diagram

Parts List

Reference
Description
Price


2
6H1438800200
Motor assembly
Loading…

↗
3
6974380E0100
Cylinder tilt assembly
Loading…

↗
4
6E5438610000
O-ring 1
Loading…

↗
5
6E5438620000
O-ring 2
Loading…

↗
6
6E5438720000
Ring, back-up 2
Loading…

↗
7
6E5438140100
Piston, free
Loading…

↗
8
6E5438280000
Body, reservoir
Loading…

↗
9
6E5438290000
Plug, reservoir
Loading…

↗
10
6E5438630000
O-ring
Loading…

↗
11
6E5438180000
Pin, lower shock mount
Loading…

↗
12
9038618M1400
Bushing (6e5)
Loading…

↗
13
9011906M4200
Bolt, with washer(6e5)
Loading…

↗
14
9011906M7100
Bolt, with washer(6h4)
Loading…

↗
15
6E5438200300
Piston sub assembly
Loading…

↗
16
6E5438640000
O-ring 4
Loading…

↗
17
6E5438740100
Ring, back-up 4
Loading…

↗
18
6E5438210100
Screw, trim cylinder end
Loading…

↗
19
6E5438220100
Seal, trim dust
Loading…

↗
21
6E5438650000
O-ring 5
Loading…

↗
22
6E5438020000
Valve Sub Assembly
Loading…

↗
23
6E5438660000
O-ring
Loading…

↗
24
6E5438670000
O-ring
Loading…

↗
25
6E5438410100
Piston, Shuttle
Loading…

↗
26
6E5438680000
O-Ring
Loading…

↗
27
6E5438690000
O-ring 9
Loading…

↗
28
6E5438330100
Pipe 1
Loading…

↗
29
6E5438340100
Pipe 2
Loading…

↗
30
6E5438350100
Pipe
Loading…

↗
31
6G5438080200
Seat Valve Comp 1
Loading…

↗
32
6E5438830000
O-ring 10
Loading…

↗
33
6E5438430000
Screw, Valve Lock
Loading…

↗
34
6H3438550000
Spring, Up Relief
Loading…

↗
35
6E5438590000
Pin, valve support
Loading…

↗
36
6E5438770100
Ball 2
Loading…

↗
37
6E5438950000
Seat, relief valve 2
Loading…

↗
38
6E5438960000
O-ring
Loading…

↗
39
6E5438161000
Filter 1
Loading…

↗
40
6E5438171000
Filter 2
Loading…

↗
41
9010906M2100
Bolt (6e5)
Loading…

↗
42
6E5438970000
O-Ring
Loading…

↗
43
6E5438780100
Bolt, Socket
Loading…

↗
44
6E5438880100
Bolt, socket
Loading…

↗
46
6E5438300000
Gear Pump assembly
Loading…

↗
47
9321007M7800
O-ring (6e5)
Loading…

↗
48
6E5438470000
Seat, manual valve
Loading…

↗
49
6E5438540100
Spring, manual release
Loading…

↗
50
6E54382A0000
Adaptor 1
Loading…

↗
51
9321010M7400
O-ring
Loading…

↗
52
6E5438450100
Screw, manual release
Loading…

↗
53
9321018M7500
O-ring (6e5)
Loading…

↗
55
9020105M0000
Washer (6E5)
Loading…

↗
56
6E54381A0000
Shaft
Loading…

↗
57
6E5438490100
Pin, valve support
Loading…

↗
58
6E5438240100
Spring Down Relief 2
Loading…

↗
59
9321006M7700
O-Ring
Loading…

↗
60
6E5438420000
Screw, valve seat
Loading…

↗
