Yamaha Outboard Parts - Alternate 6 - 25QEO (1991) | Flood Marine

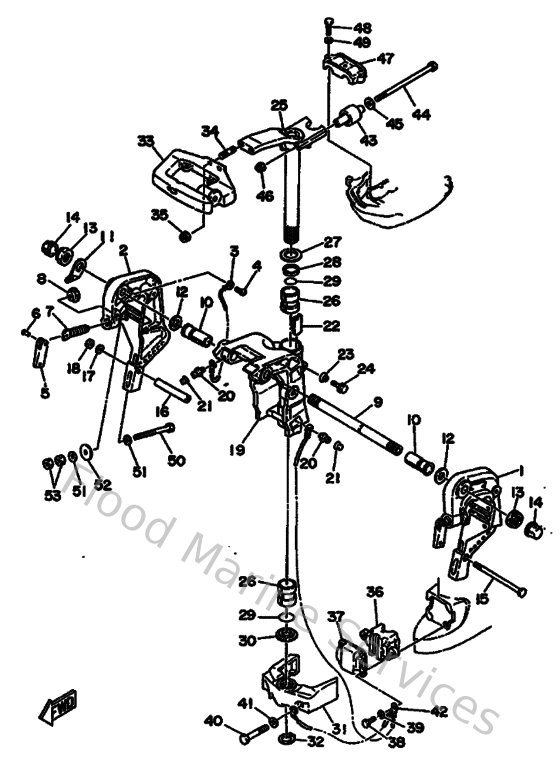

Diagram: Alternate 6

Diagram

Parts List

Reference
Description
Price


3
6E5821480000
Wire, lead 5
Loading…

↗
4
978950600800
Screw, pan head(6a3)
Loading…

↗
5
6164311800EJ
Handle, transom clamp
Loading…

↗
6
9024304M0000
Pin(6a9)
Loading…

↗
7
9014914M1200
Screw(6h4)
Loading…

↗
8
648431140100
Pad, transom clamp
Loading…

↗
9
6J8431310100
Bolt, clamp bracket
Loading…

↗
10
9038622M6900
Bush(6k9)
Loading…

↗
11
6J8431130100
Plate, clamp bracket
Loading…

↗
13
901852204300
Nut, self-locking
Loading…

↗
14
663431450000
Cap, clamp bracket
Loading…

↗
15
901010833900
Bolt, hexagon (656)
Loading…

↗
16
9038708M0300
Collar
Loading…

↗
17
929900860000
Washer, plain (663)
Loading…

↗
18
953800860000
Nut (661)
Loading…

↗
20
9370006M0300
Nipple, grease(6a1)
Loading…

↗
21
663451190000
Cap, grease nipple
Loading…

↗
23
689433730100
Seal, damper
Loading…

↗
24
9010506M1800
Bolt (689)
Loading…

↗
26
9038630M7700
Bush(6h0)
Loading…

↗
27
9020130M0000
Washer, plate(6h1)
Loading…

↗
28
9038630M7800
Bush(6h0)
Loading…

↗
29
9321029M9400
O-ring(6h1)
Loading…

↗
30
9038630M6000
Bush(6j8)
Loading…

↗
33
9341028M0600
Circlip (688)
Loading…

↗
34
901161017500
Bolt, stud
Loading…

↗
35
901851005100
Nut, self-locking
Loading…

↗
36
6H4445570000
Mount, lower front
Loading…

↗
37
6H4445530100
Cover, lower mount
Loading…

↗
38
973950802500
Bolt (62g)
Loading…

↗
40
973951006000
Bolt, hexagon
Loading…

↗
41
929901060000
Washer, plate
Loading…

↗
43
6H4445140000
Mount, upper side
Loading…

↗
44
9010108M8600
Bolt (6h4)
Loading…

↗
45
902010942500
Washer, plate (663)
Loading…

↗
46
901850804500
Nut, self-locking
Loading…

↗
47
6H4445110094
Cover, Upper Mount
Loading…

↗
48
970950803500
Bolt(70w)
Loading…

↗
49
929900810000
Ybs67-8 washer, spring
Loading…

↗
50
9010110M5800
Bolt
Loading…

↗
51
929951060000
Washer, plate
Loading…

↗
52
902011242600
Washe, plate(663)
Loading…

↗
53
953801060000
Nut(624)
Loading…

↗
