50DEMTO (1988)
Alternate 6

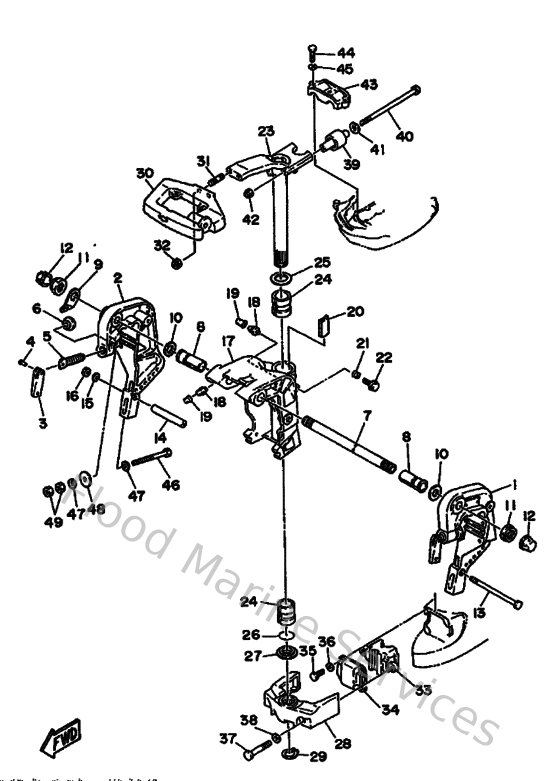

Diagram: Alternate 6
Parts List
Reference
Description
Price
3
6164311800EJ
Handle, transom clamp
Loading…
↗
4
9024304M0000
Pin(6a9)
Loading…
↗
5
9014914M0300
Screw(6j8)
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6J8431310100
Bolt, clamp bracket
Loading…
↗
8
9038622M6900
Bush(6k9)
Loading…
↗
9
6J8431130100
Plate, clamp bracket
Loading…
↗
10
9020122M0300
Washer, plate(64j)
Loading…
↗
11
901852204300
Nut, self-locking
Loading…
↗
12
663431450000
Cap, clamp bracket
Loading…
↗
13
901010833900
Bolt, hexagon (656)
Loading…
↗
14
903870901900
Collar
Loading…
↗
15
929900860000
Washer, plain (663)
Loading…
↗
16
953800860000
Nut (661)
Loading…
↗
18
937000600400
Nipple, grease(6a1)
Loading…
↗
19
663451190000
Cap, grease nipple
Loading…
↗
20
6H4425280000
Piece, friction
Loading…
↗
21
689433730100
Seal, damper
Loading…
↗
22
9010506M1800
Bolt (689)
Loading…
↗
24
903863004800
Bush
Loading…
↗
25
9020130M0000
Washer, plate(6h1)
Loading…
↗
26
932102937500
O-ring (j10)
Loading…
↗
27
9038630M6000
Bush(6j8)
Loading…
↗
29
9341028M0600
Circlip (688)
Loading…
↗
30
6H44212102CA
Bracket
Loading…
↗
31
901161017500
Bolt, stud
Loading…
↗
32
901851005100
Nut, self-locking
Loading…
↗
33
6H4445570000
Mount, lower front
Loading…
↗
34
6H4445530100
Cover, lower mount
Loading…
↗
35
973950802500
Bolt (62g)
Loading…
↗
37
973951006000
Bolt, hexagon
Loading…
↗
38
929901060000
Washer, plate
Loading…
↗
39
6H4445140000
Mount, upper side
Loading…
↗
40
9010108M8600
Bolt (6h4)
Loading…
↗
41
902010942500
Washer, plate (663)
Loading…
↗
42
901850804500
Nut, self-locking
Loading…
↗
43
6H4445110094
Cover, Upper Mount
Loading…
↗
44
970950803500
Bolt(70w)
Loading…
↗
45
929900810000
Ybs67-8 washer, spring
Loading…
↗
46
9010110M5800
Bolt
Loading…
↗
47
929951060000
Washer, plate
Loading…
↗
48
902011242600
Washe, plate(663)
Loading…
↗
49
953801060000
Nut(624)
Loading…
↗
