RIGGING - STEERING (2021)
BASE HANDLE - ALL

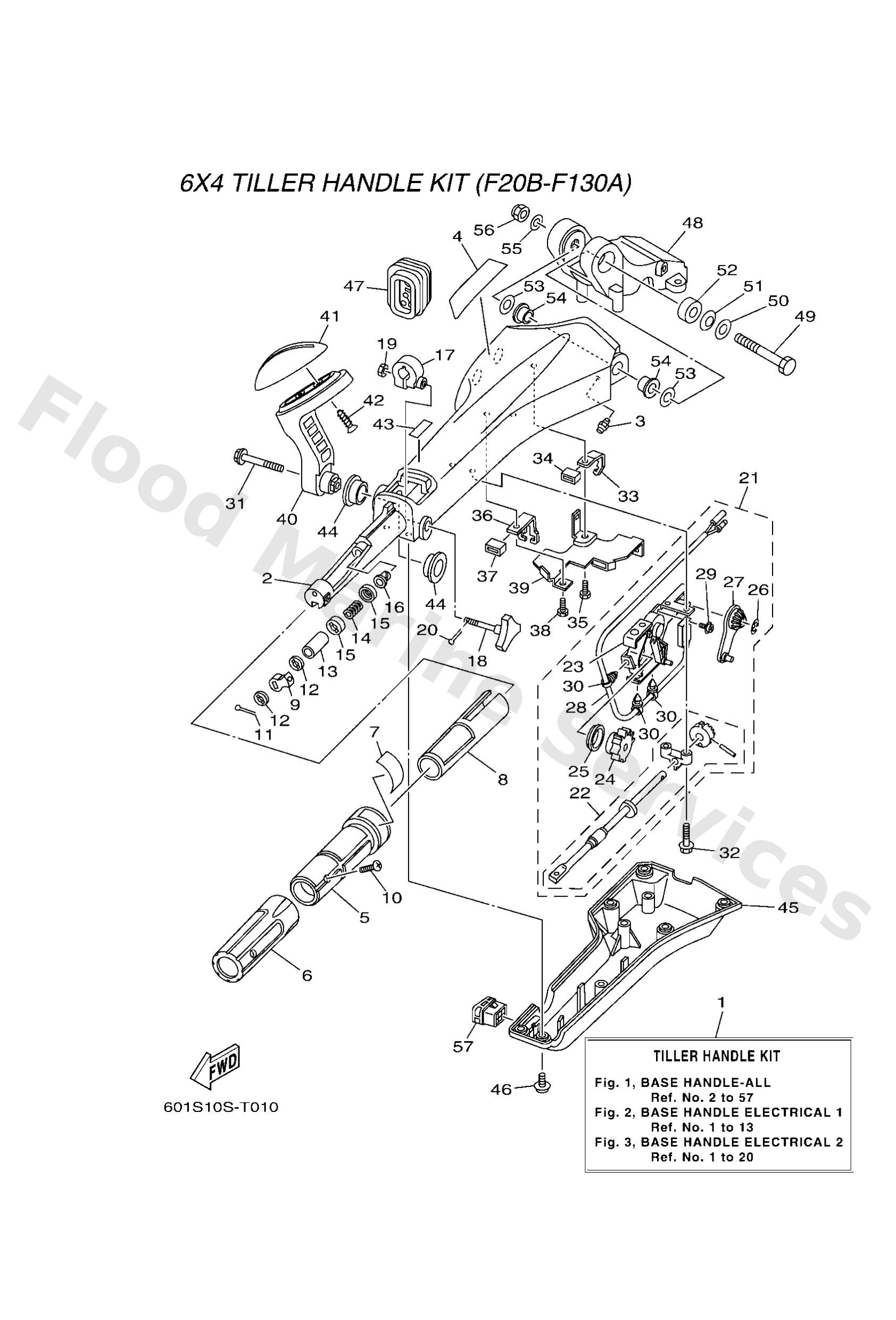

Diagram: BASE HANDLE - ALL
Parts List
Reference
Description
Price
1
6X4421036A
LM FOR EUR,OCE
Handle main body (led/ycop)
Loading…
↗
1
6X4421035C
LM FOR USA,CAN
-
Loading…
↗
2
6X442111028D
Handle, steering
Loading…
↗
3
9370006002
Nipple, grease
Loading…
↗
4
6X44821500
Graphic
Loading…
↗
5
6X44211901
Grip, steering handle
Loading…
↗
6
6X44217701
Rubber, handle
Loading…
↗
7
6X44213700
Indicator, throttle
Loading…
↗
8
6X44129100
Bushing
Loading…
↗
9
6X44413901
Collar
Loading…
↗
10
9015205007
Screw, countersunk
Loading…
↗
11
9149020010
Pin, cotter
Loading…
↗
12
6X44417700
Washer
Loading…
↗
13
6X44212800
Collar, distance 1
Loading…
↗
14
9050123215
Spring (655)
Loading…
↗
15
6X44418800
Washer
Loading…
↗
16
9038608032
Bushing (650)
Loading…
↗
17
63D4212600
Friction, steering handle grip
Loading…
↗
18
6X44815400
Knob, throttle
Loading…
↗
19
9538006600
Nut(661)
Loading…
↗
21
6X44410001
Shift link assembly
Loading…
↗
22
6X44211500
Shaft, steering handle
Loading…
↗
23
6X44410200
Shift assist assembly.
Loading…
↗
24
6X44773101
Gear, drive
Loading…
↗
25
6X44413200
Bushing
Loading…
↗
26
6X41413700
Clip
Loading…
↗
27
6X44826100
Arm, throttle
Loading…
↗
28
6X48254000
Neutral switch assembly
Loading…
↗
29
7034812900
Screw 3
Loading…
↗
30
6X44282100
Band, clamp
Loading…
↗
31
97E9508540
Bolt, hexagon w/w deep recess
Loading…
↗
32
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
33
6X44853800
Clamp, cable 1
Loading…
↗
34
6X42636701
Protector
Loading…
↗
35
97D9506014
Bolt, hexagon deep recess
Loading…
↗
36
6X44853810
Clamp, cable 1
Loading…
↗
39
6X44215900
Stay
Loading…
↗
40
6X444159A08D
Handle, gear shift
Loading…
↗
41
6X44417300
Lever, shift control
Loading…
↗
42
9778060920
Screw, tapping
Loading…
↗
43
6G84419100
Indicator, shift
Loading…
↗
44
9038626MA3
Bush
Loading…
↗
45
6X44213101
FOR USA,CAN
Cover, handle steering
Loading…
↗
45
6X44213111
FOR EUR,OCE
Cover, handle steering
Loading…
↗
46
9798506216
Screw, with washer(6h2)
Loading…
↗
47
6X44272501
Grommet
Loading…
↗
48
63D42121228D
Bracket
Loading…
↗
49
9010112014
Bolt
Loading…
↗
50
9299012200
Ybs66-12 washer,plain
Loading…
↗
51
9020612M22
Washer, wave(6b0)
Loading…
↗
52
9038712M02
Collar(6b0)
Loading…
↗
53
9020112035
Washer, plate
Loading…
↗
54
9038612003
Bush
Loading…
↗
55
9299012600
Washer, plate(663)
Loading…
↗
56
9018512M12
Nut, self-locking(6e5)
Loading…
↗
57
6X44272810
Cap
Loading…
↗
