RIGGING - STEERING (2022)
BASE HANDLE ELECTRICAL 1

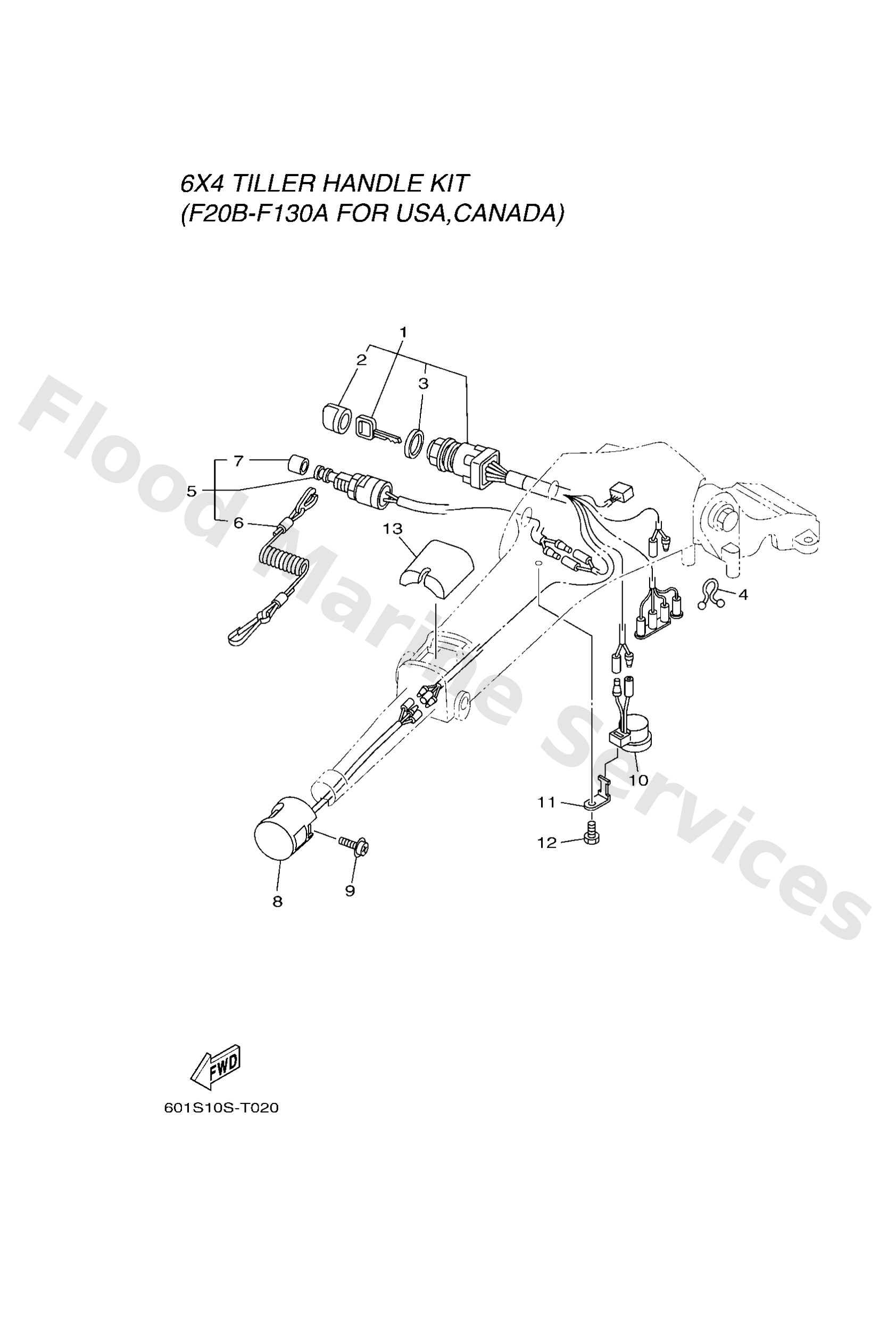

Diagram: BASE HANDLE ELECTRICAL 1
Parts List
Reference
Description
Price
1
6X48251002
Main switch assembly
Loading…
↗
2
6768257701
Cap, key
Loading…
↗
3
7038253200
Cap
Loading…
↗
4
9046408M07
Clamp
Loading…
↗
5
69W8257500
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
6898257Y00
Cap
Loading…
↗
8
6X48256301
Trim & tilt switch assembly
Loading…
↗
9
9798006216
Screw, with washer(6h2)
Loading…
↗
10
6X48338300
Buzzer
Loading…
↗
11
6X48338600
Stay, buzzer
Loading…
↗
12
97D9506014
Bolt, hexagon deep recess
Loading…
↗
13
6X48194201
Cover
Loading…
↗
