ME750TIH (2005)
BILGE PUMP

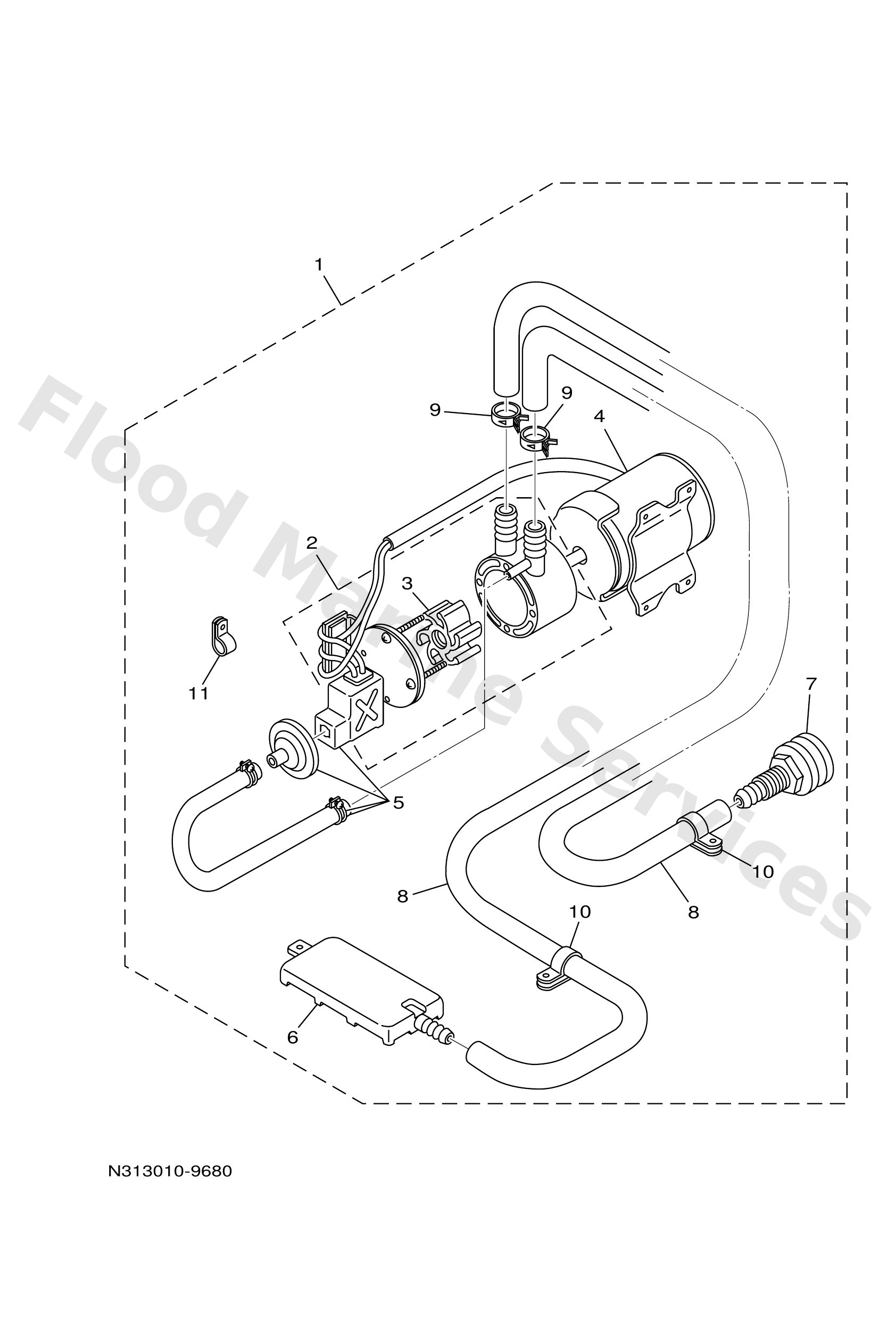

Diagram: BILGE PUMP
Parts List
Reference
Description
Price
1
7056836000
HITATI SEISAKUSIYO
Bilge Pump assembly (24V)
Loading…
↗
2
7056836100
Pump Kit
Loading…
↗
2
11
CLIP, NYLON 9 10
6Yf-8357X-10
Loading…
↗
3
7056837200
Impeller Kit
Loading…
↗
4
7056836200
Motor assembly 24v
Loading…
↗
5
7056836300
Vacuum Switch assembly.
Loading…
↗
6
A006836401
Strainer, Bilge Pump
Loading…
↗
8
A006836600
Hose, bilge pump
Loading…
↗
9
7
PORT, OUTLET 1
6Tc-41661-00
Loading…
↗
9
7056836800
Clamp
Loading…
↗
10
A006836900
Clamp, hose
Loading…
↗
