Yamaha Outboard Parts - BOTTOM COWLING - 115CETO (2011) | Flood Marine
New Search
Parts
New Outboards
Home
115CETO (2011)
BOTTOM COWLING

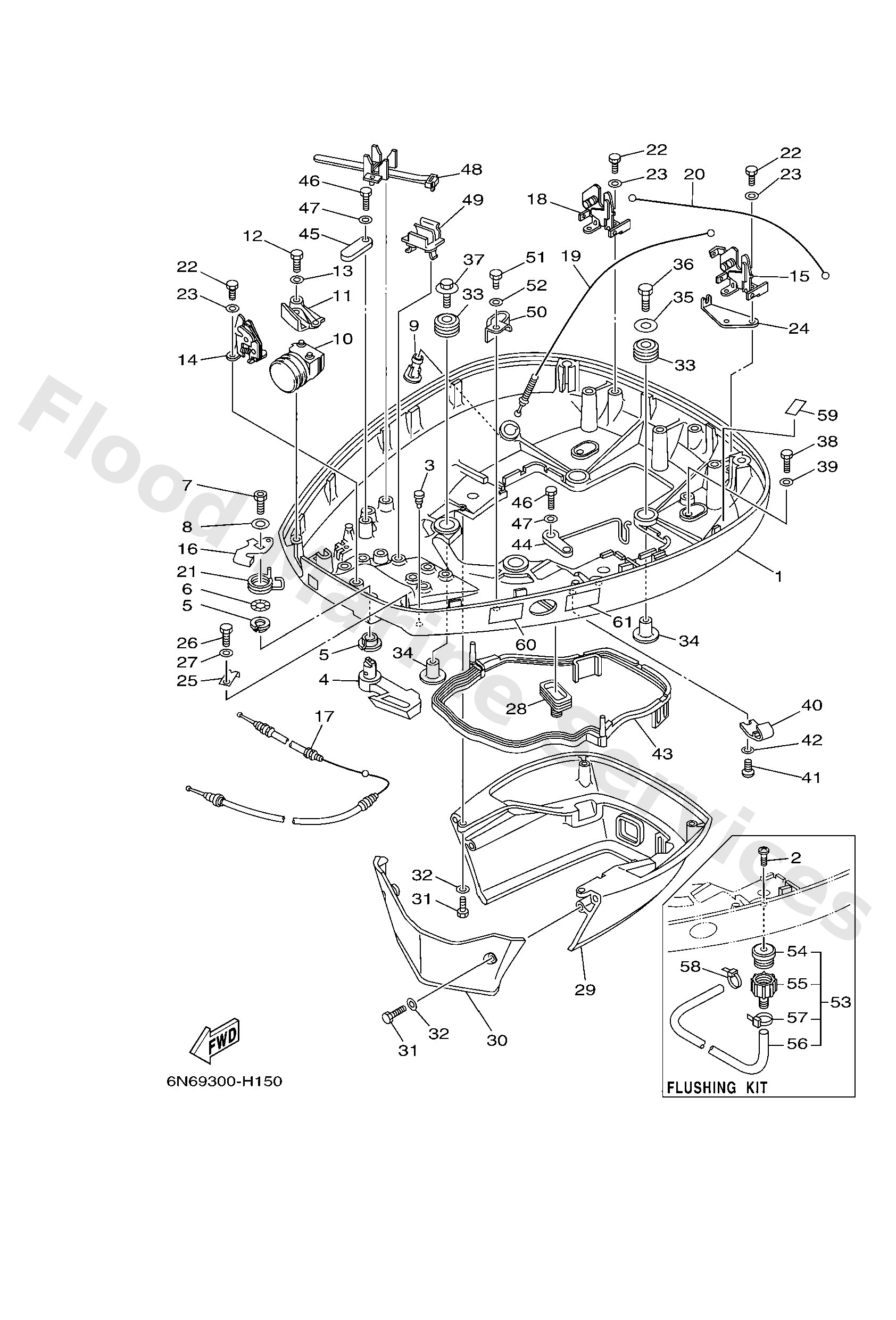

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6N742711438D
Cowling, bottom
Loading…
↗
2
9016905M00
Screw truss head tapping
Loading…
↗
3
6H44274800
Grommet
Loading…
↗
4
6N742815018D
Lever, clamp
Loading…
↗
5
9038613M88
Bush(6r3)
Loading…
↗
6
9020613M10
Washer, wave (6e5)
Loading…
↗
7
9010908M45
Bolt(6r3)
Loading…
↗
8
9299008200
Ybs66-8 washer, plain
Loading…
↗
9
6E54439100
Nipple, hose
Loading…
↗
10
6N74272530
Grommet
Loading…
↗
11
6N742738028D
Plate, fitting
Loading…
↗
12
9709506016
Bolt, hexagon deep recess
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
6R34282400
Base, clamp lever
Loading…
↗
15
6R34281101
Stay
Loading…
↗
16
6R34281600
Lever, clamp
Loading…
↗
17
6N74285000
Wire, complete
Loading…
↗
18
6R34281110
Stay
Loading…
↗
19
6N74285010
Wire, complete
Loading…
↗
20
6N74285020
Wire, complete
Loading…
↗
21
6R34281300
Spring, clamp lever
Loading…
↗
24
6N74282800
Plate, clamp
Loading…
↗
25
6R34282801
Plate, clamp
Loading…
↗
26
9709506010
Bolt
Loading…
↗
28
6884272610
Grommet
Loading…
↗
29
6N742741018D
Apron
Loading…
↗
30
6R342771018D
Apron
Loading…
↗
31
9709506020
Bolt(7u8)
Loading…
↗
33
9048022M15
Grommet (6e5)
Loading…
↗
34
9038708M37
Coller (6e5)
Loading…
↗
35
9020108M54
Washer, plate (6e5)
Loading…
↗
36
9707508035
Bolt(70w)
Loading…
↗
37
9011908M22
Bolt, with washer
Loading…
↗
40
6E52436710
Clamp, fuel pipe 2
Loading…
↗
41
9015706M01
Screw (6e5)
Loading…
↗
42
9299006600
Washer, plain (646)
Loading…
↗
43
6E54271600
Rubber, Seal 1
Loading…
↗
44
6K78258800
Plate
Loading…
↗
45
6E58258800
Plate
Loading…
↗
48
6888259400
Clamp
Loading…
↗
49
6E58259400
Clamp
Loading…
↗
50
9046512M25
Clamp (6e5)
Loading…
↗
51
9709506012
Bolt(gh1)
Loading…
↗
53
6R3Y125J70
Flushing kit
Loading…
↗
54
6R31257200
Adapter
Loading…
↗
55
6R31258000
Joint assembly
Loading…
↗
56
9044511M35
Hose (l700)
Loading…
↗
57
9046511M10
Clamp
Loading…
↗
59
6G54279110
Mark 1
Loading…
↗
60
6AH4279440
Label, warning (ge
Loading…
↗
61
6AH4279450
Label, warning (ge
Loading…
↗
