130BETO (2003)
BOTTOM COWLING

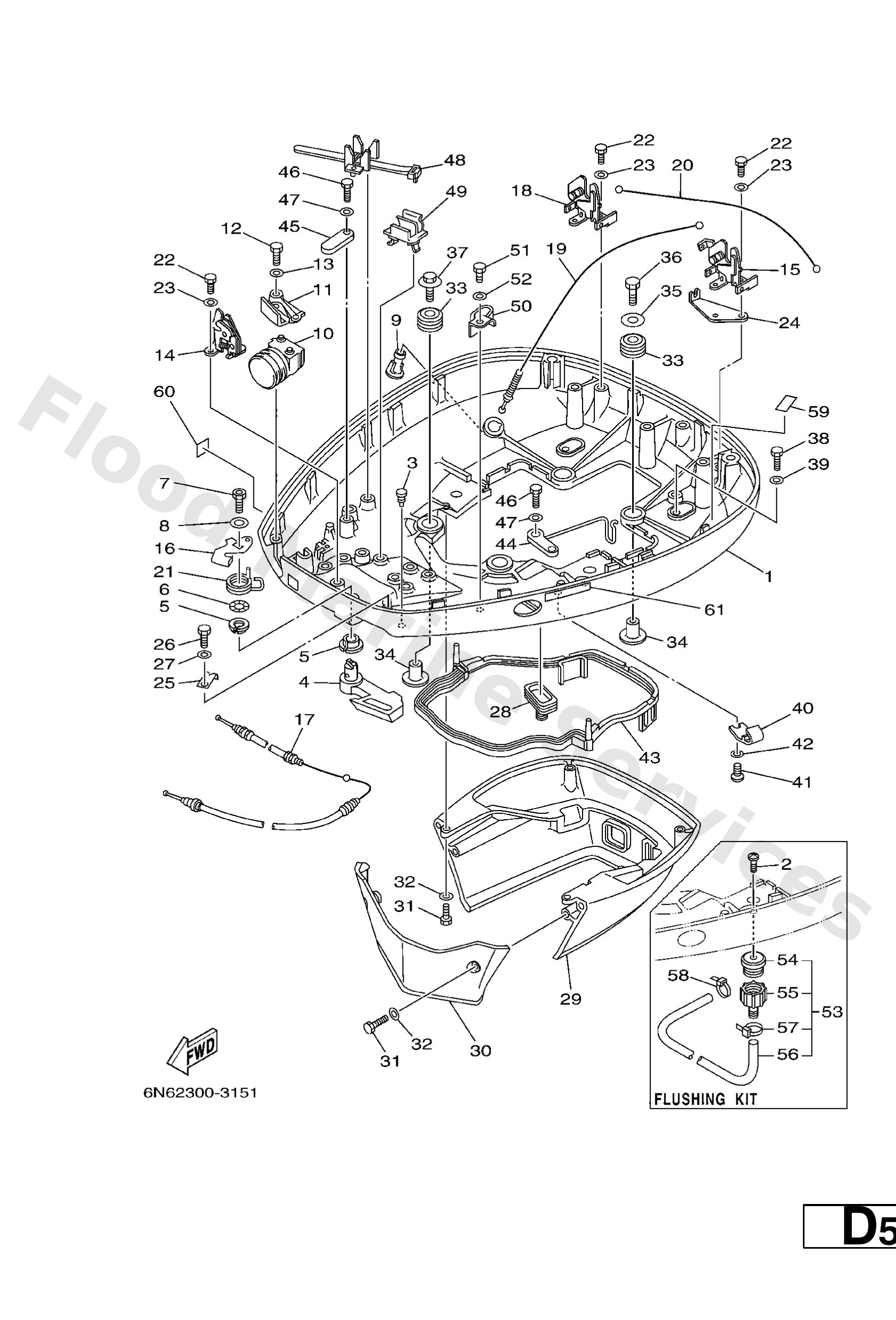

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6N7−42711−43−8D
Cowling, bottom
Loading…
↗
2
90169−05M00
Screw truss head tapping
Loading…
↗
3
6H4−42748−00
Grommet
Loading…
↗
4
6N7−42815−01−8D
Lever, clamp
Loading…
↗
5
90386−13M88
Bush(6r3)
Loading…
↗
6
90206−13M10
Washer, wave (6e5)
Loading…
↗
7
90109−08M45
Bolt(6r3)
Loading…
↗
8
92990−08200
Ybs66-8 washer, plain
Loading…
↗
9
6E5−44391−00
Nipple, hose
Loading…
↗
10
6N7−42725−30
Grommet
Loading…
↗
11
6N7−42738−02−5B
Plate, fitting
Loading…
↗
12
97095−06016
Bolt, hexagon deep recess
Loading…
↗
13
92995−06600
Washer, plain (646)
Loading…
↗
14
6R3−42824−00
Base, clamp lever
Loading…
↗
15
6R3−42811−01
Stay
Loading…
↗
16
6R3−42816−00
Lever, clamp
Loading…
↗
17
6N7−42850−00
Wire, complete
Loading…
↗
18
6R3−42811−10
Stay
Loading…
↗
19
6N7−42850−10
Wire, complete
Loading…
↗
20
6N7−42850−20
Wire, complete
Loading…
↗
21
6R3−42813−00
Spring, clamp lever
Loading…
↗
24
6N7−42828−00
Plate, clamp
Loading…
↗
25
6R3−42828−00
Plate, clamp
Loading…
↗
26
97095−06010
Bolt
Loading…
↗
28
688−42726−10
Grommet
Loading…
↗
29
6N7−42741−01−8D
Apron
Loading…
↗
30
6R3−42771−01−8D
Apron
Loading…
↗
31
97095−06020
Bolt(7u8)
Loading…
↗
33
90480−22M15
Grommet (6e5)
Loading…
↗
34
90387−08M37
Coller (6e5)
Loading…
↗
35
90201−08M54
Washer, plate (6e5)
Loading…
↗
36
97075−08035
Bolt(70w)
Loading…
↗
37
90119−08M22
Bolt, with washer
Loading…
↗
40
6E5−24367−10
Clamp, fuel pipe 2
Loading…
↗
41
90157−06M01
Screw (6e5)
Loading…
↗
42
92990−06600
Washer, plain (646)
Loading…
↗
43
6E5−42716−00
Rubber, Seal 1
Loading…
↗
44
6K7−82588−00
Plate
Loading…
↗
45
6E5−82588−00
Plate
Loading…
↗
48
688−82594−00
Clamp
Loading…
↗
49
6E5−82594−00
Clamp
Loading…
↗
50
90465−12M25
Clamp (6e5)
Loading…
↗
51
97095−06012
Bolt(gh1)
Loading…
↗
53
6R3Y125J70
Flushing kit
Loading…
↗
54
6R31257200
Adapter
Loading…
↗
55
6R31258000
Joint assembly
Loading…
↗
56
9044511M35
Hose (l700)
Loading…
↗
57
9046511M10
Clamp
Loading…
↗
59
6G54279110
Mark 1
Loading…
↗
59
6K74279100
Mark 1
Loading…
↗
60
6A12817600
-
Loading…
↗
61
6E38257H00
Plate, Mark
