150FETO (2004)
BOTTOM COWLING

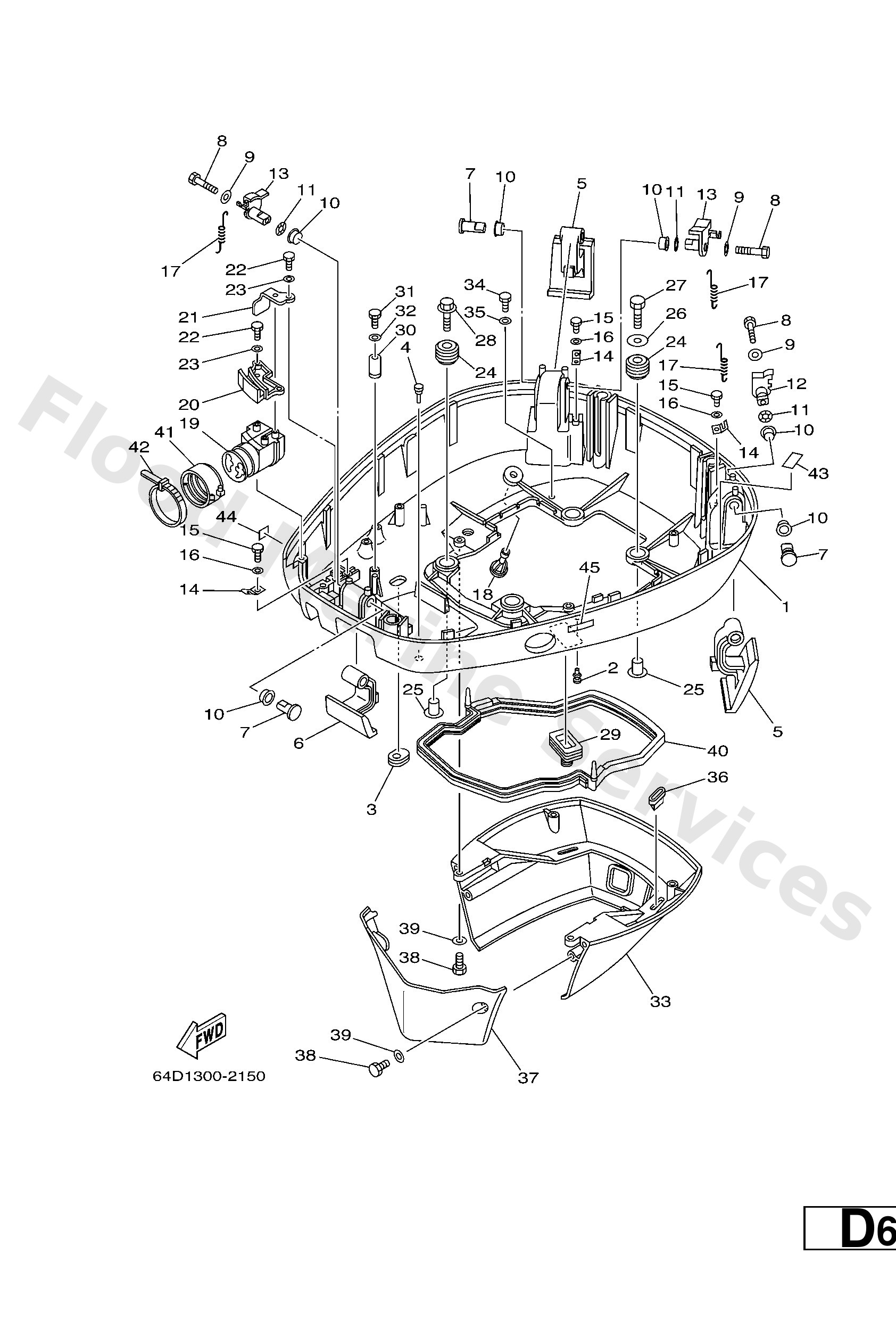

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
64D42711018D
Cowling, bottom
Loading…
↗
2
9048006M19
Grommet (6e3)
Loading…
↗
3
64G4272700
Grommet
Loading…
↗
3
61A4272700
Grommet
Loading…
↗
4
6H44274800
Grommet
Loading…
↗
5
64D42815004D
Lever, clamp
Loading…
↗
6
64D42816004D
Lever, clamp
Loading…
↗
7
64D4283500
Pin, set1
Loading…
↗
8
9709506040
Bolt (682)
Loading…
↗
9
9020106068
Washer,plate (6k8)
Loading…
↗
10
9038615M73
Bush(6l2)
Loading…
↗
11
9020615M18
Washer, wave(6l2)
Loading…
↗
12
64D4281820
Lever, clamp
Loading…
↗
13
64D4281830
Lever, clamp
Loading…
↗
14
64D4314400
Hook, spring
Loading…
↗
15
9709006012
Bolt(gh1)
Loading…
↗
16
9299006600
Washer, plain (646)
Loading…
↗
17
9050616M34
Spring, tension(64d)
Loading…
↗
18
6E54439100
Nipple, hose
Loading…
↗
19
64D4272530
Grommet
Loading…
↗
20
64D42738005B
Plate, fitting
Loading…
↗
21
64D42738105B
Plate, fitting
Loading…
↗
22
9709506016
Bolt, hexagon deep recess
Loading…
↗
23
9299506600
Washer, plain (646)
Loading…
↗
24
9048022M15
Grommet (6e5)
Loading…
↗
25
9038708M37
Coller (6e5)
Loading…
↗
26
9020108M54
Washer, plate (6e5)
Loading…
↗
27
9707508035
Bolt(70w)
Loading…
↗
28
9011908M22
Bolt, with washer
Loading…
↗
29
6884272610
Grommet
Loading…
↗
30
6E58258800
Plate
Loading…
↗
31
9709506020
Bolt(7u8)
Loading…
↗
33
6R342741028D
Apron
Loading…
↗
36
64D4271700
Rubber, Seal 2
Loading…
↗
37
6R342771018D
Apron
Loading…
↗
40
6E54271610
Rubber seal 1
Loading…
↗
41
68F4275300
AP
Fastner
Loading…
↗
42
9046420258
AP
Clamp
Loading…
↗
43
6E74279110
Mark 1
Loading…
↗
43
6G54279110
Mark 1
Loading…
↗
44
6A12817600
-
Loading…
↗
45
6E38257H00
Plate, Mark
Loading…
↗
