15FWC (2002)
BOTTOM COWLING

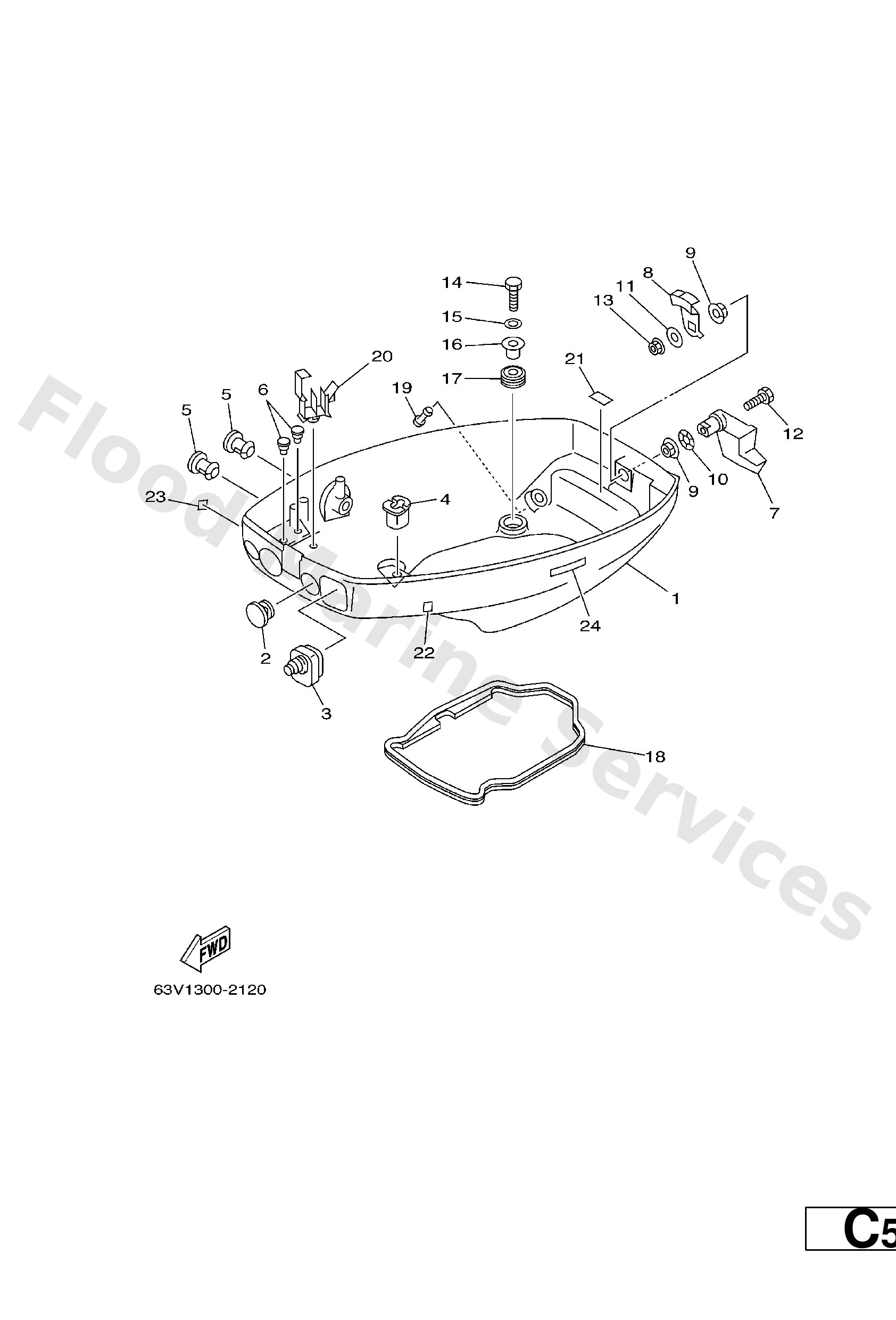

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
63V--42711--03--4D
Cowling, bottom
Loading…
↗
2
682--42725--02
Grommet
Loading…
↗
3
63V--42726--00
Grommet
Loading…
↗
4
682--42727--00
Grommet
Loading…
↗
5
6G1--42748--00
Grommet
Loading…
↗
6
90480--06M19
Grommet (6e3)
Loading…
↗
7
63V--42815--01--4D
Lever, clamp
Loading…
↗
8
6E7--42816--00
Lever, clamp 2
Loading…
↗
9
90386--12M45
Bushing (6g1)
Loading…
↗
10
90206--12052
Washer, wave (666)
Loading…
↗
11
90201--06068
Washer,plate (6k8)
Loading…
↗
12
97095--06025
Bolt
Loading…
↗
13
95380--06700
Nut
Loading…
↗
15
92995--06600
Washer, plain (646)
Loading…
↗
16
90387--06034
Collar (6g1)
Loading…
↗
17
90480--15M31
Grommet (6g1)
Loading…
↗
18
63V--42716--02
Rubber, seal 1
Loading…
↗
19
6H3--44391--01
Nipple, hose
Loading…
↗
20
90465--25M57
Clamp(63v)
Loading…
↗
21
6E7--42791--10
Mark 1
Loading…
↗
22
6A14279201
Mark (100)1)
Loading…
↗
23
6A1--28176--00
Label, Caution
Loading…
↗
24
6E3--8257H--00
Plate, Mark
Loading…
↗
