200GETO (2002)
BOTTOM COWLING

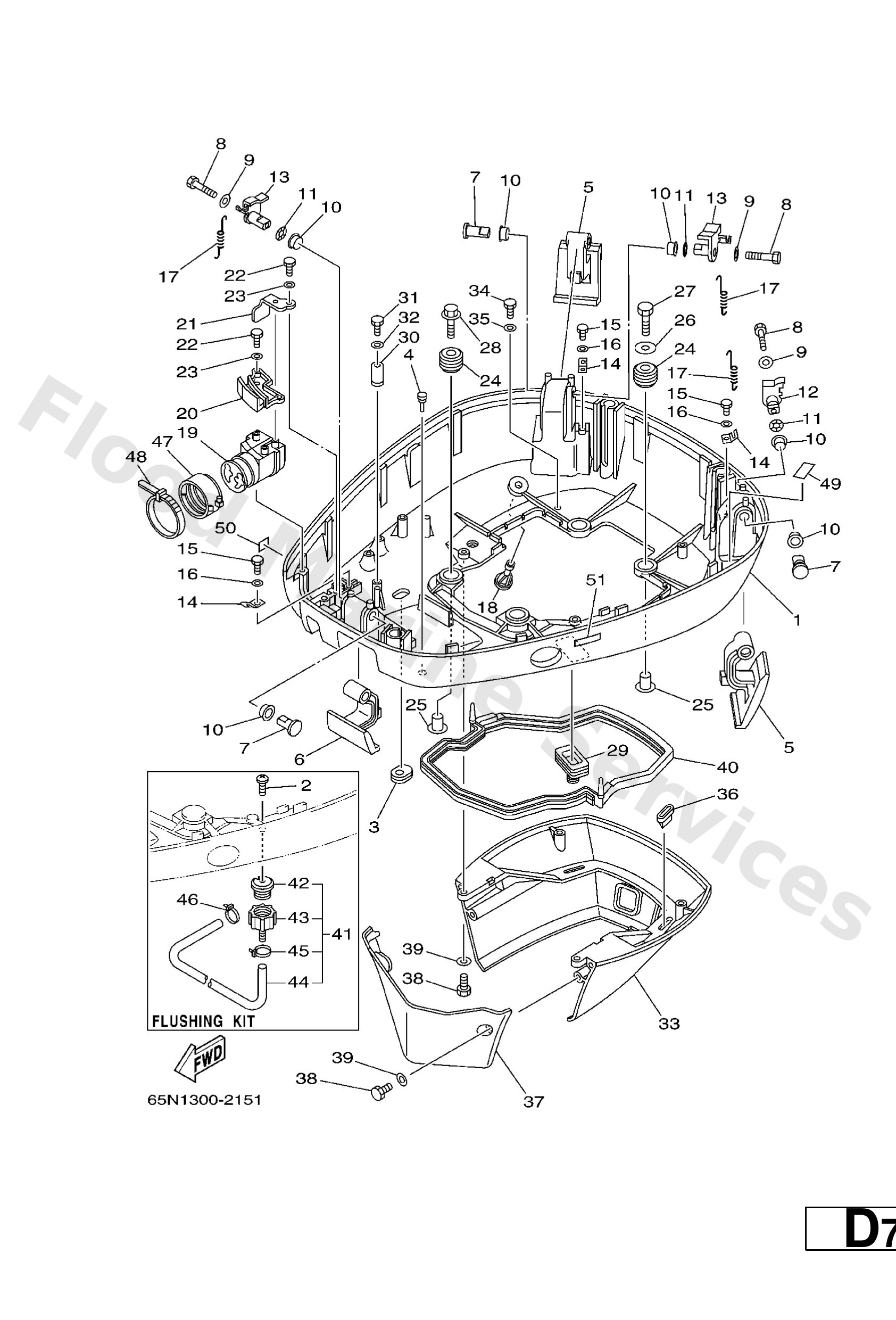

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
64D--42711--01--8D
Cowling, bottom
Loading…
↗
2
90169--05M00
Screw truss head tapping
Loading…
↗
3
61A--42727--00
Grommet
Loading…
↗
4
6H4--42748--00
Grommet
Loading…
↗
5
64D--42815--00--4D
Lever, clamp
Loading…
↗
6
64D--42816--00--4D
Lever, clamp
Loading…
↗
7
64D--42835--00
Pin, set1
Loading…
↗
8
97095--06040
Bolt (682)
Loading…
↗
9
90201--06068
Washer,plate (6k8)
Loading…
↗
10
90386--15M73
Bush(6l2)
Loading…
↗
11
90206--15M18
Washer, wave(6l2)
Loading…
↗
12
64D--42818--20
Lever, clamp
Loading…
↗
13
64D--42818--30
Lever, clamp
Loading…
↗
14
64D--43144--00
Hook, spring
Loading…
↗
15
97090--06012
Bolt(gh1)
Loading…
↗
16
92990--06600
Washer, plain (646)
Loading…
↗
17
90506--16M34
Spring, tension(64d)
Loading…
↗
18
6E5--44391--00
Nipple, hose
Loading…
↗
19
64D--42725--30
Grommet
Loading…
↗
20
64D--42738--00--5B
Plate, fitting
Loading…
↗
21
64D--42738--10--5B
Plate, fitting
Loading…
↗
22
97095--06016
Bolt, hexagon deep recess
Loading…
↗
23
92995--06600
Washer, plain (646)
Loading…
↗
24
90480--22M15
Grommet (6e5)
Loading…
↗
25
90387--08M37
Coller (6e5)
Loading…
↗
26
90201--08M54
Washer, plate (6e5)
Loading…
↗
27
97075--08035
Bolt(70w)
Loading…
↗
28
90119--08M22
Bolt, with washer
Loading…
↗
29
688--42726--10
Grommet
Loading…
↗
30
6E5--82588--00
Plate
Loading…
↗
31
97095--06020
Bolt(7u8)
Loading…
↗
33
6R3--42741--02--8D
Apron
Loading…
↗
36
64D--42717--00
Rubber, Seal 2
Loading…
↗
37
6R3--42771--01--8D
Apron
Loading…
↗
40
6E5--42716--10
Rubber seal 1
Loading…
↗
41
6R3Y125J70
Flushing kit
Loading…
↗
42
6R31257200
Adapter
Loading…
↗
43
6R31258000
Joint assembly
Loading…
↗
44
9044511M35
Hose (l700)
Loading…
↗
45
9046511M10
Clamp
Loading…
↗
47
68F4275300
Fastner
Loading…
↗
48
9046420258
Clamp
Loading…
↗
49
6G54279110
Mark 1
Loading…
↗
50
6A12817600
Label, Caution
Loading…
↗
51
6E38257H00
Plate, Mark
Loading…
↗
