20DMHO (2003)
BOTTOM COWLING

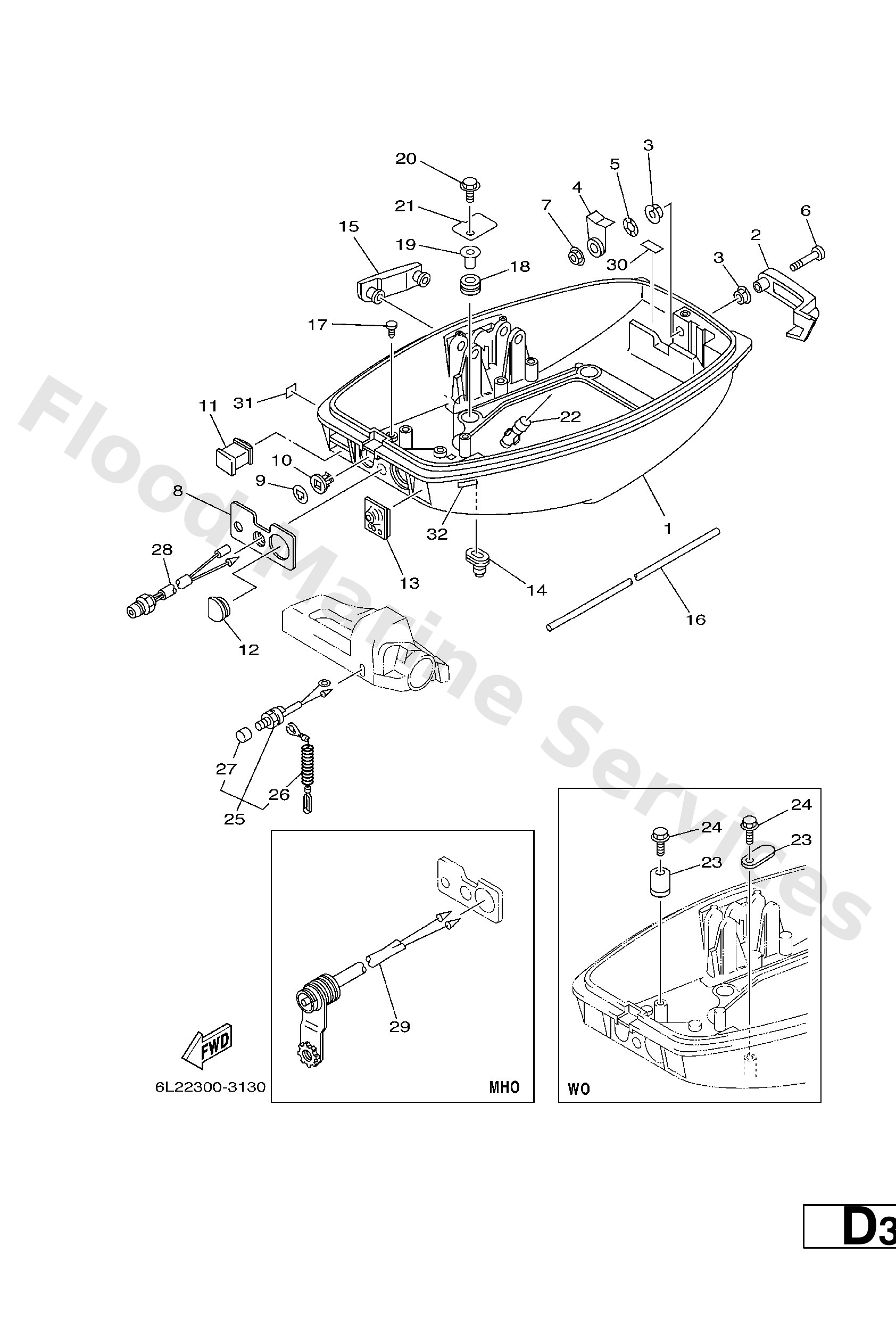

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6L2−42711−03−4D
Cowling, bottom 1
Loading…
↗
2
6L2−42815−01−4D
Lever, clamp
Loading…
↗
3
90386−12M45
Bushing (6g1)
Loading…
↗
4
6L2−42816−00
Lever, clamp
Loading…
↗
5
90206−12052
Washer, wave (666)
Loading…
↗
6
97880−06035
Screw, pan head(6h4)
Loading…
↗
7
95780−06300
Nut, nylon (6g1)
Loading…
↗
8
6L2−42719−A0
Panel, front lower
Loading…
↗
9
689−41273−00
Grommet
Loading…
↗
10
6J8−41274−00
Grommet 2
Loading…
↗
11
6L2−42725−00
Grommet
Loading…
↗
11
6L2−42725−50
Grommet
Loading…
↗
12
6G1−42724−00
Grommet
Loading…
↗
13
6L2−42726−01
Grommet
Loading…
↗
13
6L2−42726−10
Grommet
Loading…
↗
14
6G1−42727−00
Grommet
Loading…
↗
15
6L2−42748−01
Grommet
Loading…
↗
16
6L2−42716−00
Rubber seal 1
Loading…
↗
17
90338−05M03
Plug (6h1)
Loading…
↗
18
90480−15M31
Grommet (6g1)
Loading…
↗
19
90387−06M52
Collar (6g1)
Loading…
↗
20
95895−06020
Bolt, flange(jk3)
Loading…
↗
21
6L2−42738−01
Plate, fitting
Loading…
↗
22
6H3−44391−01
Nipple, hose
Loading…
↗
23
6E5−82588−00
Plate
Loading…
↗
24
95895−06016
Bolt, flange deep recess
Loading…
↗
25
6L2−82575−00
Engine stop switch assembly
Loading…
↗
26
682−82556−00
Lanyard, stop switch
Loading…
↗
27
689−8257Y−00
Cap
Loading…
↗
28
6J8−85410−00
Emergency signal light assembly
Loading…
↗
29
682−84381−00
2p concent 1
Loading…
↗
30
6E7−42791−10
Mark 1
Loading…
↗
31
6A1−28176−00
Label, Caution
Loading…
↗
32
6E3−8257H−00
18 −
