225GETO (2003)
BOTTOM COWLING

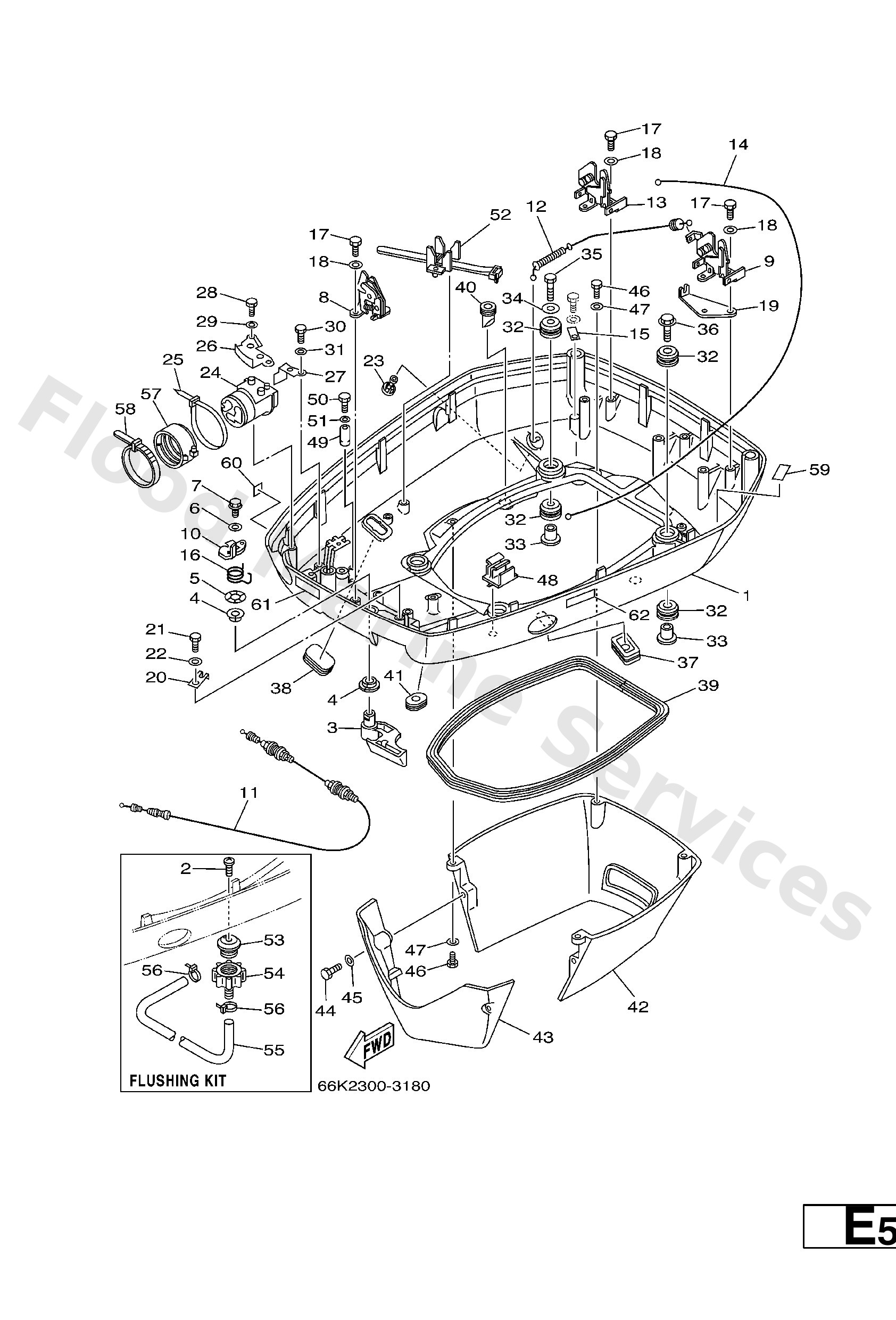

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
61A−42711−05−8D
Cowling, Bottom
Loading…
↗
2
90169−05M00
FLUSHING KIT
Screw truss head tapping
Loading…
↗
3
61A−42815−01−8D
Lever, Clamp
Loading…
↗
4
90386−13M88
Bush(6r3)
Loading…
↗
5
90206−13M10
Washer, wave (6e5)
Loading…
↗
6
90201−06M30
Washer, plate (6a1)
Loading…
↗
7
90109−06M50
Bolt(61a)
Loading…
↗
8
6R3−42824−00
Base, clamp lever
Loading…
↗
9
6R3−42811−01
Stay
Loading…
↗
10
6R3−42816−00
Lever, clamp
Loading…
↗
11
6R3−42850−10
Wire, complete
Loading…
↗
12
61A−42850−01
18 −
Loading…
↗
13
6R3−42811−10
Stay
Loading…
↗
14
61A−42850−20
Wire, complete
Loading…
↗
15
682−44117−00
Bracket
Loading…
↗
16
6R3−42813−00
Spring, clamp lever
Loading…
↗
17
97095−06016
Bolt, hexagon deep recess
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
6N7−42828−00
Plate, clamp
Loading…
↗
20
6R3−42828−00
Plate, clamp
Loading…
↗
21
97095−06010
Bolt
Loading…
↗
23
6E5−44391−00
Nipple, hose
Loading…
↗
24
61A−42725−31
Grommet
Loading…
↗
25
90465−13M30
Clamp
Loading…
↗
26
61A−42738−02−5B
Plate, fitting
Loading…
↗
27
64D−42738−10−5B
Plate, fitting
Loading…
↗
30
97095−06012
Bolt(gh1)
Loading…
↗
32
90480−22M81
Grommet
Loading…
↗
33
90387−08M37
Coller (6e5)
Loading…
↗
34
90201−08M54
Washer, plate (6e5)
Loading…
↗
35
97075−08035
Bolt(70w)
Loading…
↗
36
90119−08M22
Bolt, with washer
Loading…
↗
37
688−42726−10
Grommet
Loading…
↗
38
6H4−42726−00
Grommet
Loading…
↗
39
61A−42716−00
Rubber seal 1
Loading…
↗
40
61A−42717−00
Rubber, seal 2
Loading…
↗
41
61A−42727−00
Grommet
Loading…
↗
42
61A−42741−01−8D
Apron
Loading…
↗
43
61A−42771−01−8D
Apron
Loading…
↗
44
97095−06030
Bolt(jf7)
Loading…
↗
46
97095−06020
Bolt(7u8)
Loading…
↗
48
6E5−82594−00
Clamp
Loading…
↗
49
6E5−82588−00
Plate
Loading…
↗
52
688−82594−00
Clamp
Loading…
↗
53
6R3−12572−00
FLUSHING KIT
Adapter
Loading…
↗
54
6R3−12580−00
FLUSHING KIT
Joint assembly
Loading…
↗
55
90445−11M36
FLUSHING KIT
Hose (l700)
Loading…
↗
56
90465−11M10
FLUSHING KIT
Clamp
Loading…
↗
57
68F−42753−00
Fastner
Loading…
↗
58
90464−20258
Clamp
Loading…
↗
59
6K7−42791−00
Mark 1
Loading…
↗
60
6A1−28176−00
Label, Caution
Loading…
↗
61
65L−2415E−60
Label, Caution
Loading…
↗
62
6E3−8257H−00
Plate, Mark
Loading…
↗
