25BMH (2007)
BOTTOM COWLING

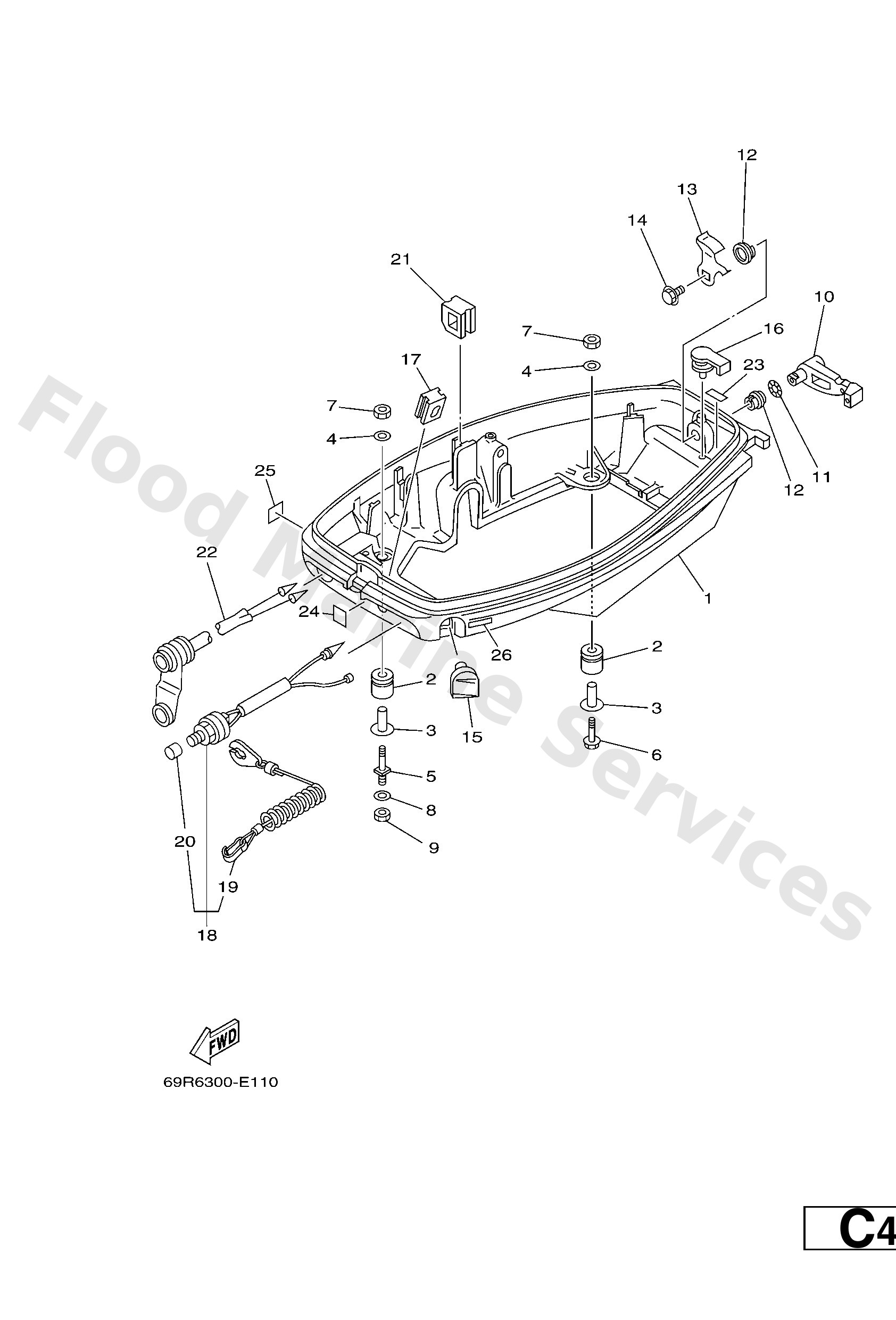

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68942711044D
Cowling, bottom 1
Loading…
↗
2
9048015M06
Grommet (689)
Loading…
↗
3
9038708M25
Collar (689)
Loading…
↗
4
9020108M87
Washer (6g0)
Loading…
↗
5
6G04279600
Bolt 1
Loading…
↗
6
9758508540
Bolt, with washer
Loading…
↗
7
9538008700
Nut(661)
Loading…
↗
8
9299008600
Washer, plain (663)
Loading…
↗
10
6894281500
Lever, clamp 1
Loading…
↗
11
9020612052
Washer, wave (666)
Loading…
↗
12
9038612069
Bush(666)
Loading…
↗
13
6894281600
Lever, clamp 2
Loading…
↗
14
9011906M73
Bolt(gh1)
Loading…
↗
15
6894272501
Grommet
Loading…
↗
16
6474252300
Spacer, friction
Loading…
↗
17
61N2632600
Grommet
Loading…
↗
18
6E98257502
Engine stop switch assembly
Loading…
↗
19
6828255600
Lanyard, stop switch
Loading…
↗
20
6898257Y00
Cap
Loading…
↗
21
9048017M08
Grommet (689)
Loading…
↗
22
6828438100
2p concent 1
Loading…
↗
23
6E74279110
Mark 1
Loading…
↗
24
6A14279201
Mark (100)1)
Loading…
↗
25
6A12817600
Label, Caution
Loading…
↗
26
6E38257H00
Plate, Mark
Loading…
↗
