25NMHO (2012)
BOTTOM COWLING

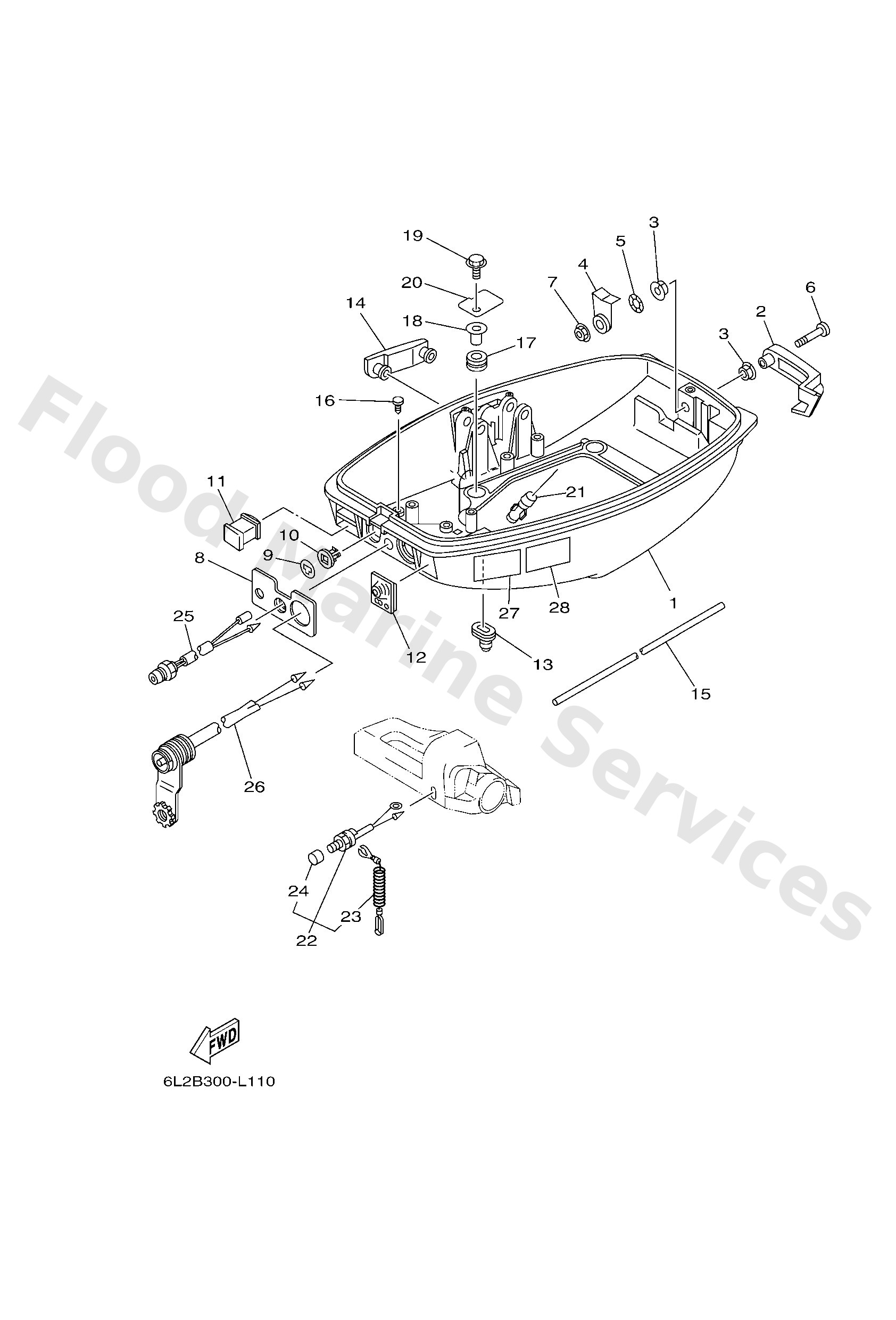

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6L242711034D
Cowling, bottom 1
Loading…
↗
2
6L242815014D
Lever, clamp
Loading…
↗
3
9038612M45
Bushing (6g1)
Loading…
↗
4
6L24281600
Lever, clamp
Loading…
↗
5
9020612052
Washer, wave (666)
Loading…
↗
6
9788006035
Screw, pan head(6h4)
Loading…
↗
7
9578006300
Nut, nylon (6g1)
Loading…
↗
8
6L242719A0
Panel, front lower
Loading…
↗
9
6894127300
Grommet
Loading…
↗
10
6J84127400
Grommet 2
Loading…
↗
11
6L24272500
Grommet
Loading…
↗
12
6L24272601
Grommet
Loading…
↗
13
6G14272700
Grommet
Loading…
↗
14
6L24274801
Grommet
Loading…
↗
15
6L24271600
Rubber seal 1
Loading…
↗
16
9033805M03
Plug (6h1)
Loading…
↗
17
9048015M31
Grommet (6g1)
Loading…
↗
18
9038706M52
Collar (6g1)
Loading…
↗
19
9589506020
Bolt, flange(jk3)
Loading…
↗
20
6L24273801
Plate, fitting
Loading…
↗
21
6BL4439100
Nipple, hose
Loading…
↗
22
6L28257500
Engine stop switch assembly
Loading…
↗
23
6828255600
Lanyard, stop switch
Loading…
↗
24
6898257Y00
Cap
Loading…
↗
25
6J88541000
O/I
Emergency signal light assembly
Loading…
↗
26
6828438100
2p concent 1
Loading…
↗
27
6AH4279440
Label, warning (ge
Loading…
↗
28
6AH4279450
Label, warning (ge
Loading…
↗
