30DMHO (2004)
BOTTOM COWLING

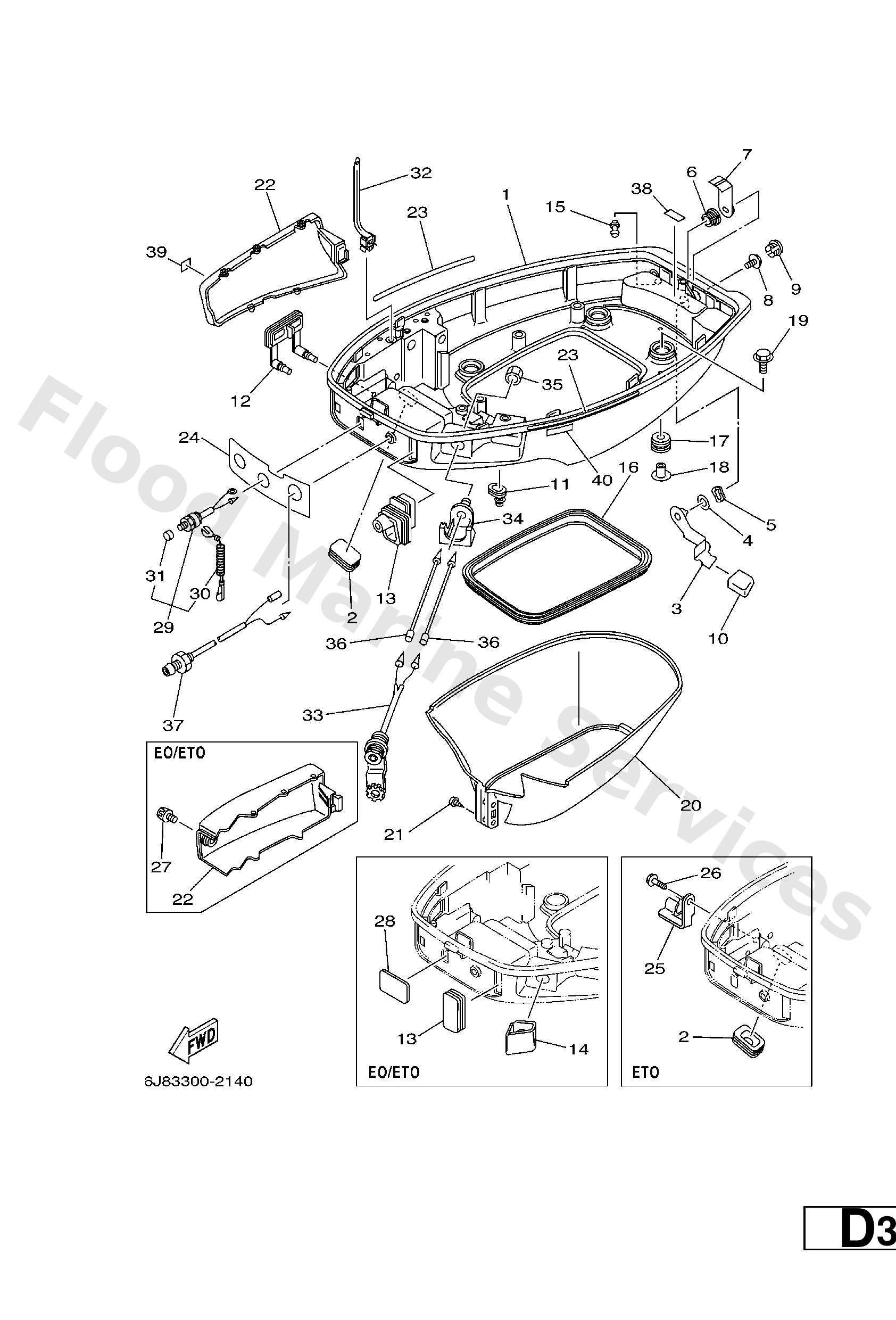

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6J842711034D
Cowling, bottom 1
Loading…
↗
2
6H44272600
Grommet
Loading…
↗
2
6884272610
Grommet
Loading…
↗
3
6J842815004D
Lever, clamp
Loading…
↗
4
9020212M25
Washer, plate(6j8)
Loading…
↗
5
9020612052
Washer, wave (666)
Loading…
↗
6
9038612M61
Bush(6j8)
Loading…
↗
7
6J84281600
Lever, clamp
Loading…
↗
8
9589506012
Bolt, flange deep recess
Loading…
↗
9
6J84272801
Cap
Loading…
↗
10
6J84283100
Bushing
Loading…
↗
11
6G14272700
Grommet
Loading…
↗
12
6J84272400
Grommet
Loading…
↗
13
6J84272600
Grommet
Loading…
↗
13
6J84272610
Grommet
Loading…
↗
14
6J84272501
Grommet
Loading…
↗
15
6H34439101
Nipple, hose
Loading…
↗
16
6J84271600
Rubber seal 1
Loading…
↗
17
9048009M21
Grommet (6e9)
Loading…
↗
18
9038706M41
Coller (6e9)
Loading…
↗
19
9011906M61
Bolt, with washer
Loading…
↗
20
6J84274101
Apron
Loading…
↗
21
9016406M01
Screw (6f5)
Loading…
↗
22
6J84272301
Cover, bottom
Loading…
↗
22
6J84272351
Cover, bottom (dbn:gray)
Loading…
↗
23
6J84273500
Protector
Loading…
↗
24
6J84271920
Panel, front lower
Loading…
↗
25
9046409M51
Clamp
Loading…
↗
26
9010906M86
Bolt
Loading…
↗
27
6J84284600
Screw
Loading…
↗
28
6J84272620
Grommet
Loading…
↗
29
6898257504
Engine stop switch assembly
Loading…
↗
30
6828255600
Lanyard, stop switch
Loading…
↗
31
6898257Y00
Cap
Loading…
↗
32
9046513M76
Clamp
Loading…
↗
33
6828438100
2p concent 1
Loading…
↗
34
6J88438700
Holder
Loading…
↗
35
6638255700
Nut
Loading…
↗
36
6J88255300
Extension, wire lead
Loading…
↗
37
6J88541000
Emergency signal light assembly
Loading…
↗
38
6E74279110
Mark 1
Loading…
↗
39
6A12817600
Label, Caution
Loading…
↗
40
6E38257H00
-
Loading…
↗
