30HMH (2002)
BOTTOM COWLING

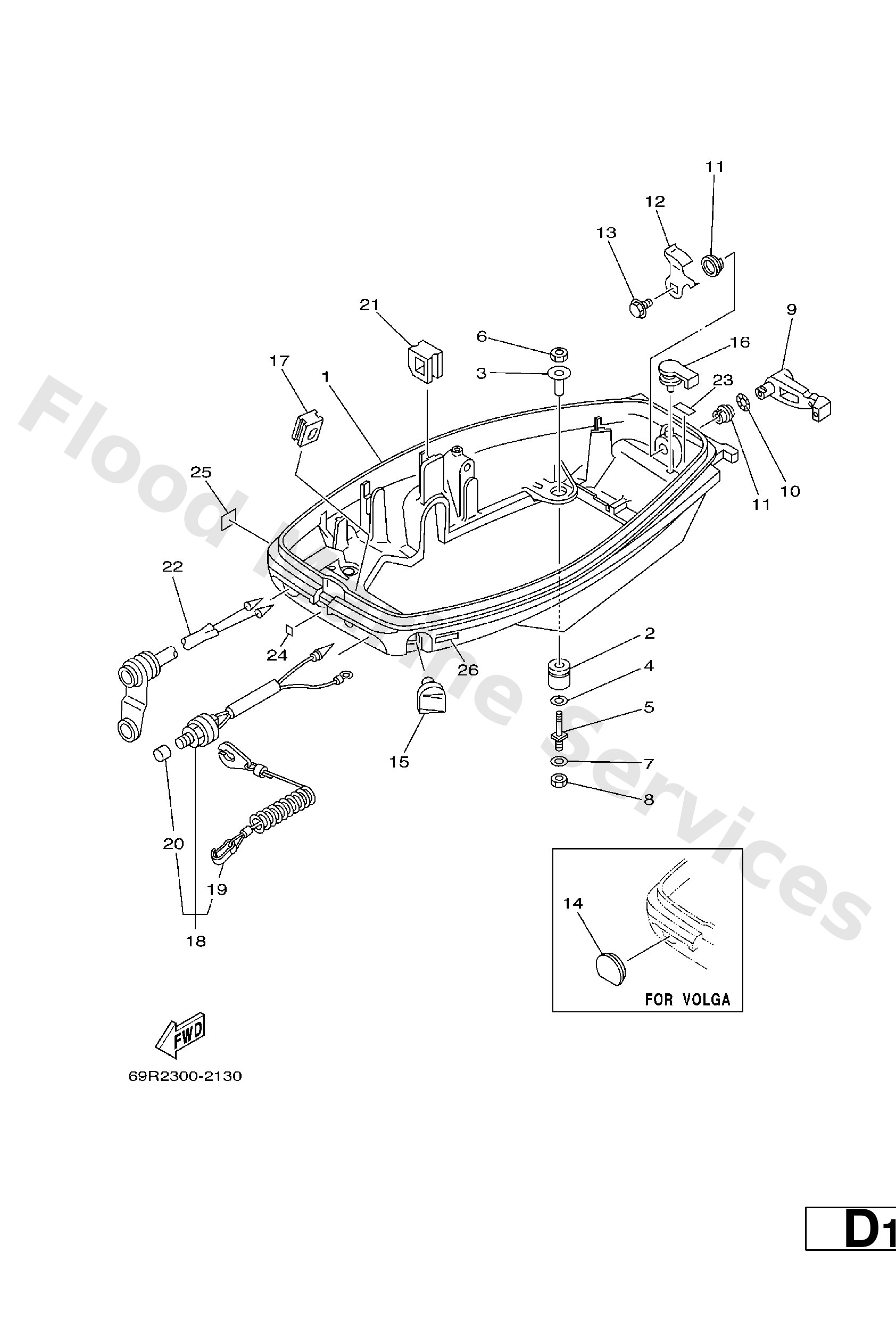

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
689--42711--04--4D
Cowling, bottom 1
Loading…
↗
2
90480--15M06
Grommet (689)
Loading…
↗
3
90387--08M25
Collar (689)
Loading…
↗
4
90201--08M87
Washer (6g0)
Loading…
↗
5
6G0--42796--00
Bolt 1
Loading…
↗
6
95380--08700
Nut(661)
Loading…
↗
7
92995--08600
Washer, plain (663)
Loading…
↗
9
689--42815--00
Lever, clamp 1
Loading…
↗
10
90206--12052
Washer, wave (666)
Loading…
↗
11
90386--12069
Bush(666)
Loading…
↗
12
689--42816--00
Lever, clamp 2
Loading…
↗
13
90119--06M73
Bolt(gh1)
Loading…
↗
14
682--42724--00
FOR VOLGA
Grommet
Loading…
↗
15
689--42725--01
Grommet
Loading…
↗
16
647--42523--00
Spacer, friction
Loading…
↗
17
61N--26326--00
Grommet
Loading…
↗
18
6E9--82575--02
Engine stop switch assembly
Loading…
↗
19
682--82556--00
Lanyard, stop switch
Loading…
↗
20
689--8257Y--00
Cap
Loading…
↗
21
90480--17M08
EXCEPT FOR VOLGA
Grommet (689)
Loading…
↗
22
682--84381--00
EXCEPT FOR VOLGA
2p concent 1
Loading…
↗
23
6E7--42791--10
Mark 1
Loading…
↗
23
6E74279100
FOR VOLGA
Mark 1
Loading…
↗
23
6G54279100
FOR VOLGA
Mark 1
Loading…
↗
24
6A14279201
EXCEPT FOR VOLGA
Mark (100)1)
Loading…
↗
25
6A1--28176--00
EXCEPT FOR VOLGA
Label, Caution
Loading…
↗
26
6E3--8257H--00
EXCEPT FOR VOLGA
Plate, Mark
Loading…
↗
