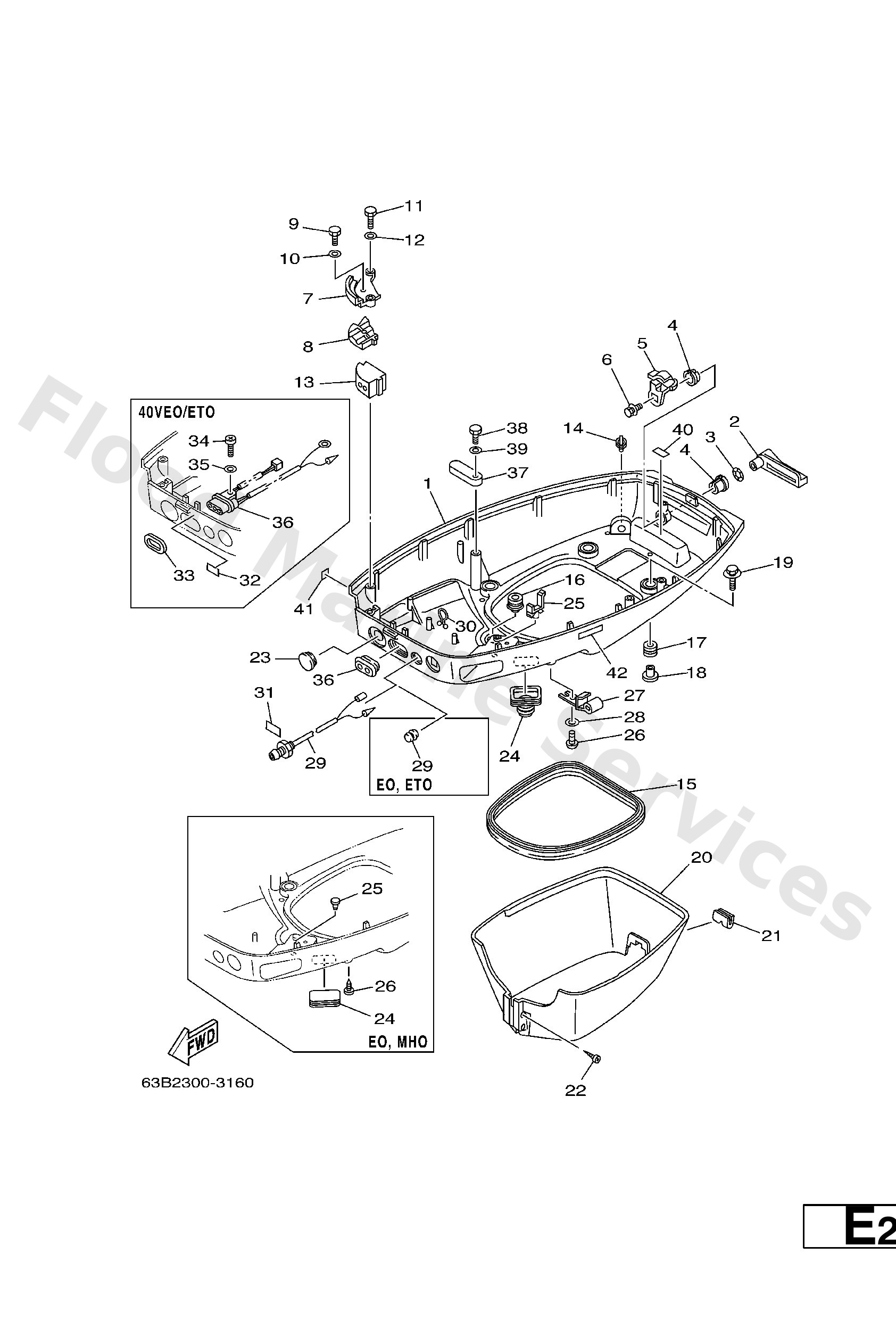

Diagram: BOTTOM COWLING

Diagram

Parts List

Reference
Description
Price


1
6H4−42711−07−4D
Cowling, bottom 1
Loading…

↗
1
6H4−42711−25−4D
Cowling, bottom
Loading…

↗
2
6H4−42815−00
Lever, clamp 1
Loading…

↗
3
90206−12052
Washer, wave (666)
Loading…

↗
4
90386−12069
Bush(666)
Loading…

↗
5
6H4−42816−00
Lever, clamp 2
Loading…

↗
6
90119−06M73
Bolt(gh1)
Loading…

↗
7
6H4−48531−11−94
Bracket, remote control 1
Loading…

↗
8
6H4−48532−11−94
Bracket, remote control 2
Loading…

↗
9
97095−05016
Bolt(6a1)
Loading…

↗
10
92995−05600
Washer, plain (646)
Loading…

↗
11
97095−06020
Bolt(7u8)
Loading…

↗
12
92995−06600
Washer, plain (646)
Loading…

↗
13
6H4−42724−20
Grommet
Loading…

↗
13
6H4−42724−00
Grommet
Loading…

↗
14
6E5−44391−00
Nipple, hose
Loading…

↗
15
6H4−42716−00
Rubber seal 1
Loading…

↗
16
6E5−42724−00
Grommet
Loading…

↗
17
90480−09M21
Grommet (6e9)
Loading…

↗
18
90387−06M41
Coller (6e9)
Loading…

↗
19
90119−06M61
Bolt, with washer
Loading…

↗
20
63D−42741−00−4D
Apron
Loading…

↗
21
63D−42717−00
Rubber, seal 2
Loading…

↗
22
97780−60525
Screw, tapping(65j)
Loading…

↗
23
6H4−42726−40
Grommet
Loading…

↗
23
676−42726−00
Grommet 3
Loading…

↗
24
688−42726−10
Grommet
Loading…

↗
24
6H4−42726−00
Grommet
Loading…

↗
25
90464−09M13
Clamp (6h1)
Loading…

↗
25
703−82119−00
Cover, lead wire
Loading…

↗
26
90157−06M01
Screw (6e5)
Loading…

↗
26
90338−05M03
Plug (6h1)
Loading…

↗
27
6E5−24367−01
Clamp, fuel pipe 2
Loading…

↗
35
92990−06600 40V
Washer, plain (646)
Loading…

↗
29
6H4−42725−00
Grommet 2
Loading…

↗
29
6J8−85410−00
Emergency signal light assembly
Loading…

↗
30
90464−08M07
Clamp
Loading…

↗
31
6H4−85415−10
Mark, signal lamp
Loading…

↗
32
63D−84342−00 40V
Seat, emblem
Loading…

↗
33
6H4−83589−00 40V
Gasket
Loading…

↗
34
97880−06014 40V
Screw, pan head(6h2)
Loading…

↗
36
63D−84301−00 40V
Pilot light assembly 1
Loading…

↗
36
6H3−42727−00 ”ETO”−40Y
Grommet
Loading…

↗
37
6E5−82588−00
Plate
Loading…

↗
40
6E7−42791−10 40V
Mark 1
Loading…

↗
40
6G5−42791−10 40Y
Mark 1
Loading…

↗
41
6A1−28176−00
Label, Caution
Loading…

↗
42
6E3−8257H−00
18 −
