40VMHO (2009)
BOTTOM COWLING

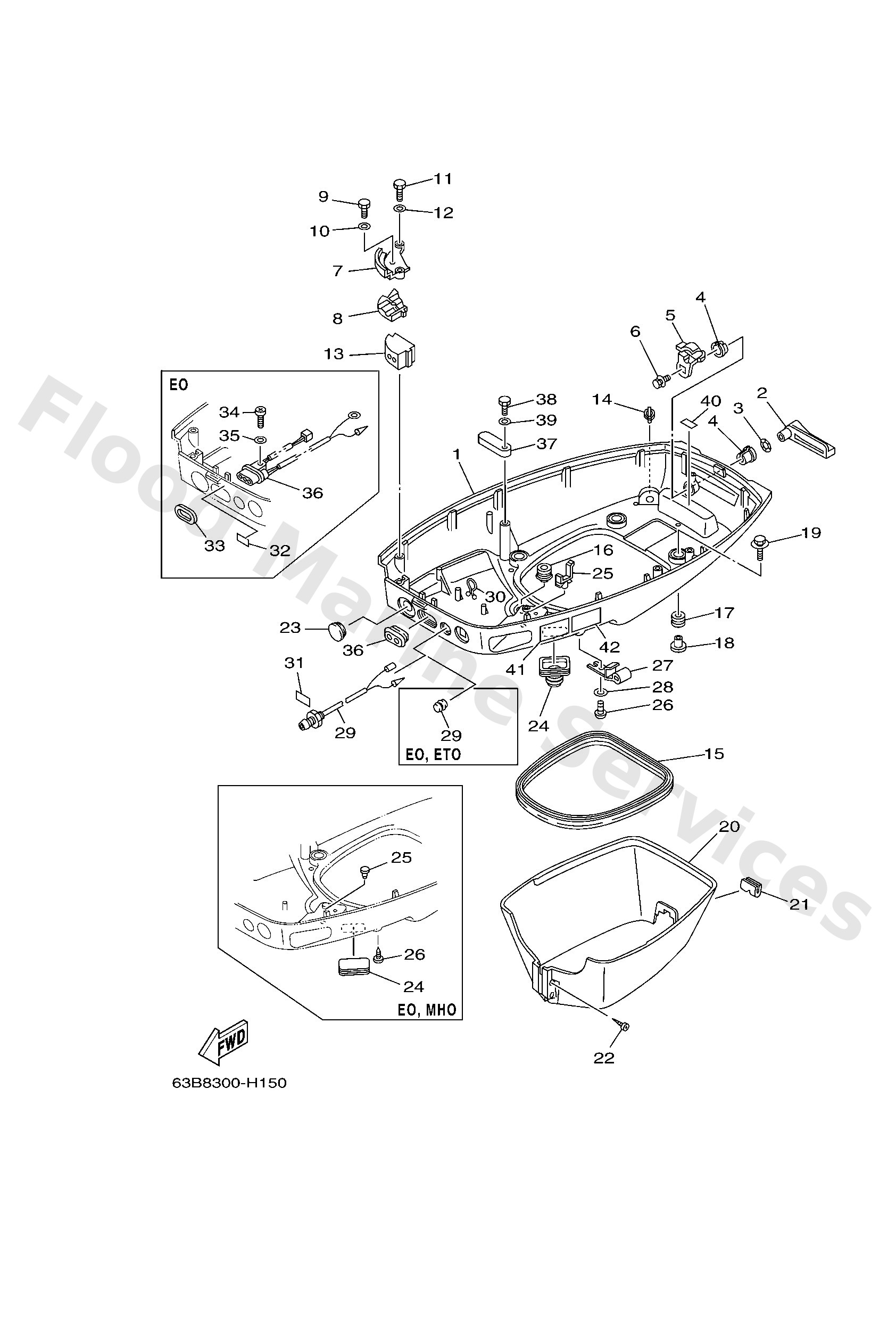

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H442711074D
Cowling, bottom 1
Loading…
↗
1
6H442711254D
Cowling, bottom
Loading…
↗
2
6H44281500
Lever, clamp 1
Loading…
↗
3
9020612052
Washer, wave (666)
Loading…
↗
4
9038612069
Bush(666)
Loading…
↗
5
6H44281600
Lever, clamp 2
Loading…
↗
6
9011906M73
Bolt(gh1)
Loading…
↗
7
6H4485311194
Bracket, remote control 1
Loading…
↗
8
6H4485321194
Bracket, remote control 2
Loading…
↗
9
9709505016
Bolt(6a1)
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
9709506020
Bolt(7u8)
Loading…
↗
12
9299506600
Washer, plain (646)
Loading…
↗
13
6H44272420
Grommet
Loading…
↗
13
6H44272400
Grommet
Loading…
↗
13
6H44272430
Grommet
Loading…
↗
14
6E54439100
Nipple, hose
Loading…
↗
15
6H44271600
Rubber seal 1
Loading…
↗
16
6E54272400
Grommet
Loading…
↗
17
9048009M21
Grommet (6e9)
Loading…
↗
18
9038706M41
Coller (6e9)
Loading…
↗
19
9011906M61
Bolt, with washer
Loading…
↗
20
63D42741004D
Apron
Loading…
↗
21
63D4271700
Rubber, seal 2
Loading…
↗
22
9778060525
Screw, tapping(65j)
Loading…
↗
23
6H44272640
Grommet
Loading…
↗
23
6764272600
Grommet 3
Loading…
↗
24
6884272610
Grommet
Loading…
↗
24
6H44272600
Grommet
Loading…
↗
25
9046409M13
Clamp (6h1)
Loading…
↗
25
7038211900
Cover, lead wire
Loading…
↗
26
9015706M01
Screw (6e5)
Loading…
↗
26
9033805M03
Plug (6h1)
Loading…
↗
27
6E52436701
Clamp, fuel pipe 2
Loading…
↗
28
9299006600
Washer, plain (646)
Loading…
↗
29
6H44272500
Grommet 2
Loading…
↗
29
6J88541000
Emergency signal light assembly
Loading…
↗
30
9046408M07
Clamp
Loading…
↗
31
6H48541510
Mark, signal lamp
Loading…
↗
32
63D8434200
Seat, emblem
Loading…
↗
33
6H48358900
Gasket
Loading…
↗
34
9788006014
Screw, pan head(6h2)
Loading…
↗
36
63D8430100
Pilot light assembly 1
Loading…
↗
36
6H34272700
Grommet
Loading…
↗
37
6E58258800
Plate
Loading…
↗
40
6E74279110
40V
Mark 1
Loading…
↗
40
6G54279110
40Y
Mark 1
Loading…
↗
41
6AH4279440
Label, warning (ge
Loading…
↗
42
6AH4279450
Label, warning (ge
Loading…
↗
