40XMH (2014)
BOTTOM COWLING

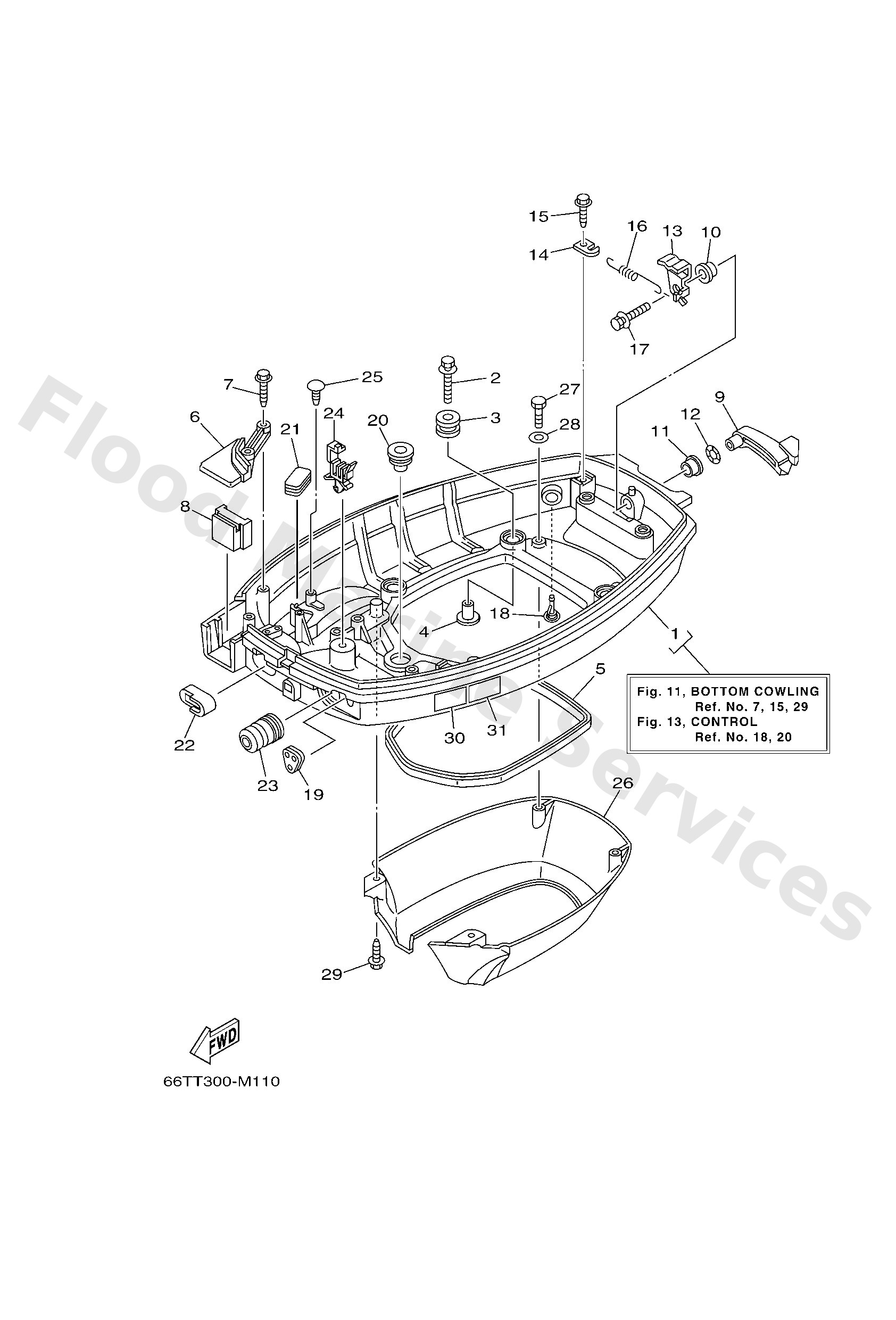

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
66T42710014D
Bottom cowling assembly
Loading…
↗
2
9011906M61
Bolt, with washer
Loading…
↗
3
9048009M21
Grommet (6e9)
Loading…
↗
4
9038706M41
Coller (6e9)
Loading…
↗
5
66T4271600
Rubber, seal 1
Loading…
↗
6
66T4273800CA
Plate, fitting
Loading…
↗
7
9010906M81
Bolt
Loading…
↗
8
66T4272500
Grommet
Loading…
↗
9
66T42815014D
Lever, clamp
Loading…
↗
10
9038612M37
Bushing (6f5)
Loading…
↗
11
9038612MA2
Bush
Loading…
↗
12
9020612052
Washer, wave (666)
Loading…
↗
13
66T4281600
Lever, clamp
Loading…
↗
14
66T4314400
Hook, spring
Loading…
↗
15
9010906M86
Bolt
Loading…
↗
16
9050616M34
Spring, tension(64d)
Loading…
↗
17
9011906M73
Bolt(gh1)
Loading…
↗
18
6E54439100
Nipple, hose
Loading…
↗
19
65W2632600
Grommet
Loading…
↗
20
6764272700
Grommet 4
Loading…
↗
21
6H44272600
Grommet
Loading…
↗
22
66T2432900
Seal
Loading…
↗
23
65W4272600
Grommet
Loading…
↗
24
9046525M57
Clamp(63v)
Loading…
↗
25
9033805M03
Plug (6h1)
Loading…
↗
26
66T4274100
Apron
Loading…
↗
27
9709506016
Bolt, hexagon deep recess
Loading…
↗
28
9299506600
Washer, plain (646)
Loading…
↗
29
9010906M80
Bolt
Loading…
↗
30
6AH4279440
Label, warning (ge
Loading…
↗
31
6AH4279450
Label, warning (ge
Loading…
↗
