4ACMH (2003)
BOTTOM COWLING

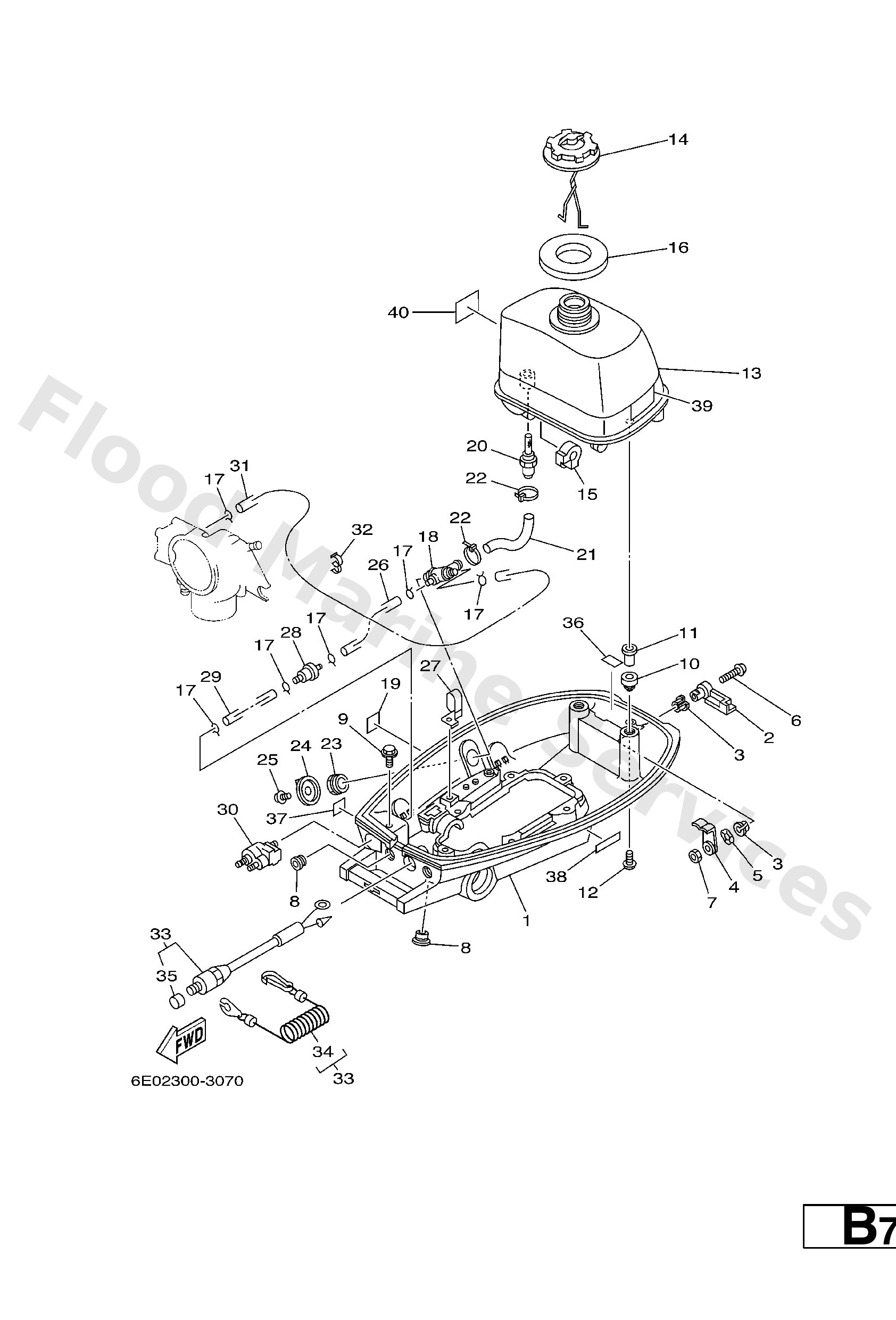

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6E0−42711−10−4D
Cowling bottom
Loading…
↗
2
6E0−42815−00−4D
Lever, clamp
Loading…
↗
3
90386−12069
Bush(666)
Loading…
↗
4
6E0−42816−00
Lever, clamp
Loading…
↗
5
90206−12052
Washer, wave (666)
Loading…
↗
6
97885−06030
Screw, pan head(6e0)
Loading…
↗
7
95380−06700
Nut
Loading…
↗
8
90480−14M14
Grommet (6e0)
Loading…
↗
9
95895−06020
Bolt, flange(jk3)
Loading…
↗
10
6E0−24182−00
Damper, locating 2
Loading…
↗
10
6E3−24182−00
Damper, locating 2
Loading…
↗
11
6E0−42542−00
Pipe 1
Loading…
↗
12
95895−06025
Bolt, flange deep recess
Loading…
↗
13
6E0−24110−01−4D
Fuel Tank Comp.
Loading…
↗
14
6E0−24610−02
Cap assembly
Loading…
↗
15
6E0−24181−00
Damper, locating 1
Loading…
↗
16
6E0−24641−00
Gasket, cap
Loading…
↗
16
6E3−24641−00
Gasket, cap
Loading…
↗
17
90467−08004
Clip, pipe 6162435600
Loading…
↗
18
6E0−24500−10
Fuel cock assembly 1
Loading…
↗
19
6E0−24591−10
Emblem, fuel cock
Loading…
↗
20
6E0−24335−00
Pipe, suction 1
Loading…
↗
21
6E0−24311−00
Pipe, fuel 1
Loading…
↗
22
90465−13M11
Clamp (6e5)
Loading…
↗
23
90170−16M35
Nut(6e0)
Loading…
↗
24
6J1−24524−00
Lever, cock
Loading…
↗
25
90159−04M24
Screw, pan head (e56)
Loading…
↗
26
90445−09M27
Hose (l180)
Loading…
↗
27
90465−08M62
Clamp(6e0)
Loading…
↗
28
646−24251−02
Strainer 1
Loading…
↗
29
90445−09057
Hose (l180)
Loading…
↗
30
6G1−24304−02
Fuel pipe joint comp. 1
Loading…
↗
31
6E0−24312−00
Pipe 2
Loading…
↗
32
90464−09M21
Clamp(6j8)
Loading…
↗
33
6E0−82575−00
Engine stop switch assembly
Loading…
↗
34
682−82556−00
Lanyard, stop switch
Loading…
↗
35
689−8257Y−00
Cap
Loading…
↗
36
664−42791−10
Mark 1
Loading…
↗
37
6A1−28176−00
Label, Caution
Loading…
↗
38
6E3−8257H−00
Plate, Mark
Loading…
↗
39
6A1−83625−41
Mark 5
Loading…
↗
40
6A1−83625−51
15 −
