4CMH (2020)
BOTTOM COWLING

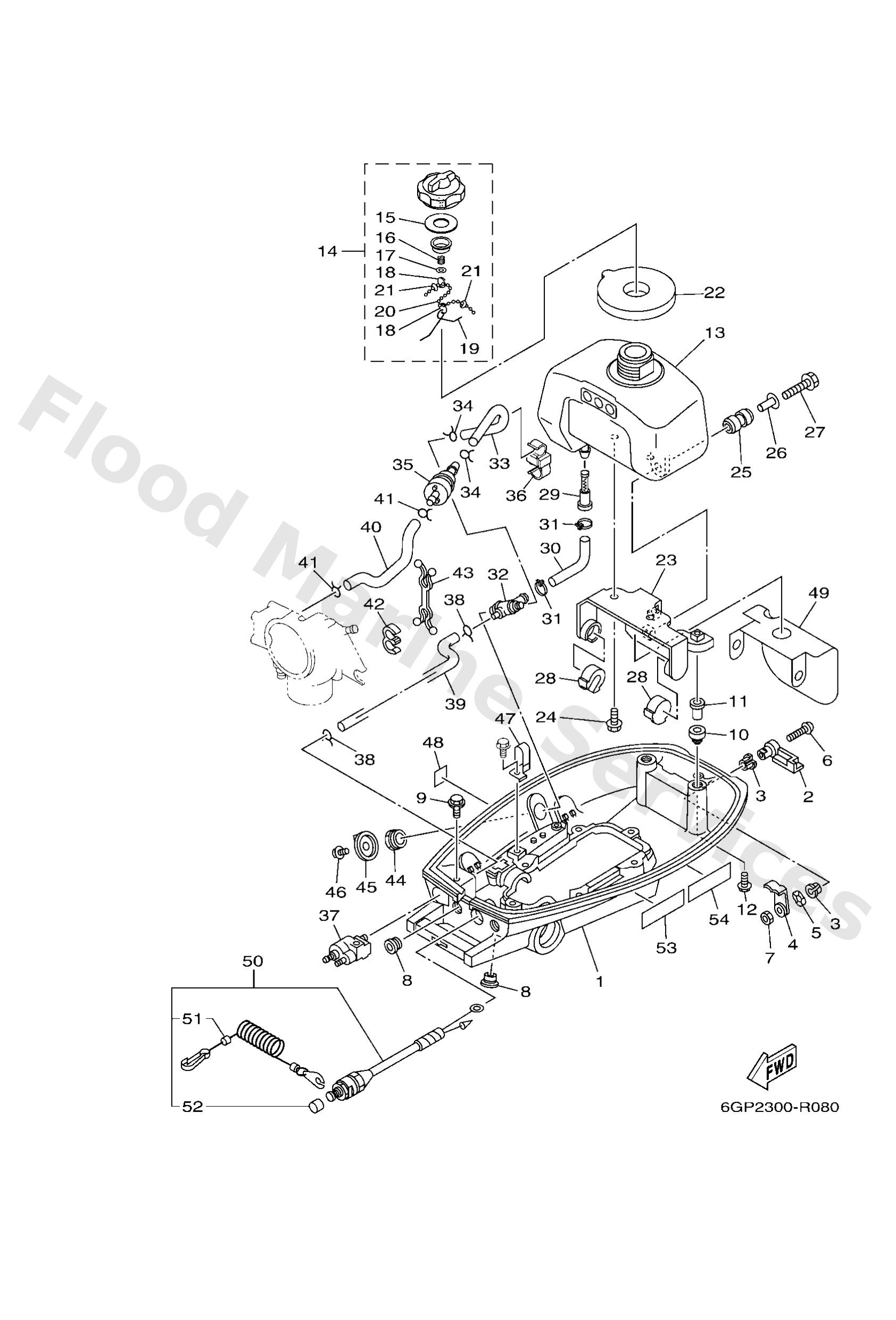

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6E042711108D
Cowling, bottom 1
Loading…
↗
2
6E042815008D
Lever, clamp
Loading…
↗
3
9038612069
Bush(666)
Loading…
↗
4
6E04281600
Lever, clamp
Loading…
↗
5
9020612052
Washer, wave (666)
Loading…
↗
6
9788506030
Screw, pan head(6e0)
Loading…
↗
7
9538006700
Nut
Loading…
↗
8
9048014M14
Grommet (6e0)
Loading…
↗
9
95D9506020
Bolt, flange deep recess
Loading…
↗
10
6E32418200
Damper, locating 2
Loading…
↗
11
6E04254200
Pipe 1
Loading…
↗
12
95D9506025
Bolt, flange deep recess
Loading…
↗
13
6E32411100
Tank, fuel
Loading…
↗
14
68D2461010
Cap assembly
Loading…
↗
15
68D2461200
Packing, cap
Loading…
↗
16
90501100A5
Spring, compression
Loading…
↗
17
9299004200
Ybs66-4 washer, plain
Loading…
↗
18
90468100A0
Clip
Loading…
↗
19
6242463400
Hook, chain ball
Loading…
↗
20
69M2463301
Chain, ball
Loading…
↗
21
67D2175700
Washer, special 1
Loading…
↗
22
6E32464110
Gasket, cap 1
Loading…
↗
23
6E32411500
Stay, fuel tank 1
Loading…
↗
24
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
25
6A08231700
Damper, ignition coil
Loading…
↗
26
9038706119
Collar
Loading…
↗
27
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
28
6E02418100
Damper, locating 1
Loading…
↗
29
6L52425100
Strainer 1
Loading…
↗
30
6E32431100
Pipe, fuel 1
Loading…
↗
31
9046513M11
Clamp (6e5)
Loading…
↗
32
6E02450010
Fuel cock assembly 1
Loading…
↗
33
6E32431400
Pipe 4
Loading…
↗
34
9046708004
Clip, pipe 6162435600
Loading…
↗
35
68T2425101
Strainer 1
Loading…
↗
36
9046412010
Clamp
Loading…
↗
37
6G12430410
Fuel pipe joint comp. 1
Loading…
↗
39
6E32431300
Pipe 3
Loading…
↗
40
6E32431500
Pipe 5
Loading…
↗
42
9046409M21
Clamp(6j8)
Loading…
↗
43
9046410M53
Clamp
Loading…
↗
44
9017016M35
Nut(6e0)
Loading…
↗
45
6J12452400
Lever, cock
Loading…
↗
46
9798004210
Screw, pan head (e56)
Loading…
↗
47
9046508M62
Clamp(6e0)
Loading…
↗
48
6E02459110
Emblem, fuel cock
Loading…
↗
49
6E32421700
Cover
Loading…
↗
50
6E08257500
Engine stop switch assembly
Loading…
↗
51
6828255600
Lanyard, stop switch
Loading…
↗
52
6898257Y00
Cap
Loading…
↗
53
6EE8199440
Label, safety
Loading…
↗
54
6EE8199450
Label, safety
