50GETO (2003)
BOTTOM COWLING

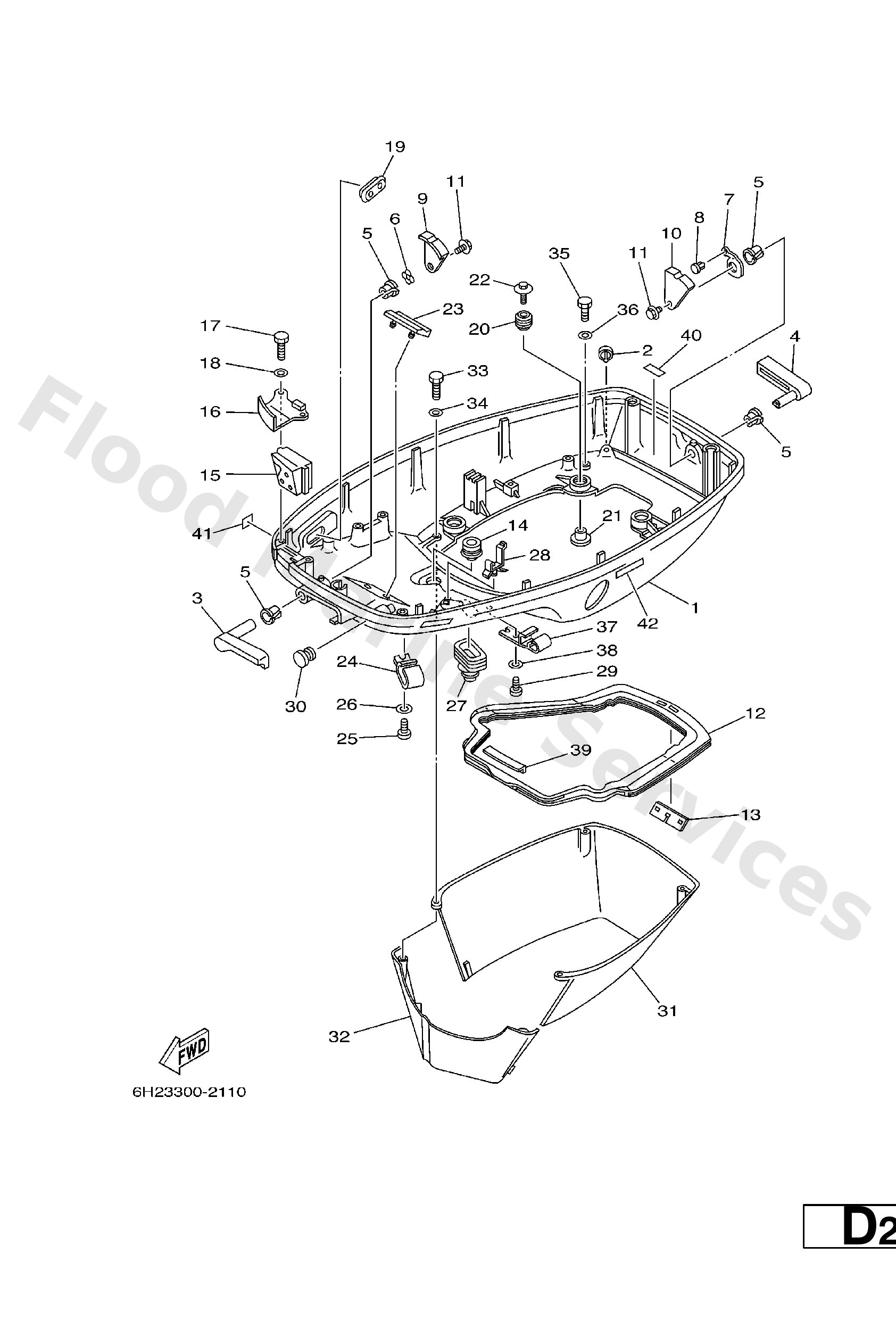

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H3−42711−24−4D
Cowling, bottom 1
Loading…
↗
2
6H3−44391−01
Nipple, hose
Loading…
↗
3
6H3−42815−01−4D
Lever, clamp
Loading…
↗
4
6H3−42817−01−4D
Lever, clamp
Loading…
↗
5
90386−13M38
Bushing (697)
Loading…
↗
6
90206−13M10
Washer, wave (6e5)
Loading…
↗
7
6H3−42813−00
Spring, clamp lever
Loading…
↗
8
90269−04M03
Rivet (6h3)
Loading…
↗
9
6H3−42816−00
Lever, clamp 2
Loading…
↗
10
6H3−42818−00
Lever, clamp 4
Loading…
↗
11
90119−06M09
Bolt, with washer
Loading…
↗
12
6H3−42716−02
Rubber, seal 1
Loading…
↗
13
6K5−42717−00
Rubber, seal 2
Loading…
↗
14
6E5−42724−00
Grommet
Loading…
↗
15
6H3−42725−30
UR
Grommet
Loading…
↗
15
6H3−42725−10
UR
Grommet
Loading…
↗
16
6H3−42738−01−5B
Plate, fitting
Loading…
↗
17
97095−06016
Bolt, hexagon deep recess
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
6H3−42727−00
Grommet
Loading…
↗
20
90480−09M12
Grommet (6a0)
Loading…
↗
21
90387−06M69
Collar (688)
Loading…
↗
22
90119−06M61
Bolt, with washer
Loading…
↗
23
6H3−42768−00
Damper
Loading…
↗
24
6E5−24367−01
Clamp, fuel pipe 2
Loading…
↗
25
90157−06M01
Screw (6e5)
Loading…
↗
26
92990−06600
Washer, plain (646)
Loading…
↗
27
688−42726−10
Grommet
Loading…
↗
28
90464−09M13
Clamp (6h1)
Loading…
↗
30
6G1−42748−00
Grommet
Loading…
↗
31
6H3−42741−01−4D
Apron
Loading…
↗
32
6H3−42771−01−4D
Apron
Loading…
↗
33
97095−06025
Bolt
Loading…
↗
35
97095−06020
Bolt(7u8)
Loading…
↗
39
6H3−42718−00
Rubber, seal 3
Loading…
↗
40
6G5−42791−10
Mark 1
Loading…
↗
41
6A1−28176−00
Label, Caution
Loading…
↗
42
6E3−8257H−00
18 −
