50HMHO (2021)
BOTTOM COWLING

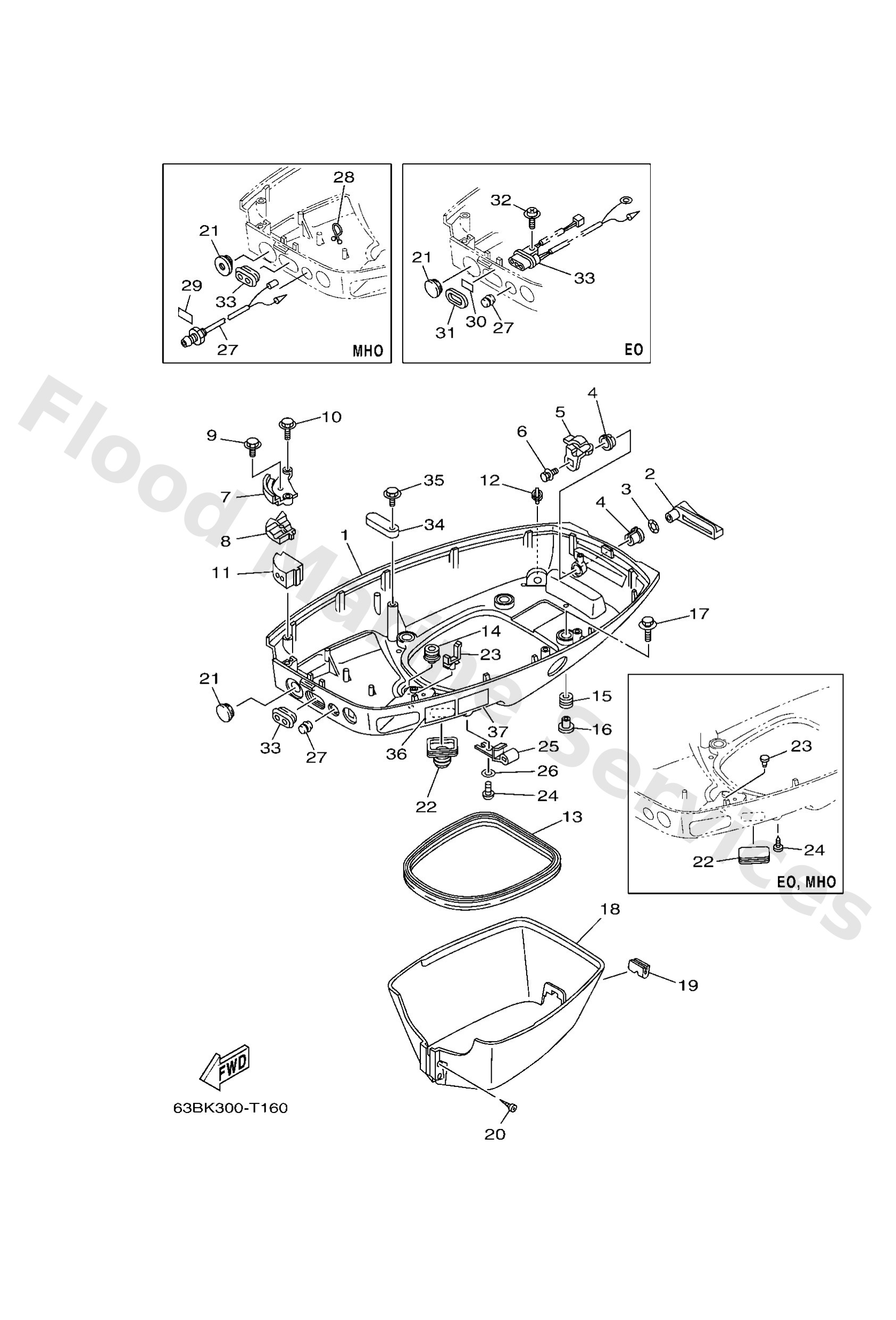

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H442711078D
Cowling, bottom 1
Loading…
↗
1
6H442711258D
-
Loading…
↗
2
6H44281500
Lever, clamp 1
Loading…
↗
3
9020612052
Washer, wave (666)
Loading…
↗
4
9038612069
Bush(666)
Loading…
↗
5
6H44281600
Lever, clamp 2
Loading…
↗
6
9011906273
Bolt, with washer
Loading…
↗
7
6H4485311194
Bracket, remote control 1
Loading…
↗
8
6H4485321194
Bracket, remote control 2
Loading…
↗
9
9759505516
Bolt, with washer
Loading…
↗
10
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
11
6H44272401
Grommet
Loading…
↗
11
6H44272421
Grommet
Loading…
↗
11
6H44272431
Grommet
Loading…
↗
12
6E54439100
Nipple, hose
Loading…
↗
13
6H44271601
Rubber seal 1
Loading…
↗
14
6E54272401
Grommet
Loading…
↗
15
9048009M21
Grommet (6e9)
Loading…
↗
16
9038706M41
Coller (6e9)
Loading…
↗
17
9011906291
Bolt, with washer
Loading…
↗
18
63D42741008D
Apron
Loading…
↗
19
63D4271700
Rubber, seal 2
Loading…
↗
20
9778060525
Screw, tapping(65j)
Loading…
↗
21
6764272600
Grommet 3
Loading…
↗
21
6H44272640
Grommet
Loading…
↗
22
6884272611
Grommet
Loading…
↗
22
6H44272601
Grommet
Loading…
↗
23
9046416021
Clamp (1j7)
Loading…
↗
23
7038211901
Cover, lead wire
Loading…
↗
24
9015706M01
Screw (6e5)
Loading…
↗
24
9033805M03
Plug (6h1)
Loading…
↗
25
6E52436701
Clamp, fuel pipe 2
Loading…
↗
26
9299006600
Washer, plain (646)
Loading…
↗
27
6H44272501
Grommet
Loading…
↗
27
6J88541000
Emergency signal light assembly
Loading…
↗
28
9046408M07
Clamp
Loading…
↗
29
6H48541510
Mark, signal lamp
Loading…
↗
30
63D8434200
Seat, emblem
Loading…
↗
31
6FM8358900
Gasket
Loading…
↗
32
9798006214
Screw, with washer
Loading…
↗
33
6H34272701
Grommet
Loading…
↗
33
63D8430100
Pilot light assembly 1
Loading…
↗
34
6E58258800
Plate
Loading…
↗
36
6EE4279440
Label, warning (general)
Loading…
↗
37
6EE4279450
Label, warning (general)
Loading…
↗
