5CMH (2010)
BOTTOM COWLING

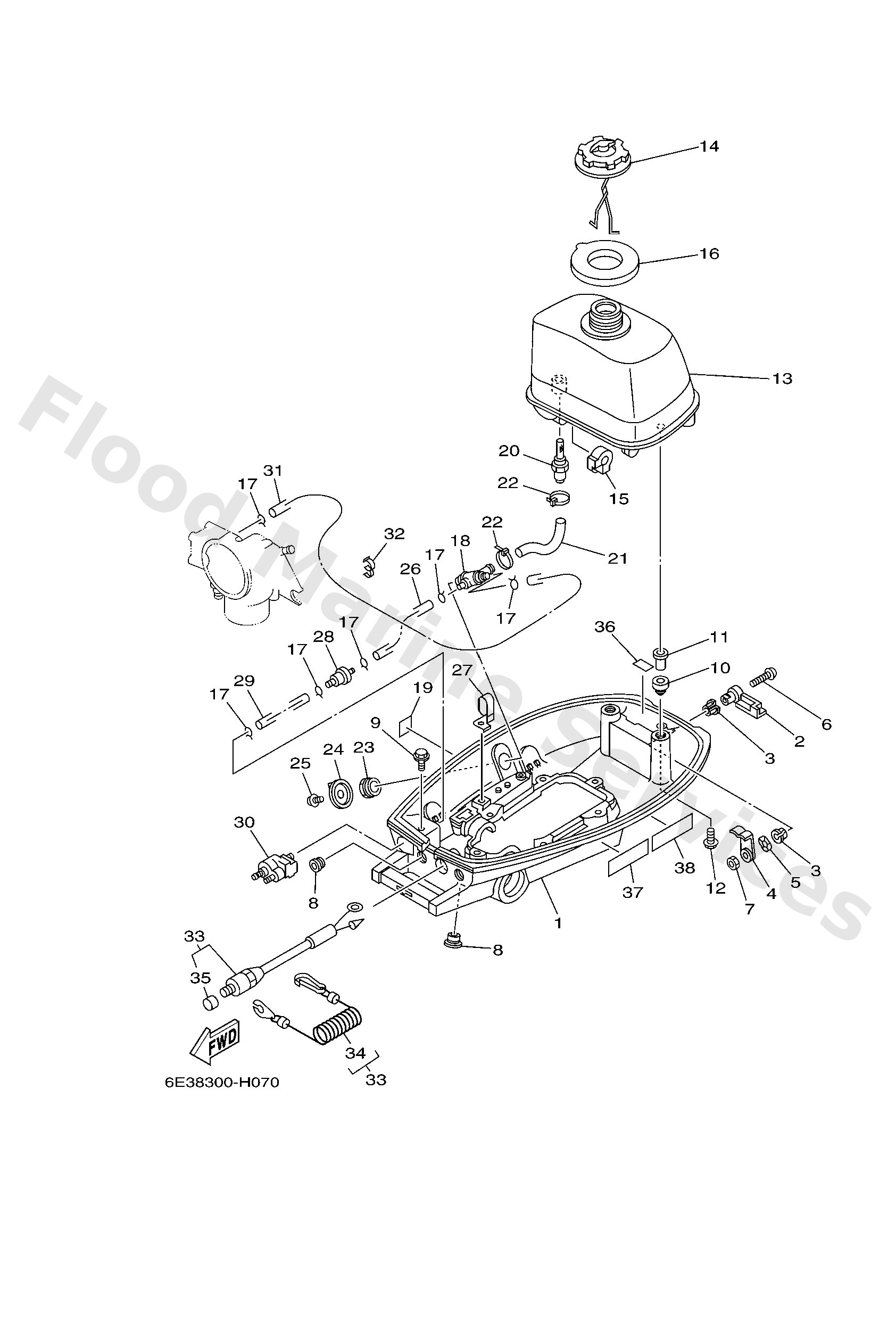

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6E042711104D
Cowling bottom
Loading…
↗
2
6E042815004D
Lever, clamp
Loading…
↗
3
9038612069
Bush(666)
Loading…
↗
4
6E04281600
Lever, clamp
Loading…
↗
5
9020612052
Washer, wave (666)
Loading…
↗
6
9788506030
Screw, pan head(6e0)
Loading…
↗
7
9538006700
Nut
Loading…
↗
8
9048014M14
Grommet (6e0)
Loading…
↗
9
9589506020
Bolt, flange(jk3)
Loading…
↗
10
6E32418200
Damper, locating 2
Loading…
↗
11
6E04254200
Pipe 1
Loading…
↗
12
9589506025
Bolt, flange deep recess
Loading…
↗
13
6E024110014D
Fuel Tank Comp.
Loading…
↗
14
6E02461002
Cap assembly
Loading…
↗
15
6E02418100
Damper, locating 1
Loading…
↗
16
6E32464100
Gasket, cap
Loading…
↗
17
9046708004
Clip, pipe 6162435600
Loading…
↗
18
6E02450010
Fuel cock assembly 1
Loading…
↗
19
6E02459110
Emblem, fuel cock
Loading…
↗
20
6E02433500
Pipe, suction 1
Loading…
↗
21
6E02431100
Pipe, fuel 1
Loading…
↗
22
9046513M11
Clamp (6e5)
Loading…
↗
23
9017016M35
Nut(6e0)
Loading…
↗
24
6J12452400
Lever, cock
Loading…
↗
25
9015904M24
Screw, pan head (e56)
Loading…
↗
26
9044509M27
Hose (l180)
Loading…
↗
27
9046508M62
Clamp(6e0)
Loading…
↗
28
6462425102
Strainer 1
Loading…
↗
29
9044509057
Hose (l180)
Loading…
↗
30
6G12430402
Fuel pipe joint comp. 1
Loading…
↗
31
6E02431200
Pipe 2
Loading…
↗
32
9046409M21
Clamp(6j8)
Loading…
↗
33
6E08257500
Engine stop switch assembly
Loading…
↗
34
6828255600
Lanyard, stop switch
Loading…
↗
35
6898257Y00
Cap
Loading…
↗
36
6644279110
Mark 1
Loading…
↗
37
6AH8199440
Label, safety
Loading…
↗
38
6AH8199450
Label, safety
Loading…
↗
