6DMH (2002)
BOTTOM COWLING

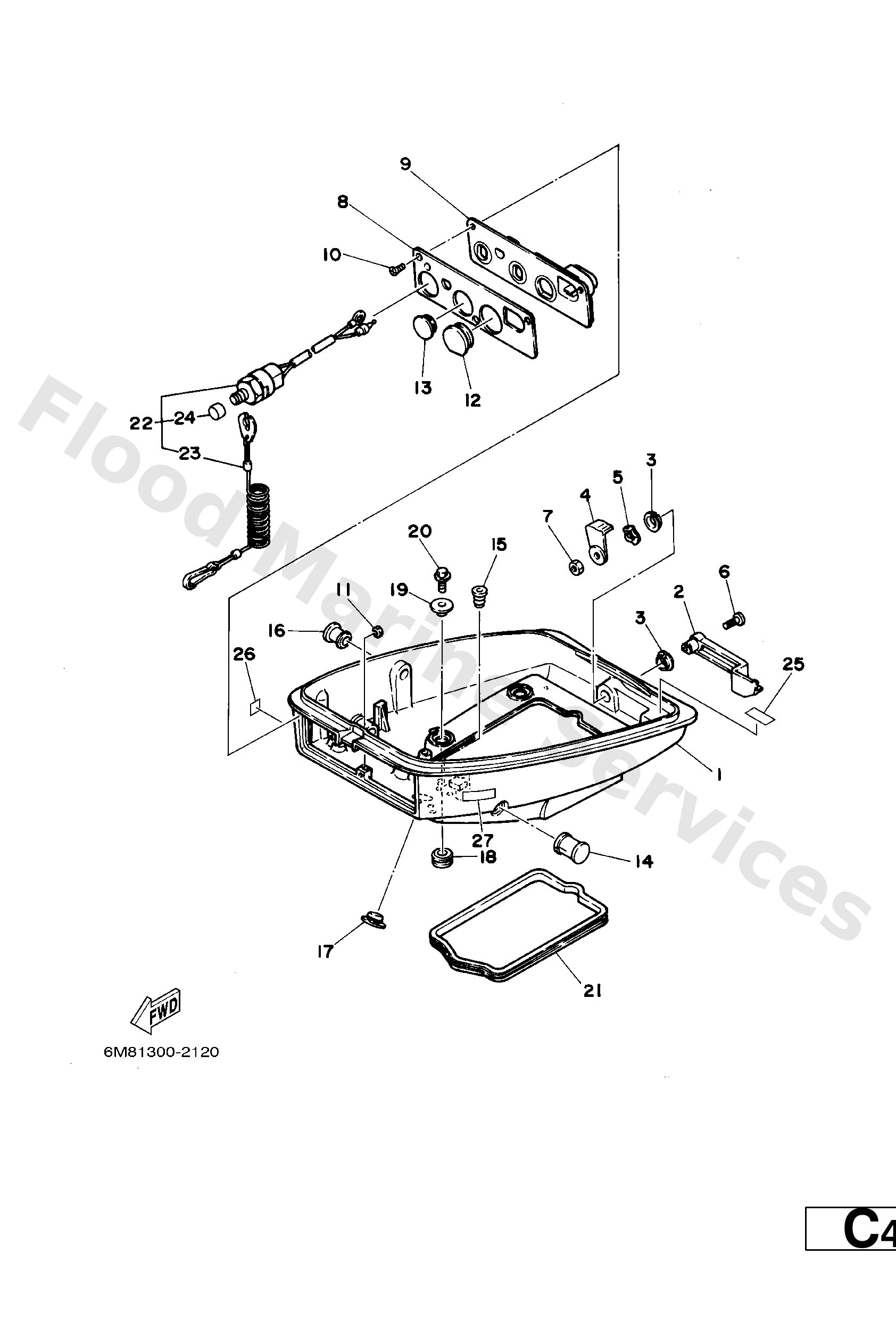

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
3
90386--12M45
Bushing (6g1)
Loading…
↗
4
6E0--42816--00
Lever, clamp
Loading…
↗
5
90206--12052
Washer, wave (666)
Loading…
↗
6
97885--06030
Screw, pan head(6e0)
Loading…
↗
7
95380--06700
Nut
Loading…
↗
8
6N0--G2719--80
Pannel front lower
Loading…
↗
9
6N0--G2767--00
Bracket 3
Loading…
↗
10
90149--05M02
Screw (6g1)
Loading…
↗
11
95380--05700
Nut (656)
Loading…
↗
12
6G14272400
Grommet
Loading…
↗
13
6G1--42725--00
Grommet
Loading…
↗
14
6G1--42726--00
Grommet 3
Loading…
↗
15
6G1--42727--00
Grommet
Loading…
↗
16
6G1--42748--00
Grommet
Loading…
↗
17
6G1--26326--00
Grommet
Loading…
↗
18
90480--15M31
Grommet (6g1)
Loading…
↗
19
90387--06M52
Collar (6g1)
Loading…
↗
20
95895--06020
Bolt, flange(jk3)
Loading…
↗
21
6N0--G2716--00
Rubber, seal 1
Loading…
↗
22
6E9--82575--02
Engine stop switch assembly
Loading…
↗
23
682--82556--00
Lanyard, stop switch
Loading…
↗
24
689--8257Y--00
Cap
Loading…
↗
25
6E7--42791--10
6C,8C
Mark 1
Loading…
↗
25
6H8--42791--10
6D
Mark 1
Loading…
↗
26
6N0--F8176--00
12 −
Loading…
↗
27
68D--H257H--00
Plate, Mark
