6DMH (2003)
BOTTOM COWLING

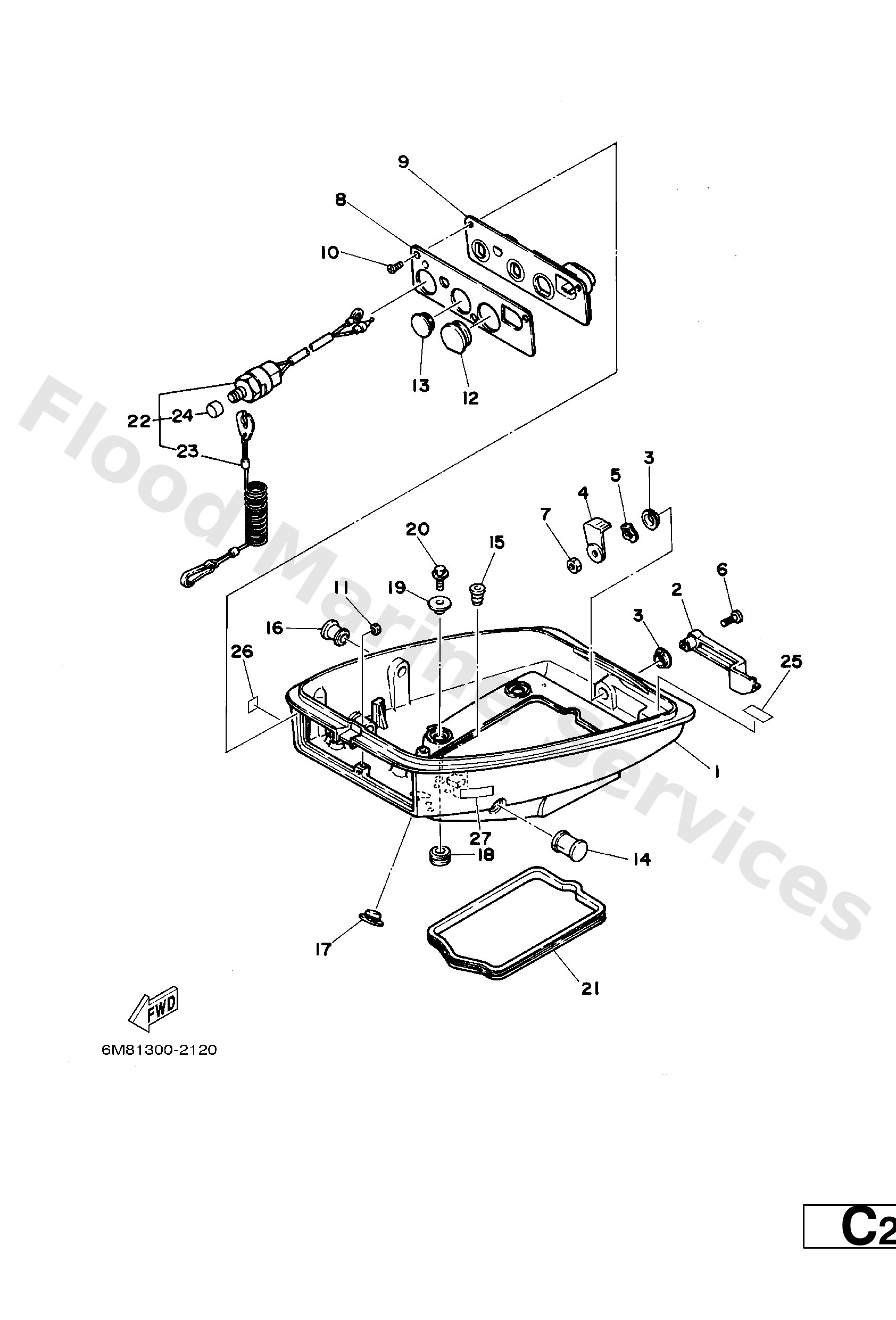

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
3
90386−12M45
Bushing (6g1)
Loading…
↗
4
6E0−42816−00
Lever, clamp
Loading…
↗
5
90206−12052
Washer, wave (666)
Loading…
↗
6
97885−06030
Screw, pan head(6e0)
Loading…
↗
7
95380−06700
Nut
Loading…
↗
8
6N0−G2719−80
Pannel front lower
Loading…
↗
9
6N0−G2767−00
Bracket 3
Loading…
↗
10
90149−05M02
Screw (6g1)
Loading…
↗
11
95380−05700
Nut (656)
Loading…
↗
12
6G1−42724−00
Grommet
Loading…
↗
13
6G1−42725−00
Grommet
Loading…
↗
14
6G1−42726−00
Grommet 3
Loading…
↗
15
6G1−42727−00
Grommet
Loading…
↗
16
6G1−42748−00
Grommet
Loading…
↗
17
6G1−26326−00
Grommet
Loading…
↗
18
90480−15M31
Grommet (6g1)
Loading…
↗
19
90387−06M52
Collar (6g1)
Loading…
↗
20
95895−06020
Bolt, flange(jk3)
Loading…
↗
21
6N0−G2716−00
Rubber, seal 1
Loading…
↗
22
6E9−82575−02
Engine stop switch assembly
Loading…
↗
23
682−82556−00
Lanyard, stop switch
Loading…
↗
24
689−8257Y−00
Cap
Loading…
↗
25
6E7−42791−10
Mark 1
Loading…
↗
25
6H8−42791−10
Mark 1
Loading…
↗
26
6N0−F8176−00
13 −
Loading…
↗
27
68D−H257H−00
Plate, Mark
Loading…
↗
