70BETO (2014)
BOTTOM COWLING

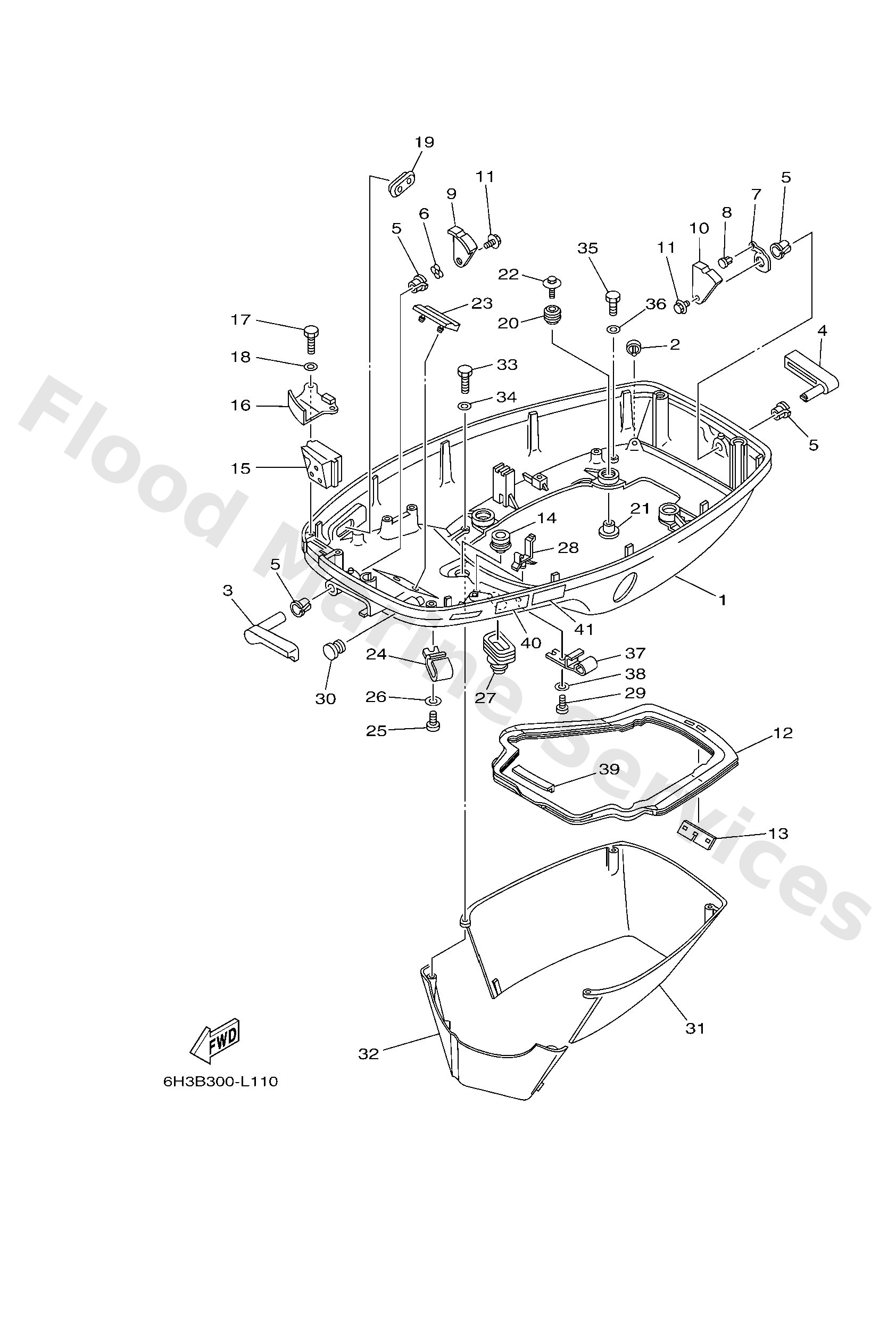

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H342711254D
Cowling, bottom 1
Loading…
↗
2
69D4439100
L(20.5")
Nipple, hose
Loading…
↗
3
6H342815014D
Lever, clamp
Loading…
↗
4
6H342817014D
Lever, clamp
Loading…
↗
5
9038613M38
Bushing (697)
Loading…
↗
6
9020613M10
Washer, wave (6e5)
Loading…
↗
7
6H34281300
Spring, clamp lever
Loading…
↗
8
9026904M03
Rivet (6h3)
Loading…
↗
9
6H34281600
Lever, clamp 2
Loading…
↗
10
6H34281800
Lever, clamp 4
Loading…
↗
11
9011906M09
Bolt, with washer
Loading…
↗
12
6H34271602
Rubber, seal 1
Loading…
↗
13
6K54271700
Rubber, seal 2
Loading…
↗
14
6E54272400
Grommet
Loading…
↗
15
6H34272530
Grommet
Loading…
↗
16
6H34273801CA
Plate, fitting
Loading…
↗
17
9709506016
Bolt, hexagon deep recess
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
19
6H34272700
Grommet
Loading…
↗
20
6BG4274800
Grommet
Loading…
↗
21
9038706M69
Collar (688)
Loading…
↗
22
9011906M61
Bolt, with washer
Loading…
↗
23
6H34276800
Damper
Loading…
↗
24
6E52436701
Clamp, fuel pipe 2
Loading…
↗
25
9015706M01
Screw (6e5)
Loading…
↗
26
9299006600
Washer, plain (646)
Loading…
↗
27
6884272610
Grommet
Loading…
↗
28
9046416021
Clamp (1j7)
Loading…
↗
30
6G14274800
Grommet
Loading…
↗
31
6H342741014D
Apron
Loading…
↗
32
6H342771014D
Apron
Loading…
↗
33
9709506025
Bolt
Loading…
↗
35
9709506020
Bolt(7u8)
Loading…
↗
39
6H34271800
Rubber, seal 3
Loading…
↗
40
6AH4279440
Label, warning (ge
Loading…
↗
41
6AH4279450
Label, warning (ge
Loading…
↗
