75AED (2006)
BOTTOM COWLING

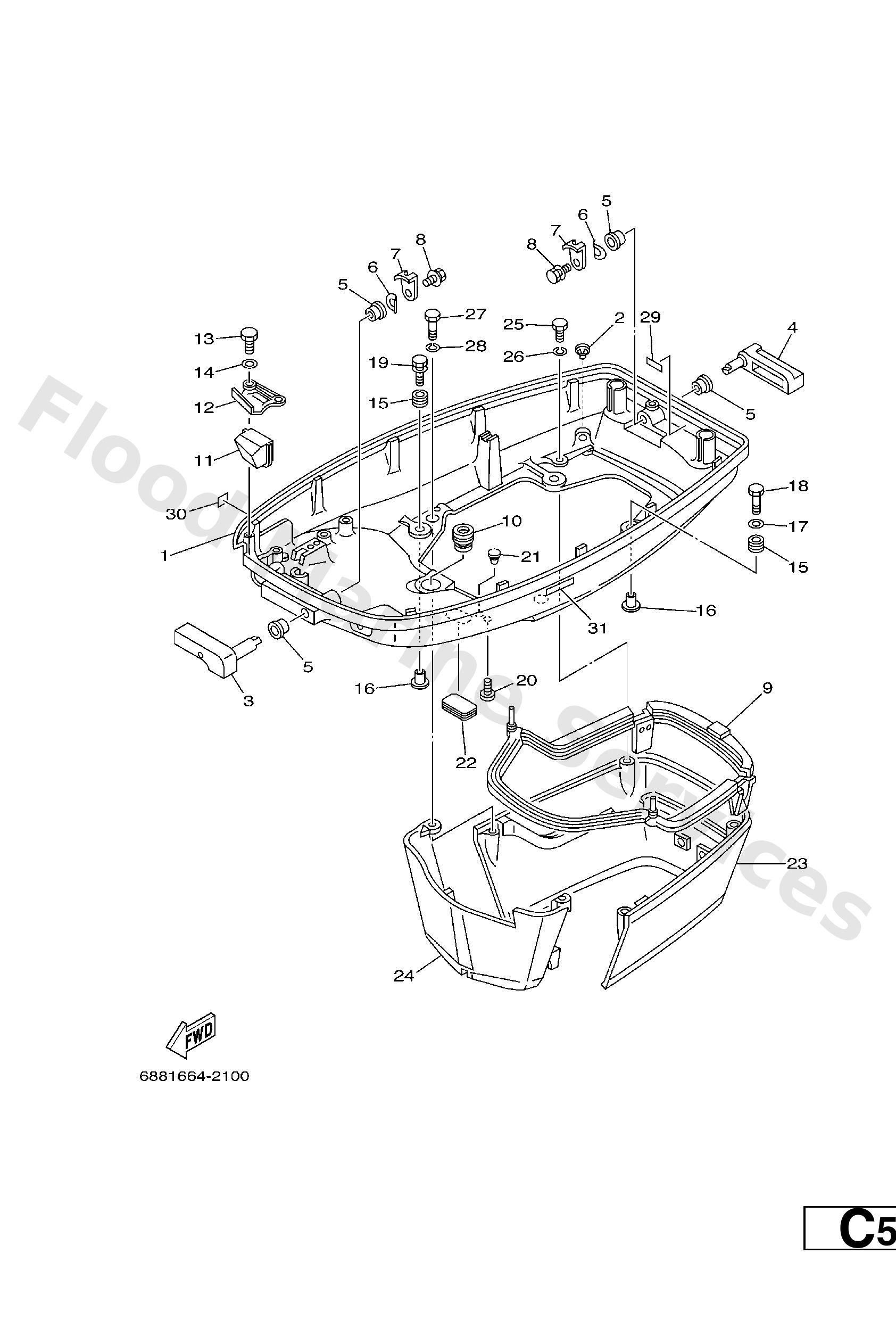

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
68842711044D
Cowling, bottom 1
Loading…
↗
2
6H34439101
Nipple, hose
Loading…
↗
3
68842815014D
Lever, clamp
Loading…
↗
4
68842817014D
Lever, clamp
Loading…
↗
5
9038613M38
Bushing (697)
Loading…
↗
6
9020613019
Washer, wave 6264283200
Loading…
↗
7
6884281600
Lever, clamp 2
Loading…
↗
8
9011906M09
Bolt, with washer
Loading…
↗
9
6884271602
Rubber seal 1
Loading…
↗
10
6634272400
Grommet
Loading…
↗
11
6884272502
Grommet
Loading…
↗
12
688427380194
Plate, fitting
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
9048009M12
Grommet (6a0)
Loading…
↗
16
9038706M69
Collar (688)
Loading…
↗
17
9020106416
Washer, plate(663)
Loading…
↗
18
9709506030
Bolt(jf7)
Loading…
↗
19
9011906M61
Bolt, with washer
Loading…
↗
20
9033805M03
Plug (6h1)
Loading…
↗
21
7038211900
Cover, lead wire
Loading…
↗
22
6H44272600
Grommet
Loading…
↗
23
68842741014D
Apron
Loading…
↗
24
68842771014D
Apron
Loading…
↗
25
9709506020
Bolt(7u8)
Loading…
↗
26
9299506100
Washer(6a1)
Loading…
↗
29
6G54279110
Mark 1
Loading…
↗
30
6A12817600
Label, Caution
Loading…
↗
31
6E38257H00
-
Loading…
↗
