75CETO (2010)
BOTTOM COWLING

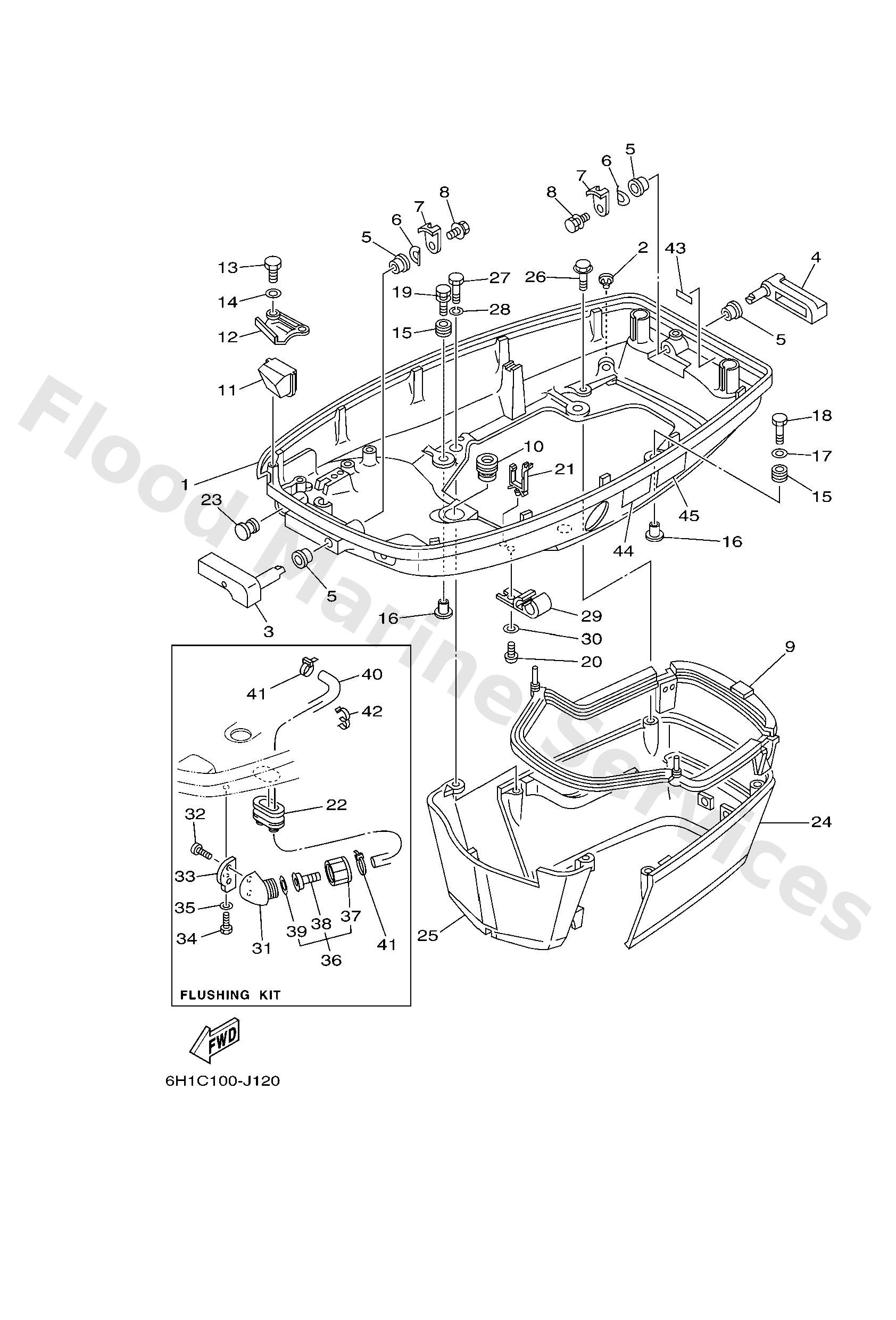

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6H142711108D
FLUSHING KIT
Cowling, bottom 1
Loading…
↗
2
6BL4439100
Nipple, hose
Loading…
↗
3
68842815018D
Lever, clamp
Loading…
↗
4
68842817018D
Lever, clamp
Loading…
↗
5
9038613M38
Bushing (697)
Loading…
↗
6
9020613019
Washer, wave 6264283200
Loading…
↗
7
6884281600
Lever, clamp 2
Loading…
↗
8
9011906M09
Bolt, with washer
Loading…
↗
9
6884271602
Rubber seal 1
Loading…
↗
10
6634272400
Grommet
Loading…
↗
11
6884272520
Grommet
Loading…
↗
12
68842738018D
Plate, fitting
Loading…
↗
13
9709506016
Bolt, hexagon deep recess
Loading…
↗
35
9299506600
FLUSHING KIT
Washer, plain (646)
Loading…
↗
15
6BG4274800
Grommet
Loading…
↗
16
9038706M69
Collar (688)
Loading…
↗
17
9020106416
Washer, plate(663)
Loading…
↗
18
9709506030
Bolt(jf7)
Loading…
↗
19
9011906M61
Bolt, with washer
Loading…
↗
20
9015706M01
Screw (6e5)
Loading…
↗
21
9046415M08
Clamp (6h1)
Loading…
↗
22
6H14272621
FLUSHING KIT
Grommet
Loading…
↗
23
6G14274800
Grommet
Loading…
↗
24
68842741018D
Apron
Loading…
↗
25
68842771018D
Apron
Loading…
↗
26
9759506420
Bolt(7u8)
Loading…
↗
28
9299506100
Washer(6a1)
Loading…
↗
29
6E52436701
Clamp, fuel pipe 2
Loading…
↗
30
9299006600
Washer, plain (646)
Loading…
↗
31
68T1257200
FLUSHING KIT
Adapter
Loading…
↗
32
9016706002
FLUSHING KIT
Screw, tapping
Loading…
↗
33
6H11253500
FLUSHING KIT
Plate
Loading…
↗
34
9709506020
FLUSHING KIT
Bolt(7u8)
Loading…
↗
36
6R31258000
FLUSHING KIT
Joint assembly
Loading…
↗
37
6R31258100
Joint, hose 1
Loading…
↗
38
6R31258200
Joint, hose 2
Loading…
↗
39
6R31258300
Gasket, hose joint
Loading…
↗
40
6H12431201
FLUSHING KIT
Pipe 2
Loading…
↗
41
9046511M10
FLUSHING KIT
Clamp
Loading…
↗
42
9046409M31
FLUSHING KIT
Clamp(6m7)
Loading…
↗
43
6G54279110
Mark 1
Loading…
↗
44
6AH4279440
Label, warning (ge
Loading…
↗
45
6AH4279450
Label, warning (ge
Loading…
↗
