8CMH (2010)
BOTTOM COWLING

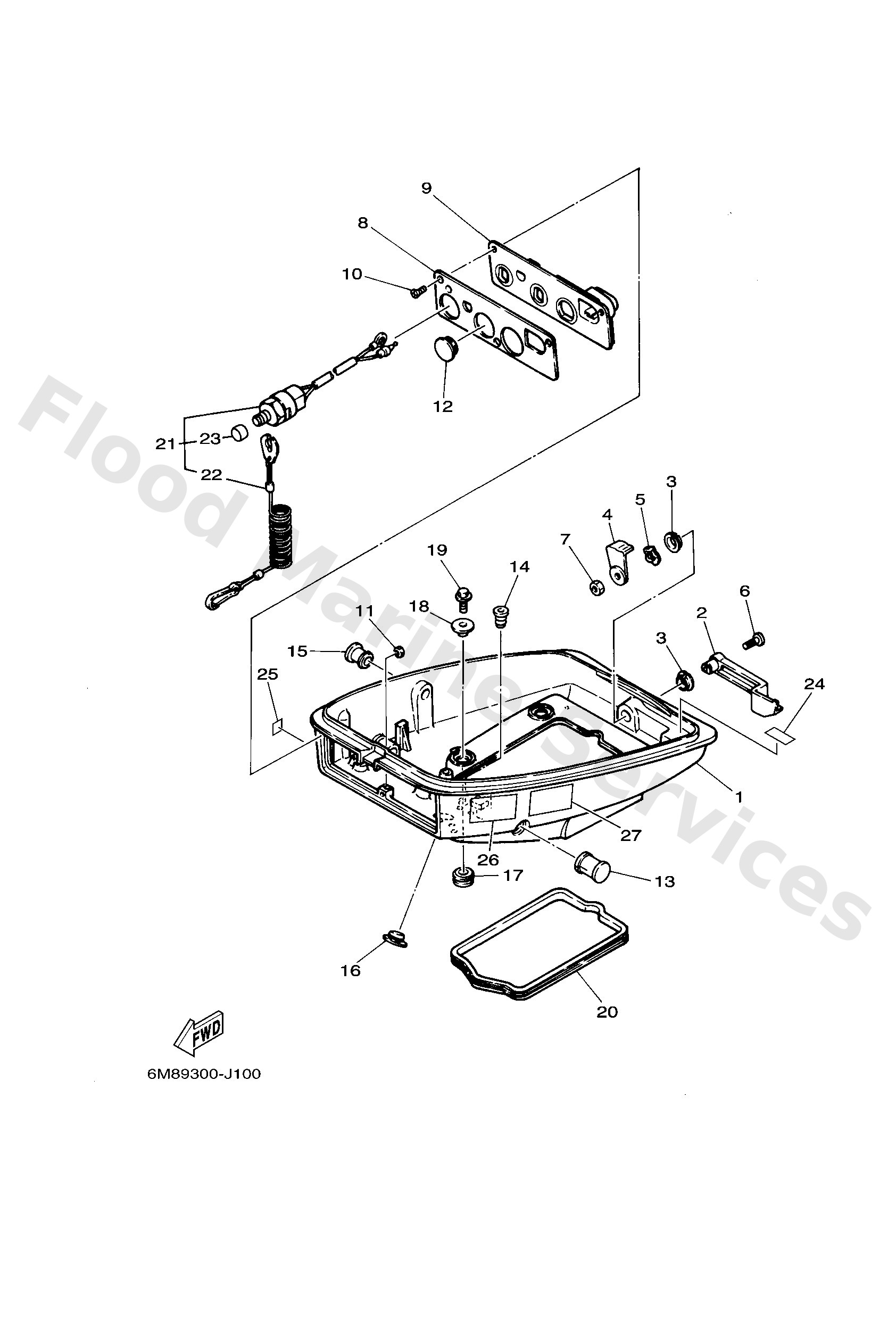

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
6N0G2711004D
Cowling, bottom 1
Loading…
↗
2
6N0G2815004D
Lever clamp
Loading…
↗
3
9038612M45
Bushing (6g1)
Loading…
↗
4
6E04281600
Lever, clamp
Loading…
↗
5
9020612052
Washer, wave (666)
Loading…
↗
6
9788506030
Screw, pan head(6e0)
Loading…
↗
7
9538006700
Nut
Loading…
↗
8
6N0G271980
Pannel front lower
Loading…
↗
9
6N0G276700
Bracket 3
Loading…
↗
10
9014905M02
Screw (6g1)
Loading…
↗
11
9538005700
Nut (656)
Loading…
↗
12
6G14272500
Grommet
Loading…
↗
13
6G14272600
Grommet 3
Loading…
↗
14
6G14272700
Grommet
Loading…
↗
15
6G14274800
Grommet
Loading…
↗
16
6G12632600
Grommet
Loading…
↗
17
9048015M31
Grommet (6g1)
Loading…
↗
18
9038706M52
Collar (6g1)
Loading…
↗
19
9589506020
Bolt, flange(jk3)
Loading…
↗
20
6N0G271600
Rubber, seal 1
Loading…
↗
21
6E98257502
Engine stop switch assembly
Loading…
↗
22
6828255600
Lanyard, stop switch
Loading…
↗
23
6898257Y00
Cap
Loading…
↗
24
6E74279110
Mark 1
Loading…
↗
25
6N0F817600
Label, Caution
Loading…
↗
26
6AH4279440
Label, warning (ge
Loading…
↗
27
6AH4279450
Label, warning (ge
Loading…
↗
