9.9FMH (2006)
BOTTOM COWLING

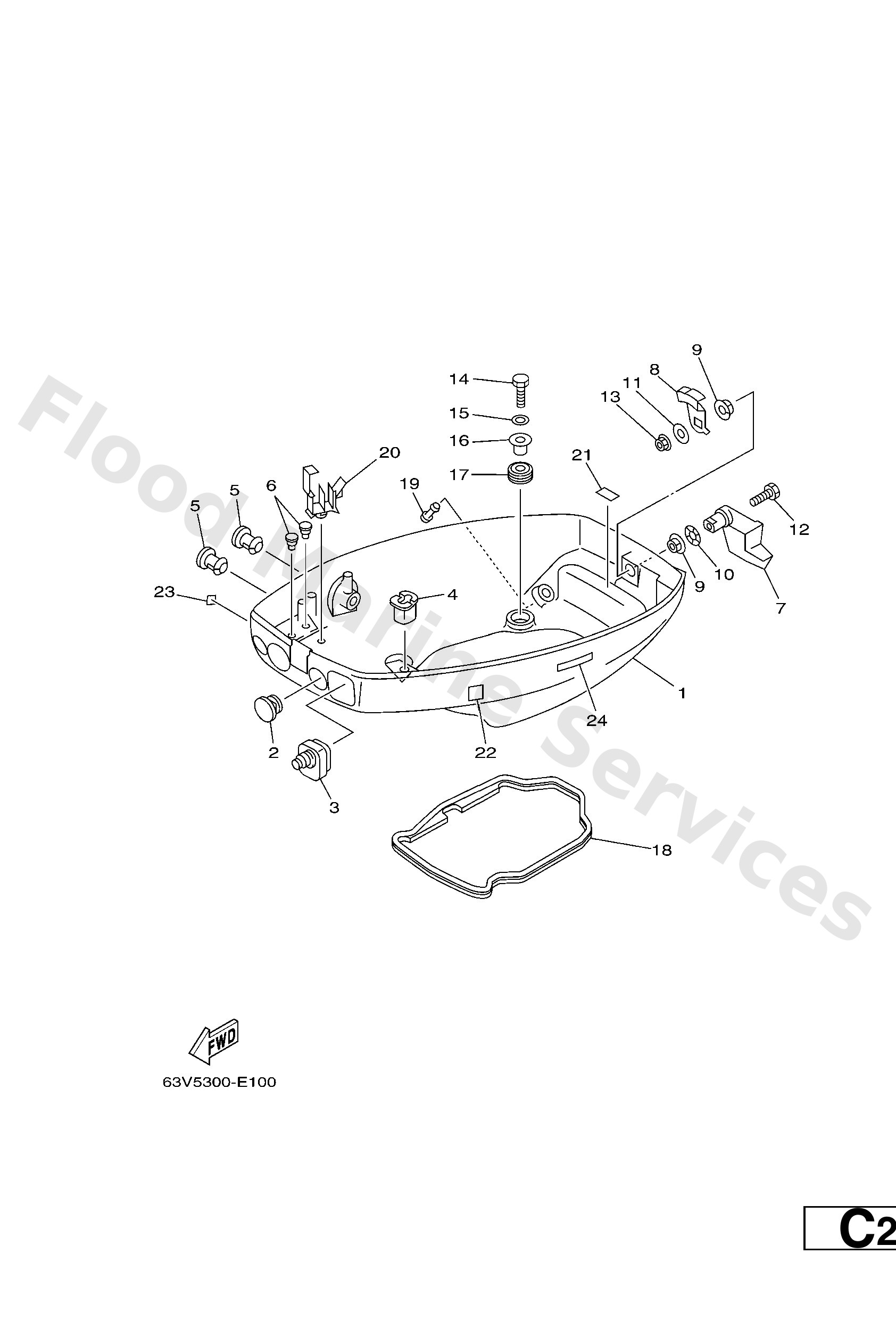

Diagram: BOTTOM COWLING
Parts List
Reference
Description
Price
1
63V42711034D
Cowling, bottom
Loading…
↗
2
6824272502
Grommet
Loading…
↗
3
63V4272600
Grommet
Loading…
↗
4
6824272700
Grommet
Loading…
↗
5
6G14274800
Grommet
Loading…
↗
6
9048006M19
Grommet (6e3)
Loading…
↗
7
63V42815014D
Lever, clamp
Loading…
↗
8
6E74281600
Lever, clamp 2
Loading…
↗
9
9038612M45
Bushing (6g1)
Loading…
↗
10
9020612052
Washer, wave (666)
Loading…
↗
11
9020106068
Washer,plate (6k8)
Loading…
↗
12
9709506025
Bolt
Loading…
↗
13
9538006700
Nut
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
9038706034
Collar (6g1)
Loading…
↗
17
9048015M31
Grommet (6g1)
Loading…
↗
18
63V4271602
Rubber, seal 1
Loading…
↗
19
6H34439101
Nipple, hose
Loading…
↗
20
9046525M57
Clamp(63v)
Loading…
↗
21
6E74279110
Mark 1
Loading…
↗
22
6A14279201
Mark (100)1)
Loading…
↗
23
6A12817600
Label, Caution
Loading…
↗
24
6E38257H00
Plate, Mark
Loading…
↗
